About the Kanto PDX650
Position your wall-mounted TV for optimal viewing
Position your wall-mounted TV for optimal viewing

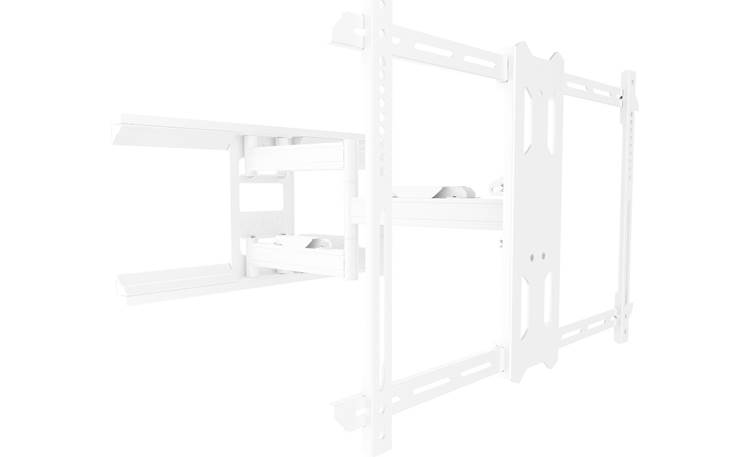

With its articulated arms fully retracted, the Kanto PDX650 mount holds your TV just 2" from the wall. Extended, it can hold your TV as far as 21-7/8" into your room. You can swivel your mounted TV 80° in either direction, depending on the size of the screen. You can also tilt your mounted TV up or down to avoid glare.
This solid steel mount has a durable powder coat finish. Raceways keep cables and cords securely fastened to the arms. The PDX650 can support TVs with screen sizes between 37" and 75" and weighing up to 125 lbs.
Product highlights:
- designed for TVs 37"-75"
- supports up to 125 lbs.
- articulated arms extends TV 2" to 21-7/8"
- swivel range: ±80°
- tilt range: -15° to +3°
- hollow raceways secure cables and cords to arms
- white cable sleeve included
- wall plate accommodates up to 16" stud spacing
- stud mounting required
- mounting hardware included
- solid steel construction with powder coated finish
- 23-5/8"W x 15-3/4"H x 2"-21-7/8"D
- weight: 22.5 lbs.
- warranty: 5 years
- Our 60-day money-back guarantee
- MFR # PDX650W
What's in the box:
- Wall-mount bracket w/ articulating arm assembly
- Center TV bracket
- 2 Vertical TV brackets
- 2 Horizontal TV brackets
- 4 Covers
- Four M5x12mm bolts
- Four M5x30mm bolts
- Four M6x16mm bolts
- Four M6x35mm bolts
- Four M8x20mm bolts
- Four M8x35mm bolts
- Four M8x50mm bolts
- Four 5mm spacers
- Four 10mm spacers
- Four 14mm spacers
- Four M5/M6 washers
- Four M8 washers
- Four M8x65mm lag-bolts
- 4 Anchors
- Hex-key
- Wrench
- User Manual
- Mounting Template
Reviews
Customer reviews
Loading reviews...
Kanto PDX650 reviews
Average review:
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Kanto PDX650
Features & specs
| Features | ||
|---|---|---|
| Mount Type | Wall Mount | |
| Motion | ||
| Tilt | Yes | |
| Swivel | Yes | |
| Extend/Retract | Yes | |
| Fixed | No | |
| Roll (Level) Adjustment | Yes | |
| Mounting Details | ||
| Wood Stud (Single) | No | |
| Wood Stud (Dual, 16-inch) | Yes | |
| Wood Stud (Dual, 24-inch) | No | |
| Concrete Block-compatible | Yes | |
| Recessed Housing | Yes | |
| Outdoor-rated | No | |
| Motorized | No | |
Product Research
Features
TV Compatibility: The Kanto PDX650 full-motion wall-mount bracket supports 37" to 75" flat-panel TVs that weigh up to 125 lbs. The TV must also meet the following VESA and screw size requirements.
- VESA Sizes: 100x100mm to 600x400mm
- Screw Size: M5, M6, or M8
Note: Additional hardware may be required for your specific model of TV. For example; shorter or longer screws, thicker or slimmer washers or spacers. These additional accessories can often be found at your local hardware store.
Solid Steel Construction: The Kanto PDX650 full-motion TV wall-mount bracket is constructed out of solid steel and features a powder-coated finish (available in black or white).
Full-Motion Design: The Kanto PDX650 features a full-motion design that accommodates a variety of TV viewing positions. The PDX650 offers extension, tilt, swivel, and roll adjustments.
- Extension: Even with its low-profile design the PDX650 can extend up to 21.8125" from the wall, giving you plenty of room for tilting and swiveling your TV, or for reaching out from alcoves. Its unique tilt head is designed to nestle into the frame, letting you push your flat-panel TV within 2" of the wall.
- Tilt: The accessible tilt mechanism makes it easy to angle your TV up to 15° forward or 3° backward. Once you've found the best viewing angle, tighten the nuts to secure your TV in place.
- Swivel: The wall-mount bracket's articulating arms allow you to pivot your TV up to 80° in either direction, depending on your TV size, allowing you to achieve the perfect viewing angle.
- Roll: You can also raise and lower (+/-3°) the the sides of the TV to make sure the TV is level once it is mounted on the wall.
Integrated Cable Management: Four cable management channels are attached to the bottom of the articulating arms. These are easily accessed by loosening a screw, twisting them to the side, laying in the cable, and re-inserting the screw. Route multiple cables down one side, or power and HDMI down opposite sides - whatever works best for your specific application.
Dual-Stud Installation: The Kanto PDX650 full-motion TV wall-mount bracket can accommodate 16" stud spacing, and comes with all the hardware you need for wood stud and concrete installation. Tools required for installation include -
- Drill
- 7/32" bit (wood), 3/8" bit (masonry)
- Socket wrench
- Phillips screwdriver
- Hammer
- Stud finder
- Level
- Pencil
- Tape Measure
Loading accessories...
Customer Q&A
3 questions already asked
Loading articles...
Very high quality TV mounting bracket. I have used Sanus in the past, but this one seems sturdier. Very flexible with a lot of adjustments. Not quite as easy to position as Sanus, as Sanus has a great online tool to help with the measurements. I would buy this again.
Keith from Apex, NC
