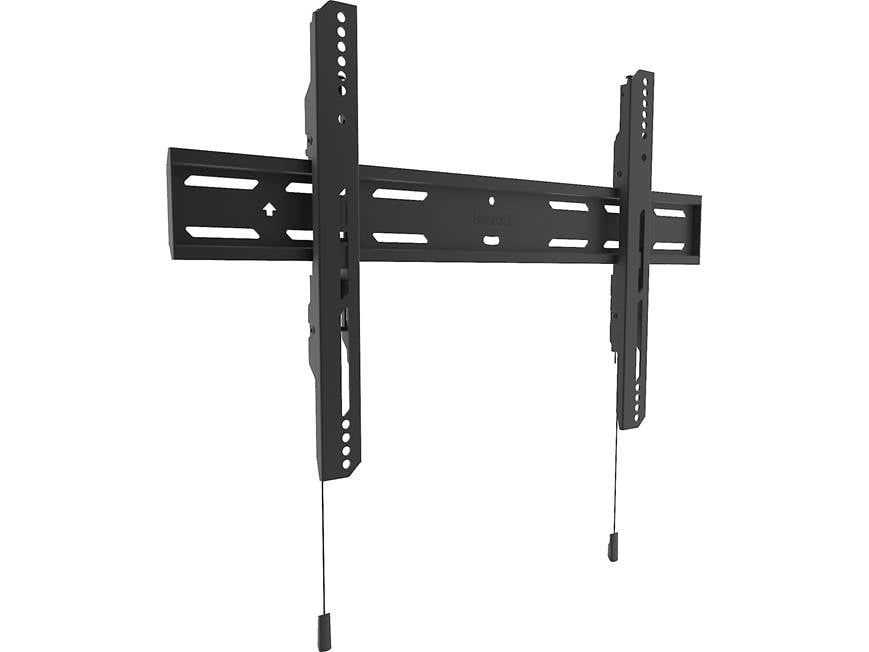

Kanto PF300 Low-profile fixed wall mount for 32"-90" TVs

Item # 310PF300

Item # 310PF300

In stock
C$69.99

About the Kanto PF300

Ralph Graves

Simple installation

The low-profile Kanto PF300 mount holds your TV less than 1-1/2" from the wall. Its wide wall plate accommodates both 16" and 24" stud spacing. A pair of screws let you make slight adjustments to level your TV horizontally after mounting. Quick release cords let you easily disconnect your TV from the wall plate. The cords have magnetic ends to keep them tucked away out of sight.

Product highlights:

  • designed for TVs 32"-90"
  • supports up to 150 lbs.
  • mount holds TV approximately 1-7/16" from wall
  • quick release cords with magnetic ends for storing out of sight
  • solid steel construction with powder-coated finish
  • accommodates VESA mounting hole patterns from 100 x 100mm to 600 x 400mm
  • stud-mounting required
    • accommodates both 16" and 24" stud spacing
  • 26-15/16"W x 16-3/4"H x 1-7/16"D
  • weight: 6 lbs.
  • warranty: 5 years
  • MFR # PF300

What's in the box:

  • Wall-plate bracket
  • 2 TV brackets
  • Four M4x16mm botls
  • Four M4x25mm bolts
  • Two M5x12mm bolts
  • Four M5x16mm bolts
  • Four M5x25mm bolts
  • Four M6x16mm bolts
  • Four M6x25mm bolts
  • Four M8x20mm bolts
  • Four M8x35mm bolts
  • Four M8x50mm bolts
  • Eight 5mm spacers
  • Four 14mm spacers
  • Four M4/M5/M6 washers
  • Four M8 washers
  • Four M8x50mm lag-bolts
  • 4 Anchors
  • Bit extender
  • Torx-bit
  • Phillips-bit
  • User Manual

Customer reviews for Kanto PF300

Loading reviews...

Average review:

5.0 out of 5 stars
45 reviews

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Kanto PF300

Stacey B.

Features & specs

Features
Mount Type Wall Mount
Motion
Tilt No
Swivel No
Extend/Retract No
Fixed Yes
Roll (Level) Adjustment No
Mounting Details
Wood Stud (Single) No
Wood Stud (Dual, 16-inch) Yes
Wood Stud (Dual, 24-inch) Yes
Concrete Block-compatible Yes
Recessed Housing No
Outdoor-rated No
Motorized No

Product Research

Features

TV Compatibility: The Kanto PF300 low-profile fixed wall-mount bracket supports 32" to 90" flat-panel TVs that weigh up to 150 lbs. The TV must meet the following VESA and screw size requirements.

  • VESA Sizes: 100x100 to 600x400
  • Screw Size: M4, M5, M6, or M8

Note: Additional hardware may be required for your specific model of TV. For example; shorter or longer screws, thicker or slimmer washers or spacers. These additional accessories can often be found at your local hardware store.

Solid Steel Construction: The Kanto PF300 low-profile fixed TV wall-mount bracket is constructed out of solid steel and features a durable powder-coated black finish.

Low-Profile Fixed Design: The Kanto PF300's slim wall-plate and mounting brackets allow your flat-panel TV to sit only 1.4375" from the wall. The PF300 is a fixed TV wall-mount bracket; it does not tilt, swivel, extend, etc.

Removable & Lockable: Removing your TV from the wall is as easy as pulling on two quick release cords. Each cord includes a magnetic end, allowing them to be tucked neatly out of sight. Two Torx screws can be tightened using the provided key and extension bit to prevent your TV from being removed.

Post-Installation Leveling: Precision leveling can be achieved with two adjustable screws. Use the provided 6" extension bit to easily access the leveling screws after your TV has been mounted.

Dual-Stud Installation: The Kanto PF300 low-profile fixed TV wall-mount bracket can accommodate both 16" and 24" stud spacing, and comes with all the hardware you need for wood stud and concrete installation. Tools required for installation include -

  • Drill
  • 7/32" bit (wood), 3/8" bit (masonry)
  • Socket wrench
  • Phillips screwdriver
  • Hammer
  • Stud finder
  • Level
  • Pencil

Loading accessories...

Customer Q&A

1 question already asked

Q
How does it tilt?
beth  Dec 27, 2020
9 answers
A
I have not used yet, but I don't think it does tilt
robert  Dec 29, 2020
A
There are 2 cross pieces on the vertical bars that your TV is mounted to that look like "X,s" each has an adjustment nob that loosens or tightens the tension on these X's. Loosen them and simply push on the bottom and pull on the top of the TV to adjust the amount of tilt. Retighten to hold in place. "WARNINGS" be extremely careful when pushing or pulling on the top and bottom of the TV itself when adjusting particularly if it's a thin panel OLED screen so you do not break it!
james  Dec 28, 2020
A
PF 300 does not tilt. You need PT300
chris  Dec 28, 2020
A
Sorry this Kanto PF300 does not tilt but rather holds your screen just out from the wall by notches in it's bracket.
byron  Dec 27, 2020
A
This unit doesn't have the ability to tilt. It wasn't an issue for us, however, as we were mounting it at eye level. Good luck with the install.
paul  Dec 27, 2020
A
It does not
ceciliana  Dec 27, 2020
A
This bracket does not tilt. It is only a fixed/stationary mount.
casey  Dec 27, 2020
A
It doesn't very much. Only way would be to use a spacer on the top and longer screws, but you will want to make sure the screws are secure. This is a low-profile wall mount with very little adjustments possible.
lance  Dec 27, 2020
A
It doesn't tilt.
joseph  Dec 27, 2020
