About the Kanto R300

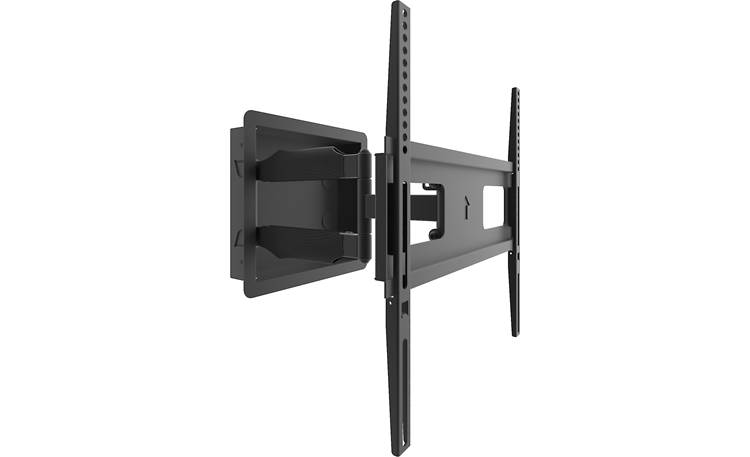

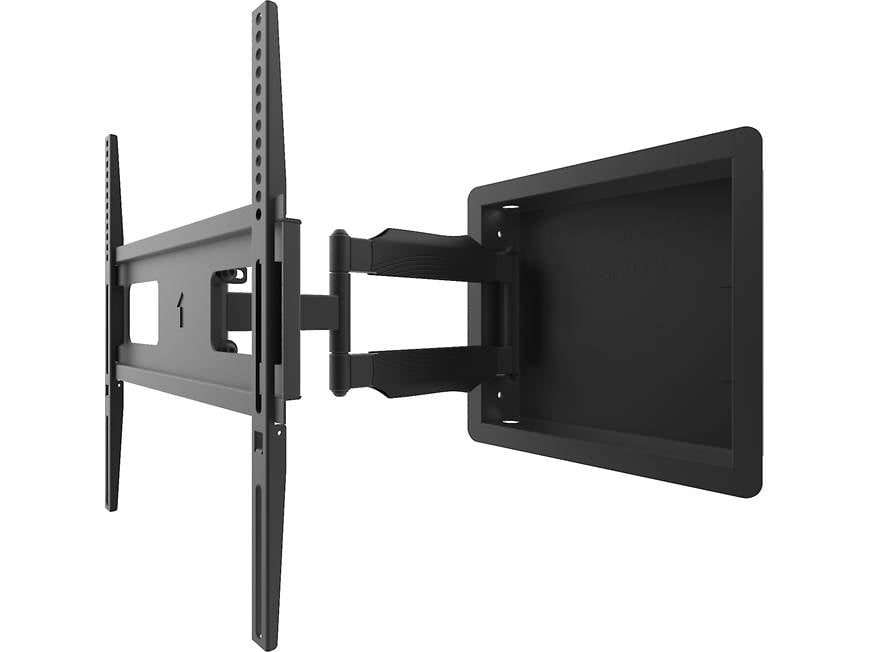

Recessed box keeps articulated arm out of sight
Recessed box keeps articulated arm out of sight
Want a full-motion TV mount with a clean, uncluttered appearance? The Kanto R300's articulated arm folds back into its own in-wall recessed box. It can hold your TV as close as 1-1/4" to the wall, or extend it as far as 18-1/2" into the room. And you can swivel your TV from side to side, and tilt it up or down for optimal viewing.
This solid steel mount has a durable powder-coaedt finish. Detachable clips keep TV cables and cords secured to the mount's arms. The R300 can support TVs with screen sizes between 32" and 55" and weighing up to 80 lbs.
Product highlights:
- fits most flat-panel TVs from 32"-55"
- supports up to 80 lbs.
- articulating arm positions TV 1-1/4" to 18-1/2" from wall
- tilt range: +5° to -10°
- swivel range: ±90°
- recessed box fits between 16" wood stud centers
- detachable clips hold cables and cords tightly to mount
- stud-mounting required
- solid steel construction with powder-coated finish
- 15-3/4"W x 17"H x 1-1/4"-18-1/2"D
- in-wall box: 14-3/8"W x 13"H x 3-1/2"D
- weight: 20.5 lbs.
- warranty: 5 years
- Our 60-day money-back guarantee
- MFR # R300
What's in the box:
- Recessed box with articulating arm
- Horizontal TV bracket
- 2 Vertical TV brackets
- Four M5x15mm bolts
- Four M5x25mm bolts
- Four M6x15mm bolts
- Four M6x25mm bolts
- Four M8x20mm bolts
- Four M8x35mm bolts
- Four M8x50mm bolts
- Four M6 washers
- Four 5mm spacers
- Four 10mm spacers
- 4 Lag-bolts
- Four M8 washers
- Hex-key
- User Manual
- Mounting Template
Reviews
Customer reviews
Loading reviews...
Kanto R300 reviews
Average review:
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Kanto R300
Features & specs
| Features | ||
|---|---|---|
| Mount Type | Wall Mount | |
| Motion | ||
| Tilt | Yes | |
| Swivel | Yes | |
| Extend/Retract | Yes | |
| Fixed | No | |
| Roll (Level) Adjustment | No | |
| Mounting Details | ||
| Wood Stud (Single) | No | |
| Wood Stud (Dual, 16-inch) | Yes | |
| Wood Stud (Dual, 24-inch) | No | |
| Concrete Block-compatible | No | |
| Recessed Housing | Yes | |
| Outdoor-rated | No | |
| Motorized | No | |
Product Research
Features
TV Compatibility: The Kanto R300 recessed aritculating wall-mount bracket supports 32" to 55" flat-panel TVs that weigh up to 80lbs. The TV must also meet the following VESA and screw size requirements.
- VESA Sizes: 100x100mm to 400x400mm
- Screw Size: M5, M6, or M8
Note: Additional hardware may be required for your specific model of TV. For example; shorter or longer screws, thicker or slimmer washers or spacers. These additional accessories can often be found at your local hardware store.
High-Grade Steel Construction: The Kanto R300 recessed aritculating wall-mount bracket is constructed out of high-grade steel and features a black powder-coated finish.
Recessed Box Installation: The Kanto R300 features an integrated recessed box which installs in the wall and is made to fit securely between 16" stud centers. The recessed box requires a 14.5" (w) x 13.25" (h) x 3.5" (d) cutout in your drywall. Tools required for installation include -
- Drill
- 7/32" bit (wood)
- Socket wrench
- Phillips screwdriver
- Drywall saw
- Stud finder
- Level
- Pencil
- Tape Measure
Note: The R300 is not designed for concrete or brick wall installations.
Full-Range Of Motion: Use the R300's articulating arm to ensure you always have the perfect viewing angle. The articulating arm provides up to 18.5" of extension and sits your TV only 1.25" from the wall when fully retracted. When extended, the R300 provides -5°/+10° of tilt and 180° of swivel, ensuring optimal viewing from all angles.
Integrated Cable Management: The provided clips secure your TV's cables to the R300's mounting arm for a neat and tidy installation.
