About the Kanto R500
Recessed box keeps articulated arm out of sight
Recessed box keeps articulated arm out of sight

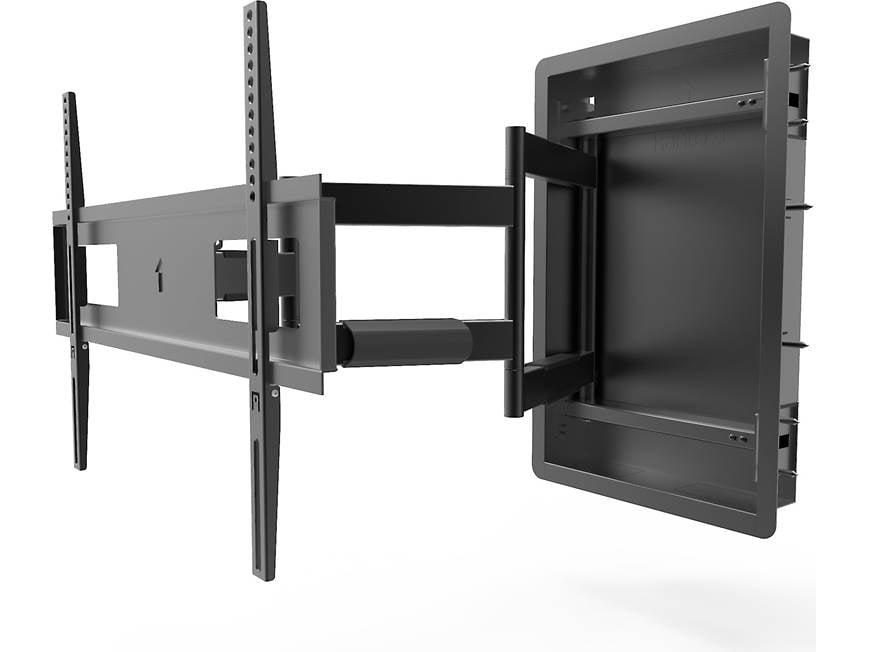

Want a full-motion TV mount with a clean, uncluttered appearance? The Kanto R500's articulated arm folds back into its own in-wall recessed box. It can hold your TV as close as 1-1/4” to the wall, or extend it as far as 27-5/8” into the room. And you can swivel your TV from side to side, and tilt it up or down for optimal viewing.
This solid steel mount has a durable powder-coated finish. Detachable clips keep TV cables and cords secured to the mount's arms. The R500 can support TVs with screen sizes between 46" and 80" and weighing up to 135 lbs.
Product highlights:
- fits most flat-panel TVs from 46"-80"
- supports up to 135 lbs.
- articulating arm positions TV 1-1/4" to 27-5/8" from wall
- tilt range: +5° to -10°
- swivel range: ±90°
- recessed box fits between 16" wood stud centers
- detachable clips hold cables and cords tightly to mount
- stud-mounting required
- solid steel construction with powder-coated finish
- 23-5/8"W x 17"H x 1-1/4"-27-5/8"D
- in-wall box: 16-1/4"W x 25-3/16"H x 3-5/8"D
- weight: 36.3 lbs.
- warranty: 5 years
- MFR # R500
What's in the box:
- Recessed box
- Articulating arm assembly
- Horizontal TV bracket
- 2 Vertical TV brackets
- Four M5x15mm bolts
- Four M5x25mm bolts
- Four M6x15mm bolts
- Four M6x25mm bolts
- Four M8x20mm bolts
- Four M8x35mm bolts
- Four M8x50mm bolts
- Four M6 washers
- Eight 5mm spacers
- Four 10mm spacers
- 10 Lag-bolts
- Ten M8 washers
- Hex-key
- User Manual
- Mounting Template
Customer reviews for Kanto R500
Loading...
Loading reviews...
Average review:
4.0 out of 5 starsCustomer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Kanto R500
Features & specs
| Features | ||
|---|---|---|
| Mount Type | Wall Mount | |
| Motion | ||
| Tilt | Yes | |
| Swivel | Yes | |
| Extend/Retract | Yes | |
| Fixed | No | |
| Roll (Level) Adjustment | No | |
| Mounting Details | ||
| Wood Stud (Single) | No | |
| Wood Stud (Dual, 16-inch) | Yes | |
| Wood Stud (Dual, 24-inch) | No | |
| Concrete Block-compatible | No | |
| Recessed Housing | Yes | |
| Outdoor-rated | No | |
| Motorized | No | |
Product Research
Features
TV Compatibility: The Kanto R500 recessed aritculating wall-mount bracket supports 46" to 80" flat-panel TVs that weigh up to 135lbs. The TV must also meet the following VESA and screw size requirements.
- VESA Sizes: 100x100mm to 600x400mm
- Screw Size: M5, M6, or M8
Note: Additional hardware may be required for your specific model of TV. For example; shorter or longer screws, thicker or slimmer washers or spacers. These additional accessories can often be found at your local hardware store.
High-Grade Steel Construction: The Kanto R500 recessed aritculating wall-mount bracket is constructed out of high-grade steel and features a black powder-coated finish.
Recessed Box Installation: The Kanto R500 features an integrated recessed box which installs in the wall and is made to fit securely between 16" stud centers. The recessed box requires a 14.25" (w) x 23.125" (h) x 3.625" (d) cutout in your drywall. Tools required for installation include -
- Drill
- 7/32" bit (wood)
- Socket wrench
- Phillips screwdriver
- Drywall saw
- Stud finder
- Level
- Pencil
- Tape Measure
Note: The R500 is not designed for concrete or brick wall installations.
Full-Range Of Motion: Use the R500's articulating arm to ensure you always have the perfect viewing angle. The articulating arm provides up to 27.625" of extension and sits your TV only 1.25" from the wall when fully retracted. When extended, the R500 provides -5°/+10° of tilt and 180° of swivel, ensuring optimal viewing from all angles.
Integrated Cable Management: The provided clips secure your TV's cables to the R500's mounting arm for a neat and tidy installation.
