Alpine KCU-315UH

USB/HDMI extension cable for connecting smartphones to select Alpine receivers

Alpine

Item # 500KCU315U

A growing number of car multimedia receivers — like Alpine's custom-fit Restyle systems — feature...

Find what Fits your vehicle

Remove

Checking fit...

A growing number of car multimedia receivers — like Alpine's custom-fit Restyle systems — feature...

Item # 500KCU315U

Shop all Alpine Other Car Stereo Accessories

Free lifetime tech support

Whenever you need a hand.

Since 1974

Years of experience making people happy.

60-day returns

If you don't love it, send it back.

About the Alpine KCU-315UH

Ken Nail

by Crutchfield's Ken Nail

HDMI for video from your smartphone

A growing number of car multimedia receivers — like Alpine's custom-fit Restyle systems — feature MHL-compatible HDMI connections that let you view video content from Android smartphones or portable Blu-ray Disc™ players. Alpine's KCU-315UH USB/HDMI extension cable lets you put that connection in a convenient location in your car. It even features a flip-up dust cover for a clean  look.
Alpine Authorized Online Dealer

HDMI for video from your smartphone

A growing number of car multimedia receivers — like Alpine's custom-fit Restyle systems — feature MHL-compatible HDMI connections that let you view video content from Android smartphones or portable Blu-ray Disc™ players. Alpine's KCU-315UH USB/HDMI extension cable lets you put that connection in a convenient location in your car. It even features a flip-up dust cover for a clean  look.

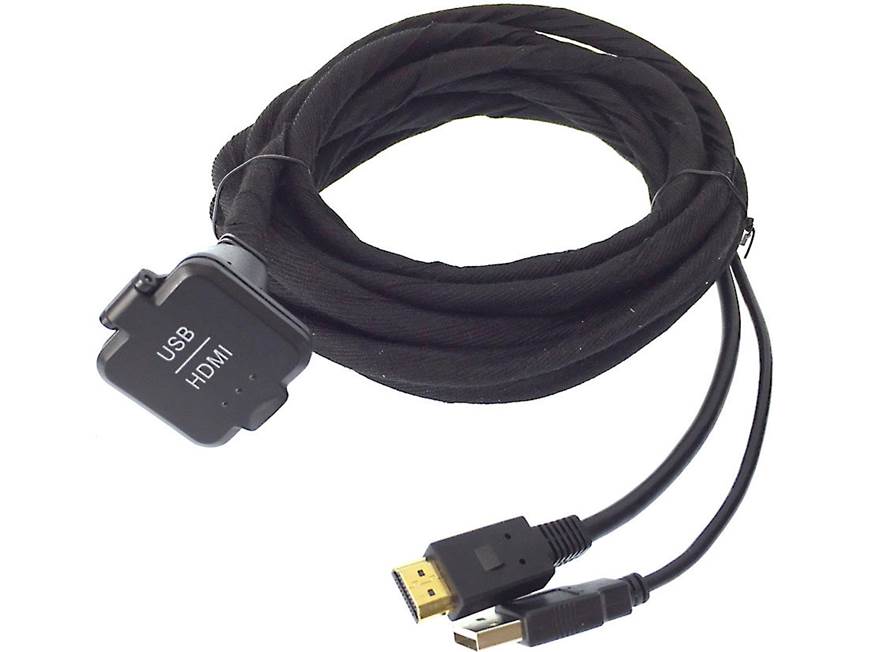

The 15-foot cable features a male USB (type-A) connector and a male HDMI connector on one end which plug into the rear-panel USB port and HDMI input of your in-dash multimedia receiver. On the other end, you'll find female USB and HDMI jacks for connecting your audio/video source. Warranty: 1 year.
READ LESS

What's in the box:

  • 15' HDMI/USB extension cable (with a male USB type-A connector and male HDMI connector on one end and a female USB type-A port and HDMI input on other end)
  • Flip-up dust cover (installed)
MFR #KCU-315UH

Featured review

Works flawlessly. Added to ILX-F411. Both for Android auto and Carplay. HDMI I use to mirror my phone.

Barry from Marion, AR

See all 19 reviews

Customer reviews for Alpine KCU-315UH

Loading reviews...

Average review:

4.0 out of 5 stars
19 reviews

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Have questions for
Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Alpine KCU-315UH

Mark G.
Researched by Crutchfield's Mark G.

Product Research

Features

HDMI & USB Extension Cable: The Alpine HDMI/USB Extension Cable (KCU-315UH) connects to the rear-panel USB port and HDMI input of your in-dash multimedia receiver or rear entertainment system and provides a more convenient location at the front of the vehicle to plug in your USB and HDMI compatible devices.

Note: The cable's USB connection is fully compatible with Apple CarPlay & Android Auto.

HDMI & USB Connections:  The Alpine KCU-315UH features a male USB (type-A) connector and a male HDMI connector which plug into the rear-panel USB port and HDMI input of your in-dash multimedia receiver or rear entertainment system. On the other end of the extension cable is a female USB (type-A) port and a female HDMI input to connect your compatible USB memory device and HDMI component.

15' Cable Length: The Alpine KCU-315UH extension cable is 15' in length.

Mounting Options: The Alpine HDMI/USB extension cable's female connector end can be flush-mounted. It features integrated tabs on the end that secure it within the cutout.

  • Cutout Dimensions: 1.0625" (w) x 1.0" (h) x 1.8125" (d)
  • Outer Dimensions: 1.625" (w) x 1.6875" (h) x 0.3125" (d)

Dust Cover: An integrate flip-up dust cover protects the female USB & HDMI jacks from dusty conditions.

Loading accessories...

Customer Q&A

11 questions already asked

Q
Will this work on a Kenwood Dmx1057xr?
jizzle  May 09, 2023
1 answer
A
This could be used with the Kenwood DMX1057XR.
zachary  May 12, 2023 (Staff)
Q
Will this Alpine KCU-315UH fit the alpine alpine x308u?
jaimie  Sep 25, 2022
1 answer
A
This awesome KCU-315UH USB/HDMI extension will work Jaimie! This is a recommended accessory for the Alpine X308U radio in the link below, no worries here! https://www.crutchfield.com/p_500X308U/Alpine-X308U.html
bo  Sep 25, 2022 (Staff)
Q
does the usb act as a charging port also?
jeremy  Sep 17, 2022
1 answer
A
Greetings Jeremy, and thank you for your question. Yes the Alpine KCU315HU will also charge a phone when connected.
thomas  Sep 17, 2022 (Staff)
Q
Is this cable compatible with Apple carplay?
james  Sep 05, 2020
Q
Will this work with the Alpine ILX-650?
gregory  Aug 06, 2020
1 answer
A
We have not received any answers from other customers on your question. I would recommend reaching out to an Advisor by phone (1-800-324-9695) or online chat. They should be able to help answer your question.
thomas  Aug 21, 2020 (Staff)
Q
Does this fit into a standard 12v outlet hole in the dash?
richt  Dec 10, 2019
2 answers
A
To be honest i didn't try that, I needed the lighter so i drilled my own hole.
frederick  Jan 06, 2020
A
Yes, perfectly
eugene  Jan 06, 2020
Q
what size hole needs to be drilled for this?
stephen  Nov 18, 2019
3 answers
A
Hi Stephen, thank you for your question. These are the dimensions for installation of the Alpine KCU-315UH. Cutout Dimensions: 1.0625" (w) x 1.0" (h) x 1.8125" (d) Outer Dimensions: 1.625" (w) x 1.6875" (h) x 0.3125" (d). Hope this helps!
jessica  Nov 29, 2019 (Staff)
A
I had to use a burr on a right angle grinder as a drill would not fit in my chosen location. The specs state Cutout Dimensions: 1.0625" (w) x 1.0" (h) x 1.8125" (d) Outer Dimensions: 1.625" (w) x 1.6875" (h) x 0.3125" (d) I did not measure when I was done to doublecheck, but I would say the description is accurate. The housing has locking tabs on the backside to clip it into the panel. I did not get my whole A Perfect Circle, but because of the tabs it still went in very snug and is not coming out unintentionally.
william  Nov 27, 2019
A
I'm not sure what size the hole is. I removed my cigarette light and replaced it with this product. I did use a dremel to notch the opening. There is a tab on the plastic insert that keeps it in place and notching the opening accommodated the product fitment.
james  Nov 27, 2019
Q
Will this work with Pioneer AHH 1330 NEX ?
jeepllover1  Nov 10, 2019
1 answer
A
All it is a usb extension so yes it should work.
allan  Nov 10, 2019
Q
Does either port light up?
jesse  May 06, 2018
2 answers
A
No
laureana  May 06, 2018
A
If you are talking about actual lighting, then no. It's pretty simple and what you see , is what you get.
jose  May 06, 2018
Q
will this fit hdmi fit into the back of the alpine ixl 207?
alex  Apr 08, 2018
1 answer
A
It wil. I would suggest the KCX-630HD.
bradley  Apr 08, 2018
Q
how does the port stay on the dash when you install it?
jose  Mar 15, 2018
1 answer
A
The plug end has 2 small clips that will hold it in if the correct size hole is drilled. I used a 1 inch bit and slowly widened it until the end clipped in tightly. Hope this helps
davin  Mar 15, 2018
