Alpine KTX-H12 Linking Kit

Heavy-duty steel front and rear linking brackets for connecting two Alpine Halo 12" subwoofer enclosures

Item # 500KTXH12

Item # 500KTXH12

In stock

Since 1974

Years of experience making people happy.

60-day returns

If you don't love it, send it back.

Hands-on research

We double check the details on each item.

About the Alpine KTX-H12 Linking Kit

Bob Bihlmayer

When it comes to bass, two is always better than one. Alpine's KTX-H12 linking kit allows you to connect two Alpine S-SB12V or R-SB12V 12" subwoofer enclosures to double your bass. The kit includes heavy-duty steel front and rear linking brackets to securely connect the enclosures as well as all the hardware you'll need. The front bracket's silver finish is made to coordinate with the enclosures' design, while the silver Alpine badge adds a touch of style. Warranty: 1 year.

What's in the box:

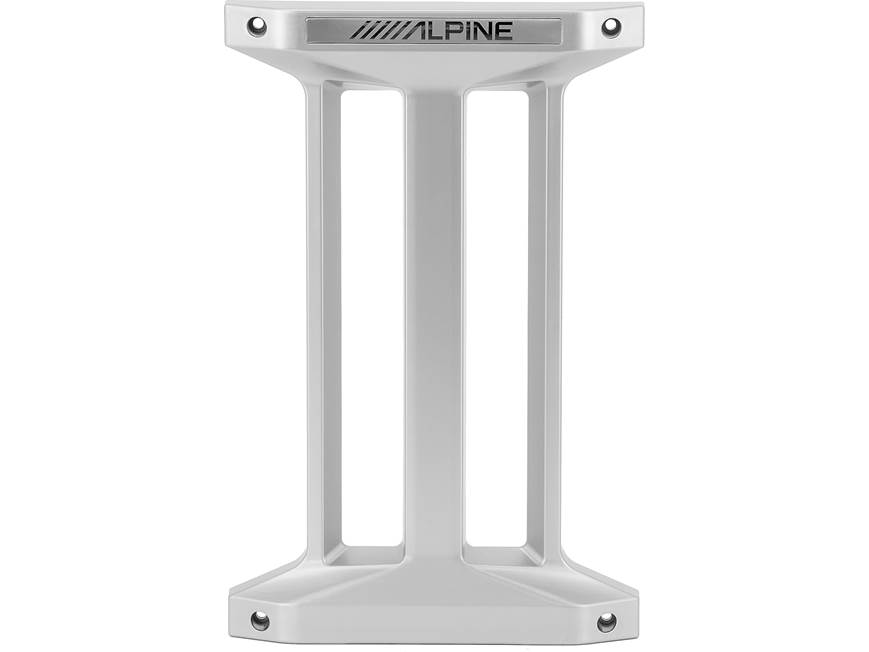

  • Front port-link
  • Two 9" front port braces
  • 23.25" Rear link-plate
  • Four 25mm hex-socket screws
  • Eight 14mm hex-socket screws
  • Four 20mm threaded alignment posts
  • 3mm Allen-key
  • Installation instructions
  • Safety warnings

Customer reviews for Alpine KTX-H12 Linking Kit

Loading reviews...

Average review:

3.0 out of 5 stars
1 review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on

This review was collected as part of a promotion



Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Alpine KTX-H12 Linking Kit

Mark G.

Product Research


Overview: The Alpine KTX-H12 Linking Kit lets you attach two Alpine R-SB12V or S-SB12V series loaded subwoofer enclosures (sold separately) in a side-by-side fashion.

Installation: The KTX-H12 includes a steel rear link-plate that bolts into pre-formed indentations in the back of the subwoofer enclosure, and attach via 4 pre-tapped screw holes using the provided hardware. Threaded alignment posts slide into pre-cut holes on the side of each enclosure, providing additional support. Two front port-braces lock the front of both enclosures together, while the front port-link covers the port-braces, adding attractive cosmetics to the front of the subwoofer assembly.

Compatibility: The Alpine KTX-H12 Linking Kit is designed specifically for mounting two R-SB12V or S-SB12V subwoofer enclosures together.
