About the Alpine PSS-22WRA
A total Alpine upgrade
A total Alpine upgrade
Good times in your Wrangler Unlimited are about to get better. Alpine's Restyle PSS-22WRA speaker system takes the guesswork out of installation with nine direct-fit speakers and power sources perfectly suited for your Jeep Wrangler JK Unlimited (not compatible with premium sound systems). Alpine has also designed this weather-proof system to endure the environmental harshness of life in your Jeep, even when the top is off. Get ready to rock the great outdoors.
The sound
Alpine supplies everything you need to revitalize the sound in your Wrangler. You'll get two 6-1/2" component systems with 1" dome tweeters for the front and sound bar locations in your Jeep. Alpine lets you convert these components to a coaxial design if called for in your JK Unlimited. The included weather-resistant Tough Pack 4-channel amp ups your power for awesome clarity at all volumes — a must for top-down drivers. Alpine also gives you a 10" enclosed underseat subwoofer and a Tough Pack mono amp for some whoppin' bass.
The fit
Alpine designed the Restyle line for drivers who want to improve their sound but want to maintain the factory look of their vehicle. The PSS-22WRA sound system upholds this approach by including tweeter mounting gear suitable for a variety of locations. The woofers fit directly into your factory locations and in the case of the two amps, all wiring is included, complete with factory compatible plugs. Once the PSS-22WRA system goes in, you won't even know it's there... until you crank up the volume.
Installation Note: This system will not work in Wranglers with a manual transmission, as the amp mounting bracket interferes with the clutch assembly. This package also will not work in Wranglers with the Alpine system, or in 2-door models.
Product highlights:
- compatible with select 2011-18 Jeep Wrangler JK Unlimited models (not compatible with premium sound systems)
- package includes:
- two sets of SPV-65X-WRA 6-1/2" component speakers
- weather-resistant Tough Pack KTA-30F-WRA 4-channel amplifier
- weather-resistant Tough Pack KTA-30M-WRA mono amplifier with remote bass knob
- SBV-10-WRA 10" enclosed sub
- mounting gear, wiring, and connectors
- included SPV-65X-WRA speakers can be configured for component or coaxial use
- includes T-harness for getting signal from Jeep radio
- warranty: 3 years
- MFR # PSS-22WRA

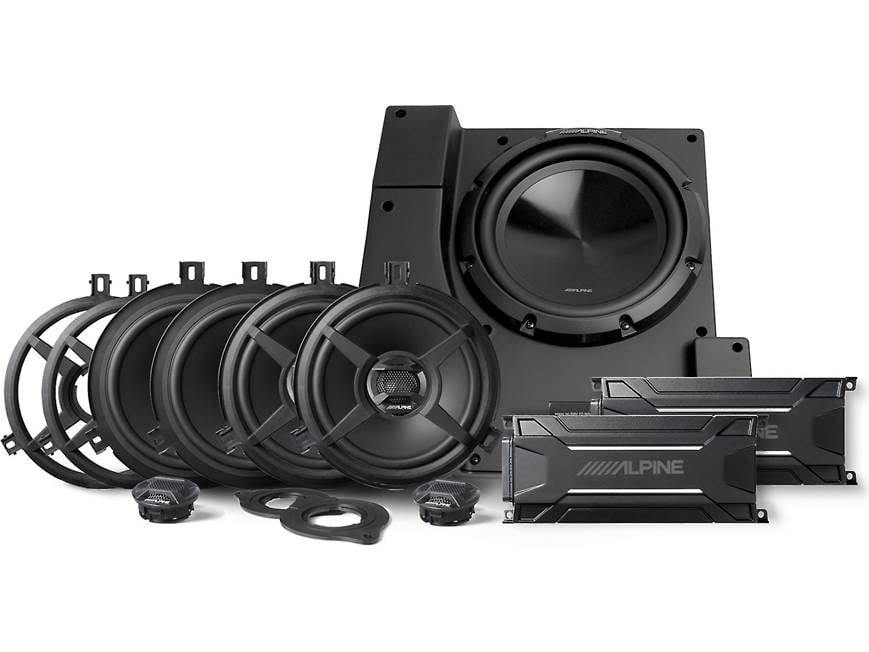

What's in the box:
Alpine PSS-22WRA owner's manual
- This package contains four individually boxed Alpine items including the main box:
- Main Box:
- SBV-10-WRA Powered subwoofer
- 103" Main harness
- 8' Power cable (inline 60A Maxi-fuse)
- 8" T-harness
- Three 10" speaker to RCA adapters
- Three 3/4" bolts
- Installation manual
- Warranty information
- Amplifier Box:
- KTA-30F-WRA and KTA-30M-WRA amplifiers pre-attached to the mounting bracket
- (2) SPV-65X-WRA Component speaker sets each containing:
- Two 6-1/2" Woofers (attached 6" speaker wire)
- Two tweeters (attached 6" speaker wire)
- 2 Crossovers
- 2 Woofer grilles
- 2 Tweeter mounting plates
- Two 12" Sheets of polyfill
- 2 Alpine logos with adhesive backing
- Two 1/2" adhesive foam pads
- Instruction manual
- Warranty information
Customer reviews for Alpine PSS-22WRA
Loading...
Loading reviews...
Average review:
4.5 out of 5 starsCustomer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Alpine PSS-22WRA
Features & specs
| General | ||
|---|---|---|
| Speaker Size | Vehicle-specific | |
| Design | 2-way | |
| Tweeter Design | Dome | |
| Impedance (Ohms) | 4 | |
| Tweeter Composition | Teteron | |
| Woofer Composition | Not given | |
| Woofer Surround | Not given | |
| Parts Warranty | 3 Years | |
| Labor Warranty | 3 Years | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | 88 | |
| Sensitivity at 2.83 volts | N/A | |
| Frequency Response | 45 - 22k Hz | |
| Minimum RMS Wattage | --- | |
| Maximum RMS Wattage | 600 | |
| Peak Power Handling (Watts) | 1200 | |
| Top-mount Depth (Inches) | 2 5/8 | |
| Bottom-mount Depth (Inches) | N/A | |
| Cutout Diameter or Length (inches) | 5 7/16 | |
| Mounting Height (Inches) | 0.45 | |
Product Research
Features
Overview: Alpine's PSS-22WRA is a dedicated 9 speaker sound system designed specifically for 2011-2018 Jeep Wrangler 4-door JK Unlimited vehicles not equipped with a factory Alpine amplified sound system. The Alpine replacement system includes; two compact amplifiers, one 4 x 50 watt RMS amplifier for the four speaker locations; a 120 watt RMS mono amp, driving a 10" subwoofer enclosure; and two sets of SPV-65X-WRA 6-1/2" component speakers. The PSS-22WRA also includes a remote bass knob, for changing the bass level from the dash, along with all the mounting hardware and wiring harnesses necessary for mounting and adapting into the factory system.
Notes:
- Not compatible with manual transmission vehicles; amp mounting bracket will interfere with clutch assembly.
- Not compatible with 2-door JK Unlimited models.
Wiring: The PSS-22WRA system can be interfaced with a factory radio (non-amplified) or an aftermarket radio, including Alpine's Restyle headunits. The included T-harness interfaces the factory wiring in the dash, providing either a speaker-level signal from a factory radio or an RCA line-level signal from an aftermarket radio, to feed to the two Alpine amplifiers. The T-harness also feeds the amplified return signal back into the factory wiring and out to each of the speakers, utilizing the factory speaker wires. The provided Main Harness includes a 10 ga. power wire, with inline fuse holder, that gets run to the battery, providing power for both the 4-channel amp and the subwoofer amp. This harness also works in conjunction with the T-harness by providing audio in and out between the radio and both amps. Speaker adapter harnesses are provided for each set of speakers, including the dash tweeters, so no cutting into the factory wiring will be required. Inline high-pass crossovers are provided for both sets of tweeters.
KTA-30F-WRA Amplifier: The KTA-30F-WRA is a 4 channel amplifier providing 50 watts per channel into a 4Ω load. The amp can accept both line-and speaker-level inputs and includes an Auto Turn-on circuit that will activate the amp when it senses a signal on the speaker-level inputs. Connection to the amp is done through a single 26-pin plug off of the main harness. Controls for the 4-channel amp are located underneath a removable metal cover-plate and include:
- Gain: Adjusts the input signal level.
- Filter: Two 3-way switches, one each for front and rear channels, provides options for High-Pass, Low-Pass, and Off (full range).
- Crossover Frequency: One dial for each set of channels can be used to adjust the cutoff frequency for those two channels. Each crossover has a range from 50 Hz to 400 Hz.
- Input: Two switches, common to both sets of channels,
include:
- RCA/SPK: Selects the input signal type.
- 2Ch/4Ch: Selects whether 2 or 4 input channels will be used.
KTA-30M-WRA: The KTA-30M-WRA is a 120 watt RMS mono amplifier for powering the 10" subwoofer. Like the 4-channel amp, it can accept either line- or speaker-level inputs and features an Auto Turn-on circuit that will activate the amp when it senses a signal on the speaker-level inputs. An included wired remote lets you easily adjust the bass level from the front seating area. The control can be mounted under a dash panel and gives you a level range from 0 to -20 dB, relative to the gain setting on the amplifier. Controls on the subwoofer amplifier include:
- RCA/SPK: Selects the input signal type.
- Gain: Used to vary the input level.
- Low Pass Filter: Rotary control that can set the filter cutoff between 50 - 400 Hz.
- Filter On/Off switch
- Subsonic: Adjusts the subsonic filter, with a range of 5Hz to 40Hz.
- Bass EQ: Provides a boost at 45Hz, with a range of 0 to +12dB.
Subwoofer Enclosure: The Alpine 10" subwoofer enclosure can provide deep accurate bass, while not taking up any usable space in the vehicle. The enclosure is shaped to sit underneath the passenger's seat and is held in place with the factory seat brackets.
SPV-65X-WRA: The Alpine system includes both front and rear component speaker sets featuring 6-1/2" woofers and 1" Teteron tweeters. The two component speaker sets provide full clear sound for front and rear locations, even with the Jeep's top off.
Mounting: Both the 4-channel amplifier and the subwoofer amp come pre-attached to the included mounting bracket, and are designed to fit underneath the driver's side dash panel. The 10-inch subwoofer enclosure gets placed underneath the front passenger side seat and is held in place with the factory seat brackets. The PSS-22WRA is designed so that no usable space in the vehicle is taken up by the sound system. Each of the SPV-65X-WRA 6-1/2" component speaker sets includes hardware for mounting the woofers into the factory locations, both in the dash as well as in the rear soundbar. Both sets of tweeters also include brackets, allowing them to sit in the factory locations, and include a threaded locking collar that allows them to quickly and easily attach to the brackets. The brackets, in turn, mount directly to the factory screw holes used by the factory tweeters.
The Alpine PSS-22WRA replaces these items
Alpine Restyle PSS-21WRA
- includes four 6-1/2" component woofers, four 1" tweeters with inline crossovers, one 4-channel amp, one powered 8" subwoofer with built-in Class D amp, mounting gear, and connectors
- MRV-F300 amplifier: 50 watts RMS x 4 at 4 ohms
- PWE-S8 powered sub: 8" sub with 120-watt amp
Alpine Restyle PSS-20WRA
- MRV-F300 amplifier: 50 watts RMS x 4 at 4 ohms
- PWE-S8 powered sub: 8" sub with 120-watt amp
- package includes: one 6-1/2" component speaker set, one set of 6-1/2" coaxial speakers, one 4-channel amp, one 8" powered sub, mounting gear, and connectors
