About the Alpine R2-S652
Your entry to high-res audio
Your entry to high-res audio
Enjoy the details in your favourite high-resolution audio files with this set of Next-Generation R-Series component woofers, tweeters, and external crossover systems. Using technology developed for their flagship F#1 Status Series, Alpine built these speakers to be fun for enthusiasts interested in high-resolution audio playback. Their ultra-wide frequency response ensures a detailed, authentic sound, and thanks to power-handling up to 100 watts RMS, you can play 'em loud!
Minimal distortion

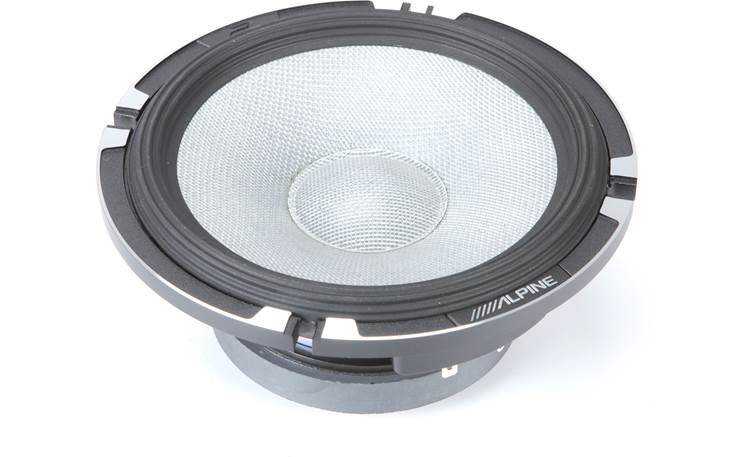

Alpine optimizes their R2-S652 6-1/2" 2-way component speaker system for near-perfect sound from premium sources. The woofer's combination of a highly rigid aluminum frame and a lightweight glass-fibre reinforced woofer cone helps minimize distortion. The high-amplitude multi-roll surround maximizes impact while maintaining linearity, so you'll get punch with minimal distortion. And speaking of a little more punch, the woofer's ferrite magnet and large motor structure will pump up the mid-bass in your music.
Equipped for pros
All the exquisite detail you need is handled by the 1" magnesium hard dome tweeters, which contribute to the "loud and fun" sound associated with Alpine's R-Series. Because tweeters can be challenging to install, Alpine provides a threaded removable housing and a swivel-mount design, so you'll have helpful options. Plus, you'll get robust external crossovers to ensure your speakers receive the right frequencies to perform at their very best.
Product highlights:
- 3-way component speaker system
- 6-1/2" glass-fiber woofer cone with High-Amplitude Multi-Roll surround
- 1" magnesium hard dome tweeter
- external crossover systems
- handles up to 100 watts RMS (300 watts peak power)
- frequency range: 65-40,000 Hz
- warranty: 1 year
- MFR # R2-S652

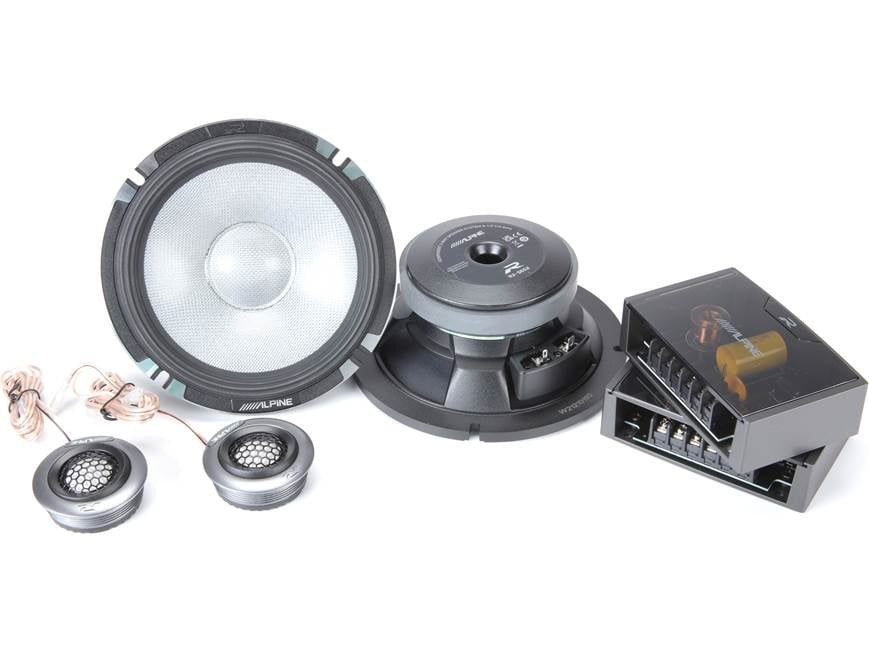

What's in the box:
- 2 Woofers
- 2 Woofer grilles
- 2 Tweeters (each has an attached 30" length of wire terminated with quick slides)
- 2 Crossovers
- 2 Tweeter grilles (installed)
- 2 Flush mount housings (with tweeters installed)
- 2 Flush mount retention rings
- 2 Angled surface mount housings
- Two 45" Tweeter wire extensions
- 2 Self-adhesive pads
- Eight 1-1/8" Screws
- Four 5/8" Screws
- Eight 3/4" Screws
- 8 Large speed-clips
- 4 Small speed-clips
- Warranty information
- On-line product registration information
- Important Notice
- Template and specs on box
Reviews (5)
Customer reviews for Alpine R2-S652
Loading reviews...
Average review:
4.5 out of 5 starsCustomer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Alpine R2-S652
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6 1/2 | |
| Design | 2-way | |
| Tweeter Design | Dome | |
| Impedance (Ohms) | 4 | |
| Tweeter Composition | Magnesium | |
| Woofer Composition | Glass-Fiber | |
| Woofer Surround | Rubber | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | 88 | |
| Sensitivity at 2.83 volts | N/A | |
| Frequency Response | 65 - 40k Hz | |
| Minimum RMS Wattage | --- | |
| Maximum RMS Wattage | 100 | |
| Peak Power Handling (Watts) | 300 | |
| Top-mount Depth (Inches) | 2 1/2 | |
| Bottom-mount Depth (Inches) | N/A | |
| Cutout Diameter or Length (inches) | 5 3/8 | |
| Mounting Height (Inches) | 0.44 | |
Product Research
Features
Size Note: Alpine describes this woofer size as 6½, but because it requires a larger cutout than a standard 6½, Crutchfield has traditionally referred to this size as 6¾. Please enter your vehicle information to confirm fit.
HAMR Surround: The R-Series speakers incorporate Alpine's patented High-Amplitude Multi-Roll (HAMR) surround, a technology developed for Alpine subwoofers that maintains control and stability at higher volume levels. HAMR surrounds combine increased cone area and long linear cone excursion for deep, powerful bass response.
Tweeter Mounting Options: The tweeters come installed in a flush-mount housing. Once mounted, the tweeters pivot approximately 15° in any direction, to improve the stereo image. Angled surface-mount housings are also included. The installed tweeter dimensions are:
| Flush Mount (swivel) | Angled Surface Mount | |
| Mounting Depth | 0.65" | N/A |
| Mounting Height | 0.378" | 1.325" |
| Cutout Diameter | 2.0" | N/A |
| Frame Diameter | 2.285" | 1.82" x 1.71" |
Crossovers:
- Low Pass: 6 dB/octave slope
- High Pass: thr 12 dB/octave slope
- Tweeter Output Level: three jumper positions; choose -3 dB, 0 dB (flat), or +3 dB
- Wire Connections: inputs and outputs are screw terminals; accept bare wire or spade connectors up to 0.3" wide
- Crossover Dimensions:
- Width: 4.6"
- Height: 1.37"
- Depth: 3" (plus wire)
