About the Alpine R-S65C
Upgrade with Alpine excellence
Upgrade with Alpine excellence
Choosing Alpine for your upgrade is like choosing chocolate at the ice cream counter — it's a classic for a reason. You can't go wrong with Alpine's undying commitment to quality sound and attention to detail, and their thunderous R-Series component speakers deliver the goods when your urge to crank the volume is unstoppable.
Component sound
This R-S65 6-1/2" component speaker system features a hybrid fibre woofer cone that satisfies your need for strong bass response. A deluxe surround allows consistent, extended cone movement that pushes a lot of air for high-impact sound and guarantees a long life in your car doors. And when it comes to the highs, a 1" separate silk tweeter brings on a level of smoothness that enhances your music with detail, depth, and no shrillness. Alpine includes a pair of external crossovers that are compact enough to easily stash away in most nooks or crannies.
Handles up to 100 watts
Alpine has designed these components to work perfectly with your car stereo, but they'll really come into their own when you power them with an outboard amp. Power handling up to 100 watts RMS ensures you can get big, dynamic sound and plenty of volume out of these sturdy speakers. So, prepare yourself for a no-regrets sound upgrade.
Product highlights:

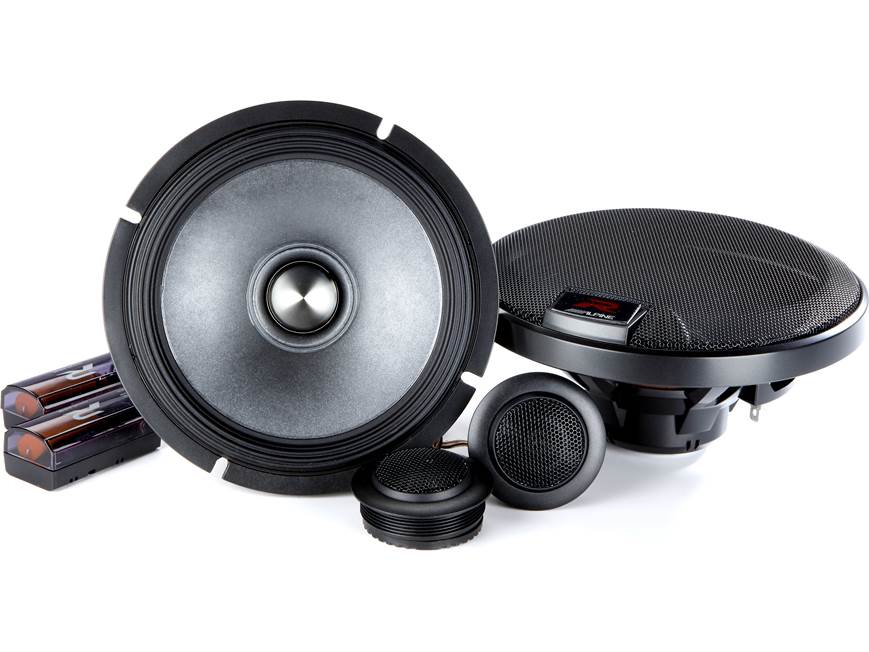

- component speaker system includes two woofers, 2 tweeters, and 2 external crossovers
- 6-1/2" hybrid fiber woofer with multi-roll rubber surround
- 1" silk dome tweeter
- handles up to 100 watts RMS (300 watts peak power)
- frequency response: 65-29,000 Hz
- sensitivity: 88 dB
- woofer top-mount depth: 2-3/8"
- grilles included
- warranty: 1 year
- MFR # R-S65C
What's in the box:
- 2 Woofers
- Two 6-1/2" Adapter rings (includes GM/Chrysler)
- Two 6x8 Adapter rings
- 2 Woofer grilles
- 2 Grille badges
- 2 Tweeters (each has an attached 28" length of wire)
- 2 Tweeter grilles (installed)
- 2 Swivel flush mount housings (with tweeters installed)
- Two tweeter crossovers (each has attached 32" input and 12" output wires)
- 2 Flush mount retention rings
- 2 Stealth brackets
- 2 Adhesive backed foam pads
- 2 Adhesive backed foam rings
- Eight 1-1/8" Screws
- Eight M4x12mm Machine screws
- Eight 1/2" Screws
- 8 Speed-clips
- Four 5" Zip ties
- 2 Pieces of two-sided tape
- Warranty information
- Important Notice
- On-line product registration information
- Templates and specs on box
Featured video:
Customer reviews for Alpine R-S65C
Loading...
Loading reviews...
Average review:
4.5 out of 5 starsCustomer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Alpine R-S65C
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6 1/2 | |
| Design | 2-way | |
| Tweeter Design | 1" Dome | |
| Impedance (Ohms) | 4 | |
| Tweeter Composition | Silk | |
| Woofer Composition | Hybrid Fiber | |
| Woofer Surround | Multi-Roll Rubber | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | 88 | |
| Sensitivity at 2.83 volts | N/A | |
| Frequency Response | 65 - 29k Hz | |
| Minimum RMS Wattage | --- | |
| Maximum RMS Wattage | 100 | |
| Peak Power Handling (Watts) | 300 | |
| Top-mount Depth (Inches) | 2 3/8 | |
| Bottom-mount Depth (Inches) | 2 5/8 | |
| Cutout Diameter or Length (inches) | 5 5/16 | |
| Mounting Height (Inches) | 0.456 | |
| Frame Width | 6.496 | |
| Frame Length | 6.496 | |
Product Research
Features
Woofer Mounting: Although Alpine describes the woofers' size as 6-1/2, without adapter brackets the woofers fit many standard 6-3/4 applications. Using the two types of adapter brackets included, they can be mounted in a wide variety of 6-1/2, 6-3/4, 5x7, and 6x8 applications. Please enter you vehicle information to confirm fit.
HAMR Surround: Type-R speakers use Alpine's multi roll HAMR surround (patent pending), a technology developed for Alpine subwoofers that maintains control and stability at higher volume levels. HAMR surround combines increased cone area and long linear cone excursion for deep, powerful bass response.
Tweeter Mounting Options: The tweeters come installed in a swiveling flush-mount housing. You can also install the tweeters behind factory grilles using the included stealth mount brackets. The stealth mount brackets can be top or bottom mounted. The installed tweeter dimensions are:
| Flush Mount (swivel) | Factory Location (bottom mount) | Factory Location (top mount) | |
|---|---|---|---|
| Mounting Depth | 0.657" | 0.756" | 0" |
| Mounting Height | 0.436" | 0" | 0.756" |
| Cutout Diameter | 2.005" | N/A | N/A |
| Frame Diameter | 2.277" | 1.723" x 2.5" | 1.723" x 2.5" |
Crossovers: The R-S65C features low-pass crossovers attached to each woofer's input terminal and separate high-pass crossovers in-line between the woofers and tweeters. Because the crossovers are separate, the system can be bi-amped. Two-sided tape is included to mount the high-pass crossovers and their dimensions are:
- Width: 2.475" (2.686" including wire)
- Height: 0.96"
- Depth: 1.27"
Tweeter Attenuation: Each crossover has four tweeter level options, allowing you to precisely tune the high frequencies to the car interior and tweeter placement. Using the supplied jumpers select 0dB (no attenuation), -2dB, -4dB, or -6dB.
The Alpine R-S65C replaces these items
Alpine SPR-60C
- 6-3/4" multi-layer hybrid fibre woofers with rubber surrounds
- 1" silk dome tweeters
- 8-110 watts RMS power range
