About the Alpine R-S65C.2
Ready for high resolution
Ready for high resolution
With so many music fans relying on Alpine's R-Series lineup to enjoy their daily drive, these car speakers have achieved "classic" status. And now Alpine has leveled up their design to handle high-resolution audio. For years, home audio fans have enjoyed listening to speakers that extend way above the range of human hearing – now you can share that enhanced experience on the road.
Component quality
These R-S65C.2 6-1/2" speakers feature a carbon fibre reinforced polymer (CFRP) woofer cone that satisfies a hankering for strong bass response. A deluxe surround allows extended cone movement for high-impact sound as well as resilience in the face of harsh conditions. And the extended frequency range of the separate R-Series CFRP tweeter lets you savour all the rich detail of your high-resolution music files. Alpine includes a pair of external crossovers that are compact enough to easily stash away in most nooks or crannies.
Handles up to 100 watts
Alpine has designed these speakers to work perfectly with your car stereo, but they'll really come into their own when you power them with an outboard amp. Power handling up to 100 watts RMS ensures you can get big, dynamic sound and plenty of volume out of these sturdy speakers. If you like to turn it up loud, Alpine R-Series speakers will give you a no-regrets sound upgrade.
Product highlights:

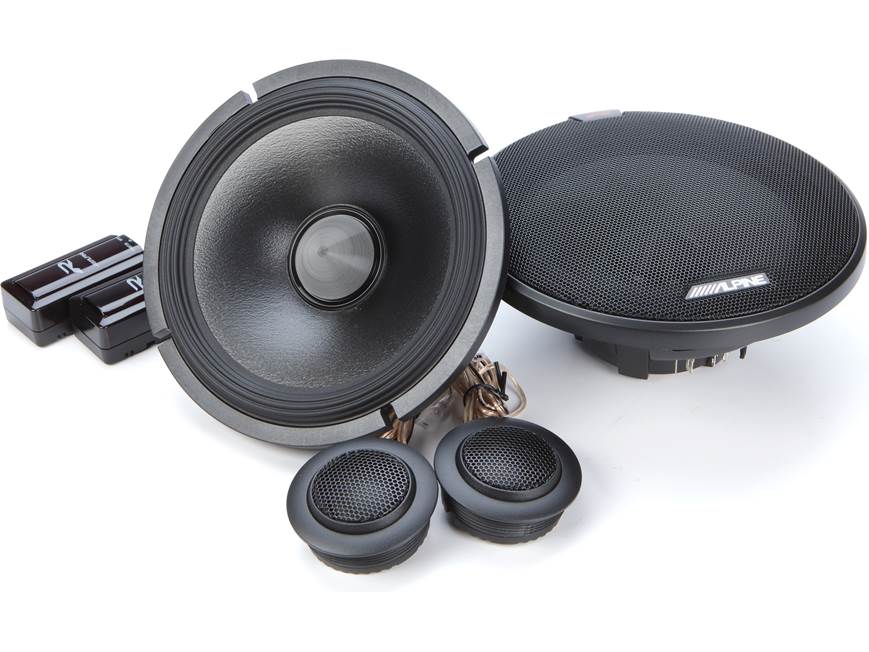

- component speaker system includes two woofers, 2 tweeters, and 2 external crossovers
- 6-1/2" carbon-fiber reinforced polymer (CFRP) woofer
- carbon-fiber reinforced polymer dome tweeter
- handles up to 100 watts RMS (300 watts peak power)
- frequency response: 65-40,000 Hz
- sensitivity: 88 dB
- woofer top-mount depth: 2-3/8"
- grilles included
- warranty: 1 year
- MFR # R-S65C.2
What's in the box:
Alpine R-S65C.2 owner's manual
- 2 Woofers
- Two 6-1/2" Adapter rings (includes GM/Chrysler)
- Two 6x8 Adapter rings
- 2 Woofer grilles
- 2 Grille badges
- 2 Tweeters (each has an attached 30" length of wire)
- 2 Tweeter grilles (installed)
- 2 Swivel flush mount housings (with tweeters installed)
- Two crossovers (each has attached input and output wires)
- 2 Flush mount retention rings
- 2 Stealth brackets
- 2 Foam self-adhesive pads
- 2 Foam self-adhesive rings
- Eight 1-1/8" Screws
- Eight 1/2" Screws
- 8 Speed-clips
- Eight M4x12mm Machine screws
- Four 5" Zip ties
- 2 Pieces of two-sided tape
- Warranty information
- On-line product registration note
- Important Notice sheet
- Template and specs on box
Featured video:
Customer reviews for Alpine R-S65C.2
Loading...
Loading reviews...
Average review:
4.5 out of 5 starsCustomer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Alpine R-S65C.2
Features & specs
General | ||
---|---|---|
Speaker Size | 6 1/2 | |
Design | 2-way | |
Tweeter Design | 1" Dome | |
Impedance (Ohms) | 4 | |
Tweeter Composition | Carbon-Fiber/Polymer | |
Woofer Composition | Carbon-Fiber Reinforced Polyme | |
Woofer Surround | Rubber | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Specifications | ||
Sensitivity (1W at 1 meter) | 88 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 65 - 40k Hz | |
Minimum RMS Wattage | --- | |
Maximum RMS Wattage | 100 | |
Peak Power Handling (Watts) | 300 | |
Top-mount Depth (Inches) | 2 3/8 | |
Bottom-mount Depth (Inches) | 2 5/8 | |
Cutout Diameter or Length (inches) | 5 3/8 | |
Mounting Height (Inches) | 0.482 | |
Frame Width | 6.485 | |
Frame Length | 6.485 |
Product Research
Features
Driver Materials: The R-Series speakers use Carbon Fiber Reinforced Polymer (CFRP) woofer cones. This high-strength, lightweight material is formed with its fibers aligned in the same direction as the curve and shape of the cone, thereby reducing resonant peaks. This balance of light weight and rigidity improves the speakers' mid-bass performance and dynamic range. CFRP is also used for the tweeter diaphragm, enabling the system to perform into the 40 kHz range.
HAMR Surround: The R-Series speakers incorporate Alpine's patented High-Amplitude Multi-Roll (HAMR) surround, a technology developed for Alpine subwoofers that maintains control and stability at higher volume levels. HAMR surrounds combine increased cone area and long linear cone excursion for deep, powerful bass response.
Tweeter Mounting Options: The tweeters come installed in a flush-mount housing. Once mounted, the tweeters pivot approximately 15° in any direction, to improve the stereo image. You can also install the tweeters behind factory grilles using the included stealth mount brackets. The stealth mount brackets can be top or bottom mounted; they have multiple tabs that can be removed when not needed. The installed tweeter dimensions are:
Flush Mount (swivel) | Factory Location (bottom mount) | Factory Location (top mount) | |
---|---|---|---|
Mounting Depth | 0.665" | 0.708" | 0" |
Mounting Height | 0.378" | 0" | 0.805" |
Cutout Diameter | 2.0" | N/A | N/A |
Frame Diameter | 2.291" | 2.5" x 2.5" | 2.56" x 2.56" |
Crossovers: A low-pass crossover is attached to each woofer's input terminal. Separate in-line high-pass crossovers are wired between the woofers and tweeters. Each woofer has two positive and two negative terminals, one for input from the amplifier, and one for output to the tweeter (via the in-line high-pass crossover). The 12" output wires attached to the crossovers are terminated with quick slides that connect to the terminals on the 30" wires attached to the tweeters. The quick slides on the attached 32" input wires connect the the terminals on the woofers. Because the crossovers are separate, the system can be bi-amped. Two-sided tape is included to mount the high-pass crossovers; their dimensions are:
- Width: 1¼"
- Height: 1"
- Length: 2½" (2¾" including wire)
Tweeter Output Level: Each crossover has three tweeter level options, allowing you to precisely tune the high frequencies to the car interior and tweeter placement. Using the supplied jumpers select -3 dB, 0 dB (flat), or +3 dB.
The Alpine R-S65C.2 replaces these items
Alpine R-S65C
- 6-1/2" hybrid fibre woofer with multi-roll rubber surround
- 1" silk dome tweeter
- handles up to 100 watts RMS (300 watts peak power)
