About the Alpine SPR-17S
Alpine SPR Component Systems
Alpine SPR Component Systems
If you appreciate good music, what better place to create an amazing audio system than in your car? Alpine's SPR Series component speakers offer you smooth, extremely accurate performance that'll set up a powerful soundstage.
High-tech woofers and tweeters
The SPR-17S component system utilizes 6-3/4" hybrid layered-pulp woofers that send out punchy midbass and vibrant midrange. Silk ring-dome tweeters highlight the vocals and instruments, delivering the subtle details that your old speakers could never reproduce. You can pivot the tweeters up to 15 degrees to optimize the stereo image in your car.
Crossovers direct the flow
External 2-way crossover networks direct the high and low frequencies to the correct speakers for seamless sound, high efficiency, and maximum clarity. You just might look forward to driving to work after you experience the change that Alpine components can make in your music.
Priced per system

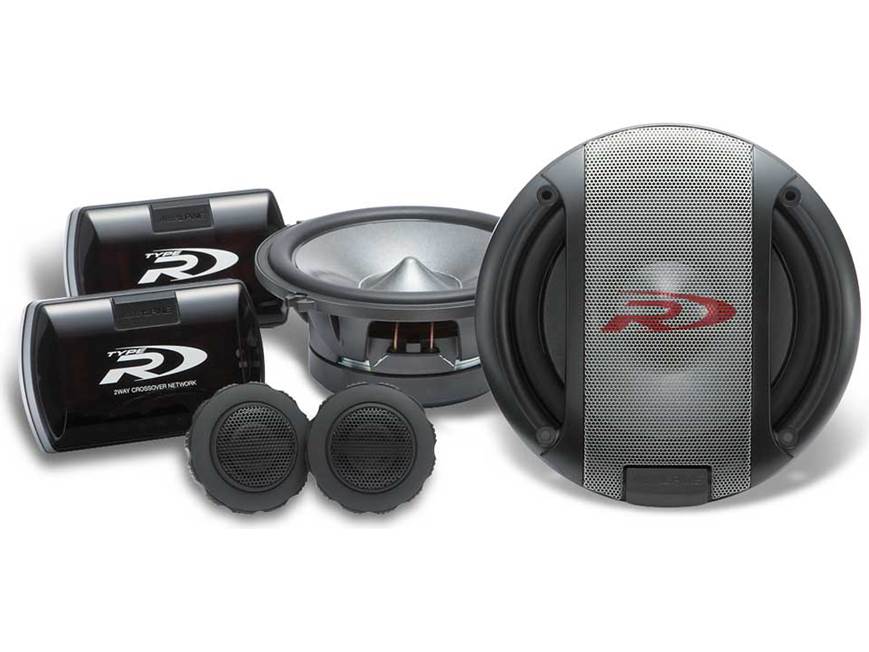

- system includes two 6-3/4" woofers, 2 tweeters, and 2 crossovers
- adapter plates included for fit in 6-1/2" and 6"x8" openings
- hybrid layered-pulp woofer with rubber surround
- 1" silk ring-dome tweeter
- external crossovers 12 dB/octave (high -pass) and 6 dB/octave (low-pass) crossover points
- 7-level tweeter adjustment
- power range: 8-110 watts RMS (330 watts peak power)
- frequency response: 65-27,000 Hz
- sensitivity: 87 dB
- top-mount depth: 2-3/8"
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # SPR-17S
What's in the box:
- 2 Woofers
- 2 Grilles
- 2 Adapter rings for GM/Chrysler
- Two 6x8 adapter rings
- 8 Self-tapping screws (4mm x 30mm)
- 8 Speed clips
- 4 Machine screws (M4 x 10mm)
- 4 Self-tapping screws (4mm x 10mm)
- Two 1" tweeters with attached 8.25' speaker wires (with bare wire ends) mounted in 2-piece flush mount cup assembly
- 2 Threaded tweeter rings
- 2 Plastic surface tweeter mounts
- 2 Self-adhesive foam rings
- 2 Self-adhesive foam pads (3-1/2" x 2")
- 2 Crossovers
- 4 Self-tapping screws (4mm x 18mm)
- 4 Flat speed clips
- Warranty sheet
- "Important Notice!" sheet
More details on the Alpine SPR-17S
Features & specs
|Tweeter Design||1" Ring-dome|
|Woofer Composition||Hybrid-fiber pulp|
|Parts Warranty||1 Year|
|Labor Warranty||1 Year|
|Sensitivity (1W at 1 meter)||87|
|Sensitivity at 2.83 volts||N/A|
|Frequency Response||65 - 27k Hz|
|Minimum RMS Wattage||8|
|Maximum RMS Wattage||110|
|Peak Power Handling (Watts)||330|
|Top-mount Depth (Inches)||2 3/8|
|Bottom-mount Depth (Inches)||2 5/8|
|Cutout Diameter or Length (inches)||5 5/16|
|Mounting Height (Inches)||0.414|
Woofers: The Alpine Type-R series component speakers feature woofer cones made of hybrid layered-pulp with mica coating for great bass response. For durability and superior linearity, the woofers have rubber surrounds.
Motor Structure: The High-performance Linear Drive Motor structure features a large magnet that is almost as big as the voice coil diameter. Its dual radial magnet and twin gap, combined with a square, edge-wound voice coil, gives the diaphragm linear movement over a much greater range. This design allows the speaker to be faithful to the input signal even during high excursion, for accurate musical reproduction and deep bass.
Adapter Rings: The SPR-17S component speakers come with two pairs of adapter rings. One set of rings allows you to install the woofers in 3-hole 6-3/4" GM/Chrysler installations or 3-hole 6-1/2" installations. The other set of rings will adapt the woofers for 6"x8" openings.
Tweeters: The SPR-17S component speakers are equipped with 1" (25mm) silk ring-dome tweeters for greater detail and bright, crisp highs.
Tweeter Mounting Options: The tweeters come installed in a swiveling flush-mount cup. You can also install the tweeters in a stealth mount when it will be hidden behind a factory grille. The stealth mount can be used as a top mount or a bottom mount.
Tweeter Mounting Dimensions:
|Flush Mount||Stealth Mount|
|Top Mount||Bottom Mount|
|Frame Diameter||2.27"||2.813" x 1.714"||2.813" x 1.714"|
Two-way Crossovers: The SPR-17S component speakers come with 2-way external crossover networks. The crossover features a 6dB/octave low pass filter for the woofers, and a 12dB/per octave high pass filter for the tweeters.
Tweeter Attenuation: The crossover has a 7-level tweeter adjustment to allow you to precisely tune your high frequencies. Using the supplied jumpers, you can select 0dB (no attenuation), or 6 levels of attenuation: -3dB, -4dB, -5dB, -6dB, -7dB and -8dB.
Input/Output Connections: The crossover features gold-plated screw terminals for the amplifier inputs and the woofer and tweeter outputs. The screw terminals are hidden by the crossover cover.
Crossover Mounting: There are two holes in the base of each crossover for the two mounting screws. Each crossover comes with flat speed clips.
Dimensions: The crossover has the following dimensions: Width=4.525", Height=1.265", Depth=2.864"
