About the Alpine X-S69C
Premium Alpine components
Premium Alpine components
If you've been an Alpine devotee from car to car, their X-Series speakers are your opportunity to take the leap to premium sound. Designed with a laser-focus on superior imaging, this 6"x9" component speaker system will bring out the very best in your audio system. And an all-new magnet design in a cast aluminum frame allows these speakers to have a low profile, so they can fit in a wide array of vehicles.
All about the build
Alpine uses a powerful magnet and a super-efficient motor structure to make the 6"x9" woofer really strong in the lower frequencies. The woofer cone itself uses a specialized fibre for extreme rigidity while Alpine's proprietary High Amplitude Multi-Roll surround ensures durability in the face of extreme temperatures.
Serious power handling
The separate 1" carbon graphite dome tweeter handles the high frequencies with satisfying accuracy, and its extended frequency response lends a sense of realism and atmosphere unmatched by lesser tweeters. Driven by an aftermarket amplifier, you'll really have a soaring system, thanks to power handling up to a whopping 120 watts RMS.
Product highlights:

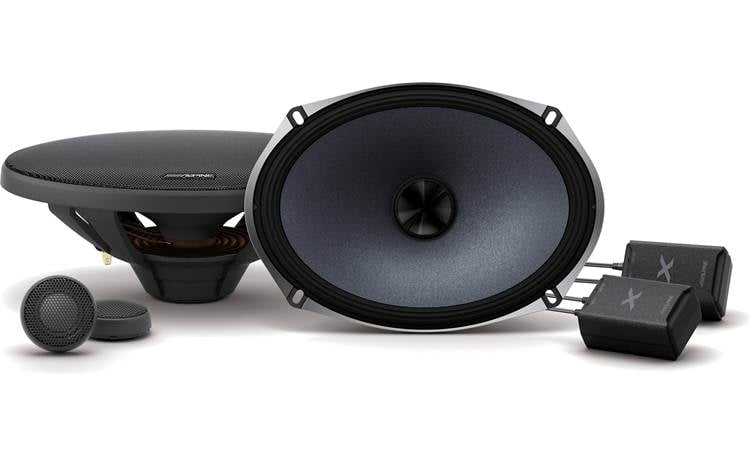

- component speaker system includes two woofers, two tweeters and two external crossover systems
- 6"x9" nano-fiber woofer with High Amplitude Multi-Roll surround
- 1" carbon graphite dome tweeter
- handles up to 120 watts RMS (360 watts peak power)
- frequency range: 45-50,000 Hz
- sensitivity: 89 dB
- woofer top-mount depth: 3-1/8"
- grilles included
- warranty: 1 year
- MFR # X-S69C
What's in the box:
- 2 Woofers
- 2 Woofer grilles
- 2 Grille badges
- 2 Tweeters (each has a 26" length of wire attached)
- 2 Tweeter grilles (installed)
- 2 Surface mount housings (with tweeters installed)
- 2 Bottom mount brackets
- Two tweeter crossovers (each has attached 32" input and 14" output wires)
- 2 Rectangular adhesive backed pads (crossover)
- 2 Circular adhesive backed discs (tweeter)
- Eight M4x60mm Machine screws (with washers attached)
- 8 Flat washers
- 8 Split lock washers
- Eight 1-1/8" Screws
- Eight 5/8" Screws
- 8 Speed-clips
- 4 Speed nuts
- Four 5" Zip ties
- Warranty information
- Important Notice
- On-line product registration information
- Templates and specs on box
Featured video:
Reviews (8)
Customer reviews for Alpine X-S69C
Loading reviews...
Average review:
4.5 out of 5 starsCustomer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Alpine X-S69C
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6X9 | |
| Design | 2-way | |
| Tweeter Design | 1" Dome | |
| Impedance (Ohms) | 4 | |
| Tweeter Composition | Carbon Graphite | |
| Woofer Composition | Nano-Fiber | |
| Woofer Surround | Rubber | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | 89 | |
| Sensitivity at 2.83 volts | N/A | |
| Frequency Response | 45 - 50k Hz | |
| Minimum RMS Wattage | --- | |
| Maximum RMS Wattage | 120 | |
| Peak Power Handling (Watts) | 360 | |
| Top-mount Depth (Inches) | 3 1/8 | |
| Bottom-mount Depth (Inches) | 3 3/4 | |
| Cutout Diameter or Length (inches) | 0 | |
| Mounting Height (Inches) | 0.411 | |
Product Research
Features
Cast Aluminum Frame: The woofers feature a cast aluminum frame. The frame is lightweight, yet rigid, to resist flexing during long cone excursions to deliver powerful bass.
Woofer Size: Some manufacturers, including Alpine, call this size woofer a 6-1/2". Because it requires a larger cutout than a standard 6-1/2" speaker, Crutchfield has traditionally referred to this size woofer as a 6-3/4". Please enter your vehicle information to confirm fit.
Neodymium Woofer Magnets: Because neodymium produces a much stronger magnetic field than ferrite (of the same size), the magnet size and mounting depth are reduced.
Tweeter Mounting Options: The tweeters come installed in a surface-mount housing. No flush mount option is included. The installed tweeter dimensions are:
| Surface Mount | |
| Mounting Depth | N/A (screw depth) |
| Mounting Height | 1.335" |
| Frame Diameter | 1.968" |
Crossovers: The tweeters' high-pass crossovers are in-line between the woofers and tweeters. Two-sided tape is included to mount the high pass crossovers and their dimensions are:
- Width: 1.81"
- Height: 1.21"
- Depth: 2.76" (3.25" including wire)
Tweeter Attenuation: Each crossover has three tweeter level options, allowing you to precisely tune the high frequencies to the car interior and tweeter placement. Using the supplied jumpers select -3 dB, 0dB (flat), or +6dB. Other jumpers allow reversing the tweeter phase.
