About the Rockford Fosgate PMX-RGB
Get the light just right on your boat
Get the light just right on your boat
The PMX-RGB Colour Optix™ controller gives total control over the LED colour options on your RGB-equipped Rockford Fosgate marine speakers and subwoofers.
Use the app and get the look you like
With a wireless connection to the free RF CONNECT™ App, you can control your Rockford Fosgate lighting from compatible Apple or Android devices. You can use the app to choose from 30 different colour scrolling options or choose a fixed colour from the colour wheel. You can also set the speed and brightness to suit your music or your mood.
Made for marine use
This rugged, watertight controller is Element Ready™ watertight, and IPX7 certified, so it'll have no trouble standing up to life on the water. Plug-in connections for the optional extension cables and Y-adapters are also rated IPX7, making it easier to design your Colour Optix™ RGB-LED lighting system.
Note: You will need an extension cable (sold separately) to connect any speaker to this controller. See Details for more information.
Product highlights:
- marine-ready controller for Rockford Fosgate PMX-RGB Color Optix speakers
- RF Connect app-compatible
- IPX7-rated Element Ready connectors
- operating voltage: 9 to 24 volts
- control up to 8 Color Optix speakers
- stainless steel mounting hardware included
- extension cable (sold separately) required for speaker connections
- warranty: 2 years
- MFR # PMX-RGB
What's in the box:
Rockford Fosgate PMX-RGB owner's manual

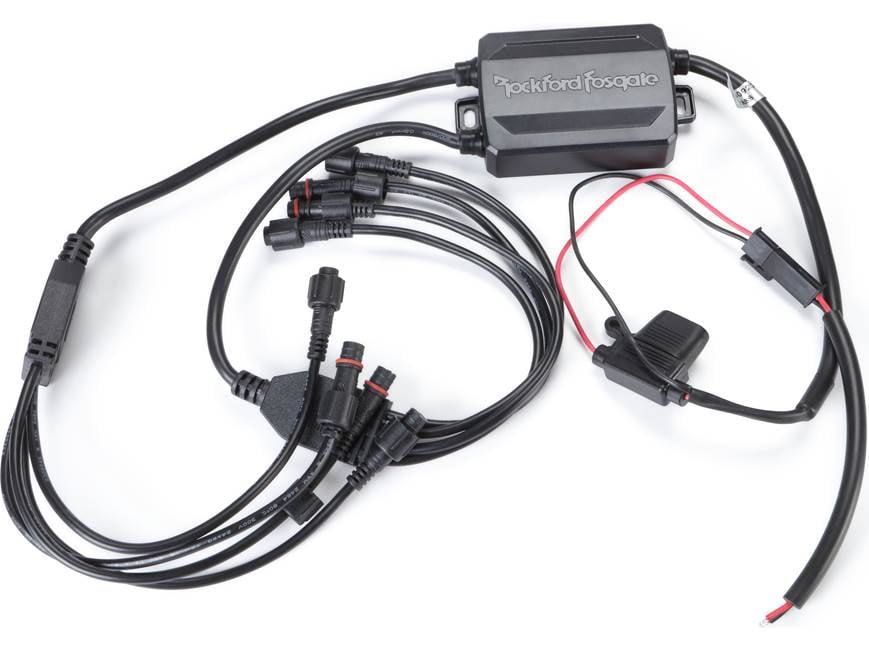

- PMX-RGB LED Controller w/ attached 17" LED cables and 17" power/ground harness (inline 2A ATC fuse)
- 6" Power/ground harness adapter
- Two 3/4" machine-screws
- 2 Nuts
- 2 Lock-washers
- Installation manual
Customer reviews for Rockford Fosgate PMX-RGB
Loading...
Loading reviews...
Average review:
2.5 out of 5 starsCustomer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Rockford Fosgate PMX-RGB
Product Research
Features
Color Optix Controller: The Rockford Fosgate PMX-RGB Color Optix controller lets you illuminate and control up to 8 Rockford Fosgate M1 & M2 Color Optix marine speakers and subwoofers (sold separately). Featuring a completely encased housing, rubberized wiring, and Element Ready watertight connectors, the PMX-RGB is IPX7 waterproof certified, making it impervious to even the harshest marine environments.
App Control: The PMX-RGB can be controlled from your smartphone using Rockford Fosgate's proprietary RF CONNECT App, available from the Apple App and Google Play stores. After connecting your smartphone wirelessly to the PMX-RGB controller, you'll be able to choose from 30 different color scrolling options or choose a fixed color from the color wheel. Scrolling speed and brightness controls are also available for customizing the lighting.
Wiring: The Rockford Fosgate PMX-RGB controller features easy configuration and connection via proprietary Element Ready connectors that provide a secure, watertight seal. It features 8 individual 17" RGB output cables for lighting up to 8 Rockford Fosgate Color Optix marine speakers (maximum 2A total current draw). 6', 16', and 25' extension cables, along with 4-pin and 6-pin Y-cables, are available (sold separately), letting you extend the distance of your RGB LED speakers from the PMX-RGB controller. Constructed with rubber-encased RGB wire and terminated with Rockford Fosgate's proprietary Element Ready connectors, the extension cables are designed to withstand the marine environment and carries an IPX6 weather-proof rating.
Powering: The PMX-RGB controller includes a 17" power and ground harness with inline 2A fuse, and has an operating voltage range of 9-24VDC.
Specifications:
- RGB Control Outputs: 8
- Maximum Amp Draw (Total): 2A
- Operating Voltage: 9-24VDC
- Waterproof Rating: IPX7
- Control Module Dimensions: W = 2.411", H = 0.913", D = 5.050"
- Overall Length: 38.5"
