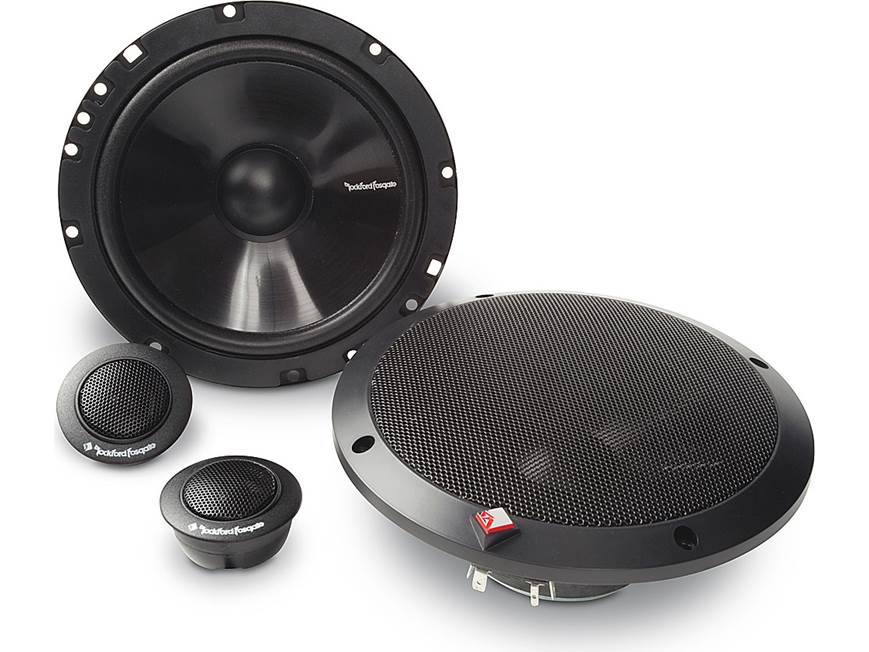

Rockford Fosgate Prime R1652-S 6-3/4" component speaker system

Item # 575R1652S

Put Rockford Fosgate sound in your car without breaking the bank.

Find what Fits your vehicle

Remove

Checking fit...

Put Rockford Fosgate sound in your car without breaking the bank.

Item # 575R1652S

Shop all Rockford Fosgate Component Speakers

About the Rockford Fosgate Prime R1652-S

Buck Pomerantz
Put Rockford Fosgate sound in your car without breaking the bank. Whether you're building your first system or replacing some burned-out factory speakers, Prime component speaker systems offer clean, powerful performance that'll keep you and your friends entertained as you drive.

Put Rockford Fosgate sound in your car without breaking the bank. Whether you're building your first system or replacing some burned-out factory speakers, Prime component speaker systems offer clean, powerful performance that'll keep you and your friends entertained as you drive.

The Prime R1652-S component system includes 6-3/4" woofers with stiff mica-injected polypropylene cones that deliver strong drums and bass, along with clean reproduction of the midrange frequencies. The separate 1" Mylar balanced dome tweeters top things off with vibrant highs that add excitement to your music without a trace of harshness. You can flush- or surface-mount the tweeters, so you can create the best possible soundstage, plus keep the installation neat. Built-in crossovers ensure a smooth audio response, so all your music plays faithfully.

Note: Rockford Fosgate describes this model as a 6-1/2" speaker. Most manufacturers designate this same frame size as a 6-3/4" speaker. For simplicity's sake we list it as a 6-3/4" speaker.

READ LESS

Product highlights:

  • component speaker system includes 2 woofers, 2 tweeters, and 2 woofer grilles
  • 6-3/4" mica-injected polypropylene woofer cone with foam surround
  • 1" Mylar balanced dome tweeter
  • power range: 2-40 watts RMS (80 watts peak power)
  • frequency response: 55-20,000 Hz
  • sensitivity: 89 dB
  • top-mount depth: 2-3/16"
  • grilles included
  • warranty: 1 year
  • MFR # R1652-S

What's in the box:

  • Two 6.5" woofers
  • Two 1" tweeters (with attached 6' speaker wire terminated by quick-slide connectors)
  • 2 Grilles
  • 2 Flush mounting brackets (installed)
  • 2 Surface mounting brackets
  • 2 Trim rings
  • Two 12' lengths of speaker wire (with bare-tinned wire on one end and quick-slide connectors on other end)
  • 4 Short self-tapping screws
  • 8 Long self-tapping screws
  • 8 Speed-clips
  • Installation/Operation Instructions (Eng/Fre/Spa)

Customer reviews for Rockford Fosgate Prime R1652-S

Loading reviews...

Average review:

4.5 out of 5 stars
13 reviews

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Rockford Fosgate Prime R1652-S

Pat M.

Features & specs

General
Speaker Size
Design 2-way
Tweeter Design Balanced dome
Impedance (Ohms) 4
Tweeter Composition Mylar
Woofer Composition Mica-poly
Woofer Surround Foam
Parts Warranty 1 Year
Labor Warranty 1 Year
Specifications
Sensitivity (1W at 1 meter) 89
Sensitivity at 2.83 volts N/A
Frequency Response 55 - 20k Hz
Minimum RMS Wattage 2
Maximum RMS Wattage 40
Peak Power Handling (Watts) 80
Top-mount Depth (Inches) 2 3/16
Bottom-mount Depth (Inches) 2 5/16
Cutout Diameter or Length (inches) 5 11/16
Mounting Height (Inches) 0.2375
Frame Width 6.785
Frame Length 6.785

Product Research

Features

Overview: The Rockford Fosgate Prime series Component System kits provide factory OEM replacement while still delivering authentic Rockford Fosgate sound. The Prime R1652-S is a dedicated 2-way component system utilizing a Mica injected polypropylene cone and a Mylar balanced dome tweeter. An in-line crossover and multiple tweeter mounting configurations allow for easy installation.

Woofer: The Rockford Fosgate Prime R1652-S utilizes a Mica injected polypropylene cone woofer for extended frequency response and accommodates direct OEM installation. The woofer features a foam surround and stamped steel basket.

Tweeter: The Prime R1652-S features a 1.0" Mylar balanced dome tweeter that reproduces crystal clear highs and smooth extended frequency response. This low distortion material allows accurate reproduction of high frequencies for an open sound stage.

Crossover: The R1T-S tweeter has an integrated 6 dB/octave high-pass crossover fixed at 12,000 Hz. The in-line crossover simplifies your installation. The woofer has natural roll-off characteristics that allow it to exhibit great acoustic crossover filtering.

Mounting: The Rockford Fosgate Prime RS1652-S's mounting ring has multiple mounting holes for various 6-3/4" applications. The included 1.0" tweeters offer multiple mounting configurations. You can choose a flush mount, surface mount, or angle mount installation. You can further angle the tweeter once installed in any of the included mounts.

Tweeter Mounting Dimensions Flush Surface Angle
Mounting Height 0.3125" 1.095" 1.875"
Mounting Depth 0.75" 0.6875" (screw depth) 0.625" (screw depth)
Frame Diameter 2.125" 1.815" 1.815"
Cutout Diameter 1.835" N/A N/A
