About the Rockford Fosgate RZR14-STG2
Great sound for the great outdoors
Great sound for the great outdoors
The Polaris RZR is a high-performance side-by-side with plenty of power, and Rockford Fosgate's Stage 2 RZR kit is the easiest way to add more power to your audio system. With a marine digital media receiver and four powerful marine speakers, this system will add some serious thump to your off-road adventures.
No cuts, no muss, no mods
Rockford Fosgate designed this package to fit right into your RZR, with no cutting and no modification needed (minimal drilling required). It also comes with all the parts and pieces needed for a smooth, hassle-free installation. Each component is tough enough for trail duty, so you won't have to worry about your audio gear getting swamped.
A rugged and rockin' receiver
Rockford Fosgate's PMX-1 digital media receiver packs a lot of features into a compact, water-resistant package. This trail-ready stereo features built-in Bluetooth®, so you can stream music stored on your phone, or tune into Pandora® and enjoy your favourite playlists. If you prefer to plug in, you'll find an aux input, plus a USB input that will charge your phone while you're playing music. Speaking of charges, the PMX-1 also has a low-voltage warning alert built-in, so you won't accidentally drain your battery. This kit includes a custom-designed kit that holds the receiver and blends into your dash.
Four speakers for awesome sound
The package includes two pairs of 6-1/2" marine speakers, two for the front and two loaded into cage-mountable enclosures. The durable poly cones withstand moisture and sunlight, as do the 1/2" dome tweeters in the grilles. They're really easy to install, too, thanks to the made-for-the-RZR speaker enclosures included in this kit. These rugged enclosures bolt right in using the factory mounting holes with just a little bit of drilling.
Bluetooth note: Use of this receiver's Bluetooth features will depend upon your phone's Bluetooth capabilities. Learn more in our article explaining Bluetooth profiles.

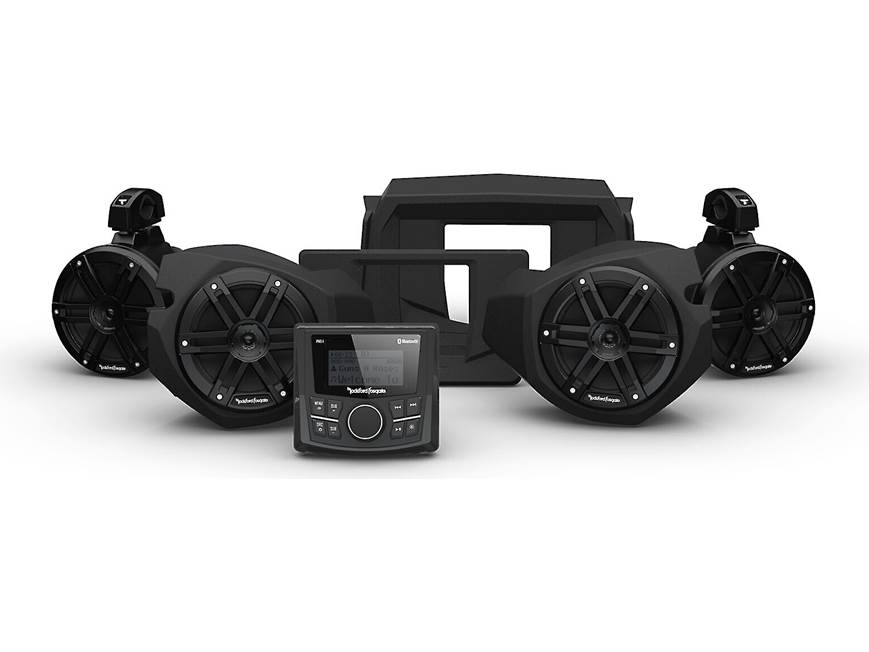

- system includes marine digital media receiver, four speakers, dash kit, speaker enclosures, and wiring
- comes with all necessary mounting and installation hardware
Rockford Fosgate PMX-1 marine digital media receiver (does not play CDs)
- built-in amplifier (25 watts RMS/50 peak x 4 channels)
- built-in Bluetooth for music streaming (will not make calls)
- works with Apple and Android smartphones
- USB port and aux input
- rugged Element Ready design
- 2.3" dot matrix display
- global AM/FM/Weather tuner (antenna not included)
- warranty: 2 years
Rockford Fosgate M0-65B 6-1/2" 2-way marine speakers (two pairs)
- power handling up to 65 watts RMS (250 watts peak)
- two front speakers mounted in custom enclosures,
- two rear speakers mounted in cage-mountable enclosures
- UV-stable Centrex® injection-molded plastic parts
- 1/2" dome tweeters
- warranty: 2 years
- MFR # RZR14-STG2
What's in the box:
- This package contains 6 individually boxed items:
- PMX-1 Receiver:
- Marine digital media receiver
- Mounting plate
- Mounting bracket
- 12-Pin wiring harness
- 4 Machine screws
- 4 Hex-nuts
- Operation Manual
- M0-65 Coaxial Speakers:
- Two 2-way marine speakers
- Twelve 1-1/4" Stainless steel Allen head screws
- Two 3mm Allen head bits
- 3.5mm Drill bit
- Instruction manual (Eng/ Fren/ Span/ Others)
- Rockford Fosgate contact information
- M0WL-65MB Moto-Can Speakers:
- Two M0 6.5" Moto-Can speakers w/installed sport grille
- 2 Upper mounting brackets
- 2 Lower mounting brackets
- Four 1.0" - 1.6" rubber shims w/mounting hardware (four 1-3/8" bolts / 4 flat washers / 4 lock washers)
- Four 1.6" - 2.0" rubber shims w/mounting hardware (four 1-3/4" bolts / 4 flat washers / 4 lock washers)
- Two 12" 6-pin wire harnesses w/Deutsch connectors and integrated rubber seals
- 2 Connection cover-plates
- 4 Plastic grommets
- 1/8" Hex bit
- T-45 Torx wrench
- Instruction manual
- Contact information card RZR14-FSE 6.5" Enclosures:
- 2 Empty speaker pods w/ attached 38" wire harness
- 2 Threaded studs
- 4 Mounting screws
- 2 Mounting bolts
- 6 Washers
- Hex-head screwdriver
- Five 8" wire-ties
- Rockford Fosgate Contact information
- RZR14-DK Radio Mounting Kit:
- Metal mounting plate
- Plastic mounting frame
- 2 Outer trim-panels (upper/lower)
- 36" 12-Pin power/ground/speaker harness
- 6' Wire antenna (Motorola plug on one end / bare-ended wire on other end)
- 24 Hex-socket screws
- Rockford Fosgate Contact information
- MX-RSW16 Speaker Harnesses:
- Two 17.5' Rear speaker harnesses
- Six 6" wire-ties w/ push-fastener ends
- Sixteen 7.5" wire-ties
- Contact information card
Customer reviews for Rockford Fosgate RZR14-STG2
More details on the Rockford Fosgate RZR14-STG2
Polaris Compatibility: The Rockford Fosgate RZR14-STG2 audio system can be used with the following Polaris RZR vehicles:
|RZR 900 XC¹||2015-2021|
|RZR 2 900 EPS¹||2014-2018|
|RZR 4 900 EPS¹||2014-2021|
|RZR RS1||Not compatible|
|RZR S 900||2014-2021|
|RZR S 1000¹||2017-2021|
|RZR S4 1000||2019-2021|
|RZR XP 1000¹||2014-2021|
|RZR XP Turbo¹||2016-2021|
|RZR XP Turbo S²||2019-2021|
|RZR XP Turbo Dynamix Edition||2018-2021|
|RZR XP 4 1000¹||2014-2021|
|RZR XP 4 Turbo¹||2016-2021|
|RZR XP 4 Turbo S²||2019-2021|
|RZR XP 4 Turbo Dynamix Edition||2018-2021|
|RZR XP 1000 Trails & Rocks||2019-2021|
|RZR XP 1000 High Lifter||2014-2021|
|RZR XP 4 1000 High Lifter||2014-2021|
|RZR Pro XP (all models)³||Not compatible|
¹ 2014-2018 Models only compatible with
lower pocket assembly supplied with dash kit.
² The 2-seat Turbo S shipped in early 2018 and the 4-seat Turbo S shipped in October 2018, however both are considered 2019 models and are compatible.
³ The RZR Pro XP (all models) features a different chassis and body panels and is not compatible.
Marine Certified: Rockford Fosgate's PMX series of source units are fully tested against UV radiation degradation as well as tested to IPX water intrusion standards. They are also fully tested for ever changing environmental conditions such as temperature extremes, as well as vibration testing to make sure they can take a bump and keep performing. The PMX-1 is protected against Dust, UV, Temperature, Water, Corrosion & Vibration.
- Dust: The unit's display and motor structure are sealed up tight so they look as clear as possible and perform day in and day out no matter how many times you hit the trails.
- UV Inhibitor Materials: Centrex and ASA plastic materials are used for UV radiation resistance and components are tested in accordance with ASTM D4329 testing and certification procedures.
- Thermal Shock Tested: Tested for extreme temperature operation as well as severe fluctuations in ambient temperature. Components are taken to both low and high temperature extremes and then tested to ensure operational capabilities.
- Water Tested: IPX5 and IPX6 Ratings allow for the components to be directly sprayed with water without water incursion.
- Corrosion Protection: Two part epoxy coated PCB boards prevent corrosion of critical components due to exposure in moisture rich environments.
- Vibration: Subjected to full vibration and shock testing to ensure that it will take abuse and keep performing to our stringent standards.
Applications: The PMX-1 digital media receiver is designed for marine and motorsports systems.
Optically Bonded LCD: The Rockford Fosgate PMX-1 features a 2.3" LCD screen (with white background and black text) for optimum viewing, even in full sun. The LCD screen is optically bonded to prevent any dust or moisture penetration. There are two brightness settings for the LCD screen.
Water Resistant Control Knob: The PMX-1 uses a water resistant rotary encoder knob, along with push-button controls that feature white LED illumination.
Voltage Gauge & Warning: You can check the voltage of your system through the PMX-1's menu. The unit also provides a Low Voltage Warning Alert.
EEPROM (Electrically Erasable Programmable Read-Only Memory): The Rockford Fosgate PMX-1 features an EEPROM memory system which retains settings (including Audio & Bluetooth settings) even when power is removed.
Bluetooth Music Streaming: The Rockford Fosgate PMX-1 offers built-in Bluetooth (version 3.0+EDR) for wireless music playback from your Bluetooth-enabled Apple iPod/iPhone/iPad, Android smartphone/tablet, Windows phone, Blackberry, and more. You are able to stream stored music and music apps from your Bluetooth device to the PMX-1 marine receiver. You can control basic playback functions like Play/Pause, Previous Next/Track and Repeat/Shuffle for stored music and music apps on your device. When using a Bluetooth AVRCP 1.4 compatible device like the Apple iPhone (iOS 5.0+) or an Android smartphone (OS 4.0+), you can even browse your stored music by category (Playlist/Artist/Song/Genre). The PMX-1 will also display your device's song/artist information with album art.
USB Port: The Rockford Fosgate features a rear-panel USB (type-A) port for connection of a USB mass storage class device, like a USB thumbdrive or flashdrive. The unit supports playback of MP3 and WMA music files loaded onto a USB MSC device (up to 32GB). It can recognize up to 255 folders and 999 files. You are able to browse your music by folders, as well as control basic playback functions like Play/Pause, Previous/Next Track and Repeat/Random. The USB port (1A) will also charge a connected USB-enabled electronic device.
Aux Input: The Rockford Fosgate PMX-1 is fitted with a rear-panel stereo RCA AUX input to connect an external audio source. You can give the Aux input a custom name.
AM/FM Tuner: The PMX-1 features a built-in AM/FM tuner with manual, seek, and preset tuning. You can store up to 18 FM and 12 AM preset stations; these presets can be stored manually or automatically. You can set the tuner to Local or Distance tuning. The Local option tunes to nearby radio stations with sufficiently strong signals for good reception. In areas where reception is poor, switching to Distance tuning enables the unit to tune in to more distant stations. You can choose between US or European tuning.
Weather Band: The Rockford Fosgate PMX-1 is also equipped with a built-in weather band tuner. Select from weather band frequencies between 162.40 to 162.55.
MOSFET Amplifier: The PMX-1 is equipped with a MOSFET amplifier. Compared to conventional power supplies, the MOSFET amplification circuit is smaller and more efficient, and it delivers increased power with less distortion and absolutely zero on/off switching noise. More power means louder and cleaner music at higher volumes because you're not pushing the limits of the amplification circuit.
- Full Bandwidth Power: 25 watts RMS x 4 channels (at 4 ohms, 20-20kHz, 1% THD)
- Maximum Output Power: 50 watts x 4 channels (200 watts total)
4V/4Ch Preouts: The Rockford Fosgate PMX-1 is equipped with two pair of 4-volt preamp outputs (Front & Rear/Sub). You can configure the Rear/Sub pre-out for rear speakers with fading capability or as a non-fading sub output. You can turn off the unit's internal amplifier, you plan on using only external amps.
Equalizer: The PMX-1 is equipped with a variety of EQ presets, and 7-Band EQ, and Rockford Fosgate's Punch EQ.
- Presets: Select between seven EQ presets - FLAT, ROCK, CLASSIC, ACOUSTIC, DANCE, ELECTRONIC, or HIP-HOP.
- 7-Band EQ: Use the built-in 7-band EQ to custom tailor the sound of your music to your liking.
- Punch EQ: Punch EQ is an onboard equalizer with up to +18dB at 45Hz and/or up to +12dB boost at 12.5kHz.
High-Pass & Low-Pass Crossovers: The PMX-1 provides a high-pass crossover for the front & rear channels which can be set to 60Hz, 80Hz, 120Hz, or Full-Range. The unit also provides a low-pass crossover for the subwoofer output that can be set to 60Hz, 80Hz, 120Hz, or Full-Range.
Sub Control: When the sub out is activated, you can independently adjust its volume level from 0 to 20.
Source Gain: You can adjust the gain of each source so they all play at the same volume level. Select between -3dB, -2dB, -1dB, 0dB, +1dB, +2dB, or +3dB for each source.
Key Beep: A beep tone will sound with any press of a button on the receiver. This can be turned on or off.
Marine Tested: Rockford Fosgate uses industry standard tests (ASTM B117 salt/fog and ASTM G154 UV) to ensure the M0-65 speakers are durable in the difficult marine environment.
Tweeters: The ½" balanced dome tweeters are made of LCP (liquid crystal polymer), a high strength/light weight material. The tweeters are bridge mounted to the grille, useful in a marine speaker because no opening through the middle of the woofer for the mounting post is needed.
ICC Crossover: The ICC (Integrated Concealed Crossover) simplifies installation and protects the crossover by concealing it inside the basket, creating a cleaner look and easier installation. The crossover has a 6 dB/octave slope.
VAST Surround: The Vertical Attach Surround Technique (VAST) increases a speaker's effective radiating cone area without increasing the size of the basket.
Klippel Verified: The Klippel distortion analyzer, a device that uses a laser and sophisticated software to do large-scale analysis of drivers in motion, lets Rockford Fosgate optimize the speaker's motor structure, voice coil alignment, and suspension to yield the best possible performance.
Stainless Steel: The mounting hardware is stainless steel to resist corrosion.
Moto-Can Speakers: The Rockford Fosgate M0WL-65MB Moto-Can speakers each feature an 6.5" 2-way speaker mounted in a sealed enclosure. Built for off-road use, both the speakers and enclosures are part of Rockford Fosgate's "Element Ready" products, designed to stand up to water, dirt, mud, and UV rays.
Two-Way Design: The Rockford Fosgate M0WL-65MB Moto-Can speakers come loaded with an M0-65 Series 6.5" 2-way marine speaker, designed to provide superb low and midrange frequencies with a smooth high-frequency roll-off. Both the tweeter and woofer have been treated for UV radiation and salt-fog resistance for maximum outdoor lifespan.
- 0.5" Tweeter: The M0WL-65MB features a 0.5" dome tweeter for crisp, clear highs. The tweeter is coaxially mounted to the 6.5" woofer.
- 6.5" Woofer: The woofer is made of a mineral filled, injection molded polypropylene material and features integrated UV inhibitors protecting it from sun exposure. This is attached to the UV stable injection molded frame assembly by a VAST vertically attached surround, designed to increase the cone's effective radiating area by up to 25%.
- Integrated Crossover: The M0WL-65MB features an integrated 6dB/octave crossover network.
- Klippel Verified: The Klippel distortion analyzer, a device that uses a laser and sophisticated software to do large-scale analysis of drivers in motion, lets Rockford Fosgate optimize the speaker's motor structure, voice coil alignment, and suspension to yield the best possible performance.
Power: Each Rockford Fosgate speaker can handle up to 65W RMS (250W peak).
Rugged Enclosure: The enclosures are constructed of high density ASA material and coated with a UV inhibitor to withstand the harsh outdoor environment.
IPX6: The M0WL-65MB speakers carry an IPX6 waterproof rating, making them impervious to water spray from all directions.
Mounting: The Rockford Fosgate M0WL-65MB speakers are designed to be mounted to SXS ROPS (Roll Over Protection System) tubing ranging from 1.0" - 2.0" in diameter. Stainless steel mounting clamps are included that provide up to 360° of rotation for optimal speaker aiming, and include rubber shims for a secure fit.
Grilles: Each speaker includes a UV stable, ASA plastic Sport grille (black).
Wiring: Wire connections to the M0WL-65MB speakers are made through the two provided 12" 6-pin wire harnesses (only 2 pins are used) with Deutsch marine-grade connectors. Both wire harnesses feature integrated rubber seals that prevent water and dirt ingress when the connector is attached to the speaker
Dash Kit: The Rockford Fosgate RZR14-DK dash kit is designed to facilitate the installation of the Rockford Fosgate PMX-1 digital marine source unit into select Polaris RZR model ATVs. This kit is custom molded to match the existing dash and mounts in place of the center pocket door using the factory (OEM) mounting holes. All mounting hardware for the source unit and dash kit are provided. The kit also allows the PMX-1 radio to be installed in the lower factory pocket (2014-2018 models) or factory upper pocket (2019-up models).
Front Speaker Enclosures: The Rockford Fosgate RZR14-FSE front speaker enclosures are designed to be a direct fit for select 2014-2021 Polaris RZR models. The enclosures are constructed of reinforced polymer along with a UV resistant finish and are roto-molded for a seamless speaker mount that's both lightweight and durable. The speaker enclosures are also color and texture matched to the vehicle's interior and are a direct bolt-in using the OEM mounting holes. Pre-attached wiring harnesses in each enclosure provide a direct plug-in to the factory wiring and to each speaker.
Rear Speaker Wiring: The MX-RSW16 kit includes two pre-configured 17.5' wire harnesses for use with the rear speakers. Each harness is terminated with Deutsch marine-grade connectors that are designed for "plug-and-play" installation. The MX-RSW16 wire harnesses are Element Ready to withstand even the harshest outdoor environments.
The Rockford Fosgate RZR14-STG2 replaces these items
- system includes a digital marine receiver, two speakers, two pods, dash kit, wiring
- Rockford Fosgate PMX-2 marine digital media receiver (does not play CDs)
- Rockford Fosgate RM1652B 6-1/2" 2-way marine speakers
