About the Rockford Fosgate Power T2S1-16
Pushing the envelope
Pushing the envelope

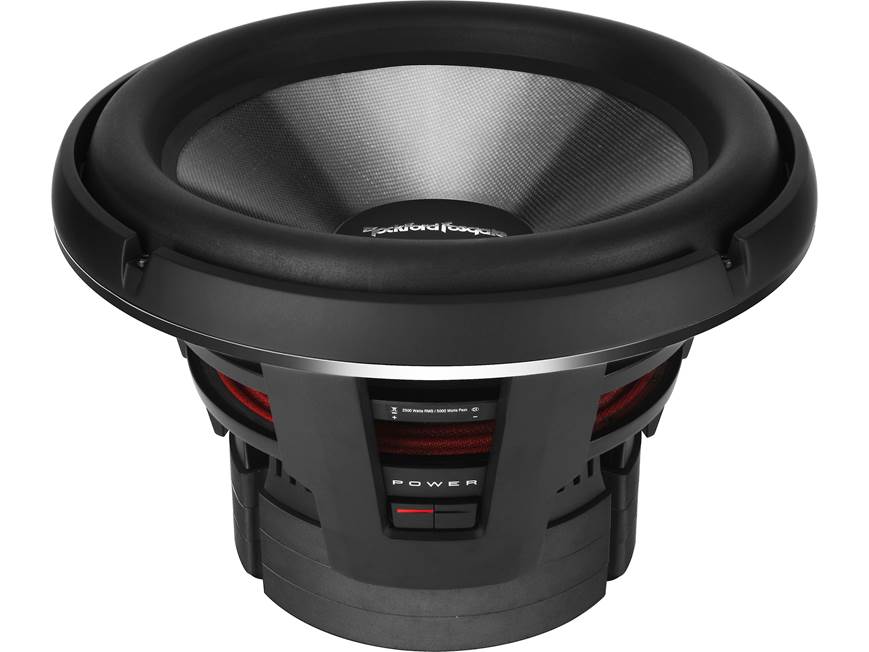

Rockford Fosgate has long been in the forefront of car speaker innovation, and they've taken their game to new heights with their T2 Series subwoofers.The Power T2S1-16 subwoofer uses Rockford Fosgate's VAST cone attachment technique to achieve an increase of up to 25% in radiating cone area, allowing the 16" cone to deliver some crazy low-frequency thump. The cone's carbon fibre/honeycomb aramid/glass fibre construction keeps things solid even at high SPLs, so the sub can handle up to a massive 2500 watts RMS.
16 inches. No, seriously.
Boom inside
The T2's internal structure contributes to its high performance. The aluminum diecast frame integrates heat sink fins for maximum heat dissipation, and the triple-stacked segmented motor structure and 4-inch voice coil keep the bass booming even in extreme applications. And take a look — when isn't this Rockford Fosgate 16" subwoofer extreme?
This T2 sub represents another step forward for Rockford Fosgate, and could be just the step you've been waiting to take.
Highlights:
- 16" 1-ohm subwoofer
- glass fiber/honeycomb aramid/glass fiber cone with aluminum dustcap
- injection molded foam surround
- Vertical Attach Surround Technique (VAST) increases cone area
- handles up to 2500 watts RMS (5000 watts peak)
- sensitivity: 89 dB
- top mount depth: 10.47"
- sealed box volume: 2.4 cubic feet
- ported box volume: 4.4 cubic feet
- grille not included
- warranty: 1 year
- MFR # T2S1-16
What's in the box:
Rockford Fosgate Power T2S1-16 owner's manual
- One 16" Single voice coil 1-ohm subwoofer
- Trim ring (attached)
- 12 Allen head screws
- Allen head bit
- Installation/Operation manual (English/ French/ Spanish/ German)
Customer reviews for Rockford Fosgate Power T2S1-16
Loading...
Loading reviews...
Average review:
5.0 out of 5 starsCustomer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Rockford Fosgate Power T2S1-16
Features & specs
| Features and Specs | ||
|---|---|---|
| Size | 16 -inch | |
| Impedance (Ohms) | 1 | |
| Cone Material | Glass/Aramid Honeycomb | |
| Surround Material | Foam | |
| Port diameter (inches) | N/A | |
| Port length (inches) | N/A | |
| Free-Air | No | |
| Dual Voice Coil | No | |
| Sensitivity |
89 dB at 1 watt | |
| Frequency Response | 21 - 250 Hz | |
| Max RMS Power Handling | 2500 | |
| Peak Power Handling (Watts) | 5000 | |
| Top Mount Depth (inches) | 10 1/2 | |
| Bottom Mount Depth (inches) | N/A | |
| Cutout Diameter or Length (inches) | 15 1/16 | |
| Frame Width | 17.79 | |
| Frame Length | 17.79 | |
| Vas (liters) | 90 | |
| Fs (Hz) | 28.5 | |
| Qts | 0.49 | |
| Xmax (millimeters) | 34 | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Box Requirements | ||
| Ideal Sealed Box Volume (cubic feet) | 2.4 | |
| Minimum Sealed Box Volume (cubic feet) | 1.79 | |
| Maximum Sealed Box Volume (cubic feet) | 2.79 | |
| Ideal Ported Box Volume (cubic feet) | 4.4 | |
| Minimum Ported Box Volume (cubic feet) | N/A | |
| Maximum Ported Box Volume (cubic feet) | N/A | |
Product Research
Features
Enclosure Compatibility
Features
Woofer: The woofer cone is a three layer design, glass fiber/aramid honeycomb/glass fiber with an aluminum dust cap.
VAST Surround: The Vertical Attach Surround Technique (VAST) increases a speaker's effective radiating cone area without increasing the size of the basket. The surround is made of injection molded foam.
Terminals: The spring loaded terminals will accept bare wire up to 8-gauge.
CEA-2031 Compliant: Power handling conforms to CEA-2031 industry standards. This means the subwoofer has the capacity to handle its rated power under continuous demand, not just for an instant.
Klippel Verified: The Klippel distortion analyzer, a device that uses a laser and sophisticated software to do large-scale analysis of drivers in motion, lets Rockford Fosgate optimize the speaker's motor structure, voice coil alignment, and suspension to yield the best possible performance.
FlexFit Basket: The Flex Fit frame utilizes slots (where possible) instead of single screw sized holes; allowing slight adjustment of the speaker when mounted.
Enclosure Compatibility
Sealed Box: When using a sealed enclosure, Rockford recommends an ideal internal volume of 2.4 ft³ (1.79 ft³ to 2.79 ft³ acceptable), resulting in a -3dB point of 43.3 Hz and Qtc of 0.74. Sealed enclosures provide the most control over a woofer, will handle a lot of power, and provide accurate sonic reproduction, making them suitable to all types of music.
Ported Box: The recommended ported enclosure volume is 4.4 ft³ (5.5 ft³ minus 1.1 ft³ port displacement) with a slot port measuring 18" x 3" x 23", resulting in a tuning frequency of 35 Hz and a -3dB point of 29 Hz.
