About the Boyo VTL375LTJ
Perfect placement and built-in LEDs
Perfect placement and built-in LEDs
This Boyo backup camera gives you a slim-profile license plate frame that doesn't call attention to itself and provides a simple, subtle mounting location. The clean design doesn't obscure your license plate, making it a solid choice in all fifty states. Boyo uses a sturdy zinc metal frame for a long life and mounts the waterproof rear-view camera on an up-and-down swivel, so you can get exactly the picture you want.
Active parking lines
Be more precise when you back up with active parking lines that curve as you turn. This cam predicts your trajectory and shows you where you're headed in reverse so no spot is too tight.
Excellent, wide-angle picture
Boyo uses a CMOS image sensor that gives you the best picture possible and a 175º wide angle for a comprehensive view. Also, built-in LEDs illuminate the way when it's dark outside. The package includes a 23-foot video cable that runs from the camera to the video screen up front.
Note: A rear-view camera provides an additional view when reversing your vehicle. It is intended to be used in conjunction with your rear- and side-view mirrors to give a fuller picture of what's behind you. It is not intended as a replacement for your mirrors.
Installing this camera yourself? Here's what you should know.
What does it do? Unless otherwise noted, a backup camera is only intended for use backing up your vehicle. (If you require a front-view or constant rear-view camera, check for that capability.)
What tools and supplies will I need? A panel tool, a wire cutter/stripper, a soldering iron, and a rosin-core solder with heat shrink tubing are recommended, along with whatever tools are needed to remove the radio from the dash.
How much wiring is required? Wiring instructions vary from camera to camera. Some cameras have power wiring that can only be connected near the radio. Others let you power the camera at compatible reverse lights. In all cases, the camera must be wired for power and ground, the camera's video output must be connected to the radio/monitor, and the radio/monitor must be connected to a reverse trigger in your vehicle. Some radio replacement interfaces supply a reverse trigger wire for the radio -- using that wire to power your camera will damage the interface.
Will the included video cable be long enough? You'll need to route the camera's video cable from its mounting location outside your vehicle into your vehicle's cabin and all the way to the screen in the dash. This often requires drilling a small hole in your vehicle or filing some metal and or plastic. You'll also need to estimate the length of cable needed to run from the camera to the dash, which will not be a straight shot. Each camera's cable length is listed.
Product highlights:
- color CMOS backup camera and full-frame license plate mount
- includes 23-foot video cable and mounting hardware
- super-slim chrome zinc metal frame
- active parking lines
- built-in LED lights for great night images
- universal fit
- compatible with any radio with an RCA video input (most aftermarket models, only a few factory)
- 175-degree wide angle
- waterproof (IP68 rating)
- resolution: 700 TV lines
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # VTL375LTJ

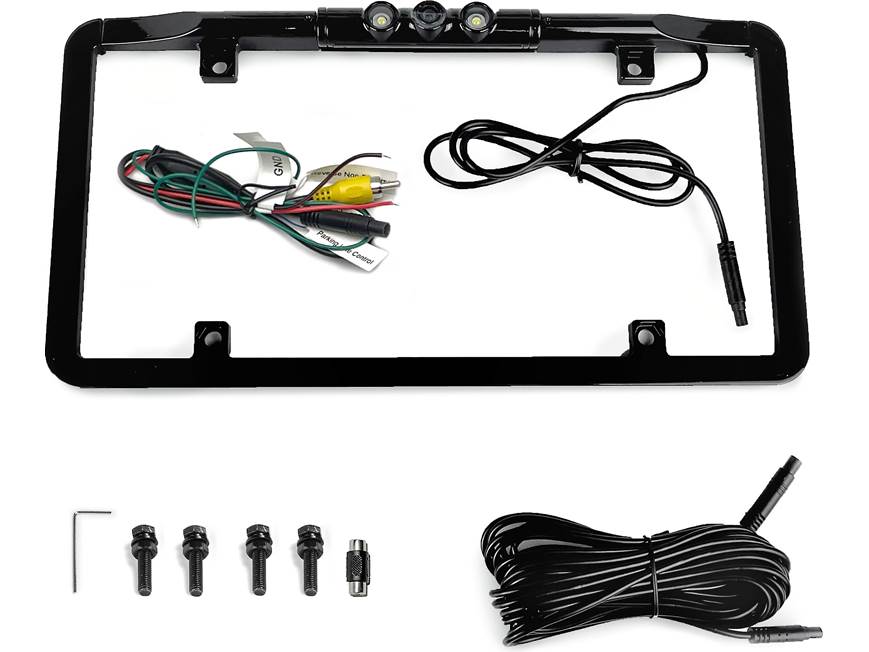

What's in the box:
- License plate frame (black) with integrated camera and LEDs (attached 4.5' video cable terminated in a 4-pin plug)
- 24' Video extension cable (4-pin connector on each end)
- 14" 4-Pin to composite video adapter cable (attached 4" power/ground wires along with blue & white loop-wires)
- Composite video barrel-connector
- Four 1-1/8" hex-head bolts
- 4 Lock-washers
- 4 Flat-washers
- 4 Nuts
- 1.5mm Allen key
- Instruction manual
- Warranty information
- Product registration card
Reviews
Customer reviews
Loading reviews...
Boyo VTL375LTJ reviews
Average review:
Customer photos
More details on the Boyo VTL375LTJ
Features & specs
| Features and Specs | ||
|---|---|---|
| Camera Type | Rear | |
| Resolution | 960x480 | |
| Parking Guidelines | ||
| Lux Rating | 0 @F2.0 | |
| Selectable Views | N | |
| Reversed Image | Both | |
| Horizontal Viewing Angle | --- | |
| Vertical Viewing Angle | --- | |
| Wireless | No | |
| Plug type | Composite video | |
Product Research
Features
Overview: The Boyo VTL375LTJ backup camera features an integrated license-plate bracket and CMOS camera with dual integrated LEDs. The Boyo backup camera can provide a clear, 175° wide (diagonal) picture of what's behind your vehicle, even at night.
Note: The Boyo VTL375LTJ is meant as a driving aid only; never solely rely on the camera. In addition to using the camera, always look around you to make sure everything is clear.
Universal Fit: The VTL375LTJ license-plate frame is designed to mount around a standard license plate and includes a total of 29.5' of video cable, allowing it to be installed in most consumer vehicles. The camera angle can be adjusted up or down to match any license plate height. The included 4-pin video extension cable gets run from the rear of the vehicle to the front. A 14" adapter is provided, converting the 4-pin cable to a standard composite video plug, allowing it to be used with most aftermarket in-dash video screens. The camera includes a built-in 31" video cable with 4-pin connector.
LEDs: The Boyo license-plate frame includes two built-in 3W LEDs to light up the area behind you when reversing. A bare-ended green wire on the 4-pin-to-composite video adapter cable must be connected to a switched power source, such as the vehicle's reverse wire or to the fuse box using an optional toggle switch (not included).
Wire Loop Switches: The VTL375LTJ includes blue and white loop wires on the 4-pin-to-composite video adapter cable that can be used for selecting or de-selecting Dynamic Park Assist Lines and Image Selection.
- Dynamic Park Assist Lines: The Boyo VTL375LTJ will display park assist lines on your connected monitor to aid you in backing up into a parking spot. A built-in gyro-sensor allows the park assist lines to dynamically curve as you steer and angle your vehicle. The camera comes default with the parking guide lines On; cutting the blue loop wire will remove the parking guide lines.
- Image Selection: Designed primarily as a backup camera, the VTL375LTJ's default display is a Reverse (Mirror) image. If a Normal image is desired, or if the camera will be mounted on the front of a vehicle, the white loop wire can be cut for a Normal display.
Weatherproof: The Boyo VTL375LTJ's camera and zinc-plated mount carry an IP68 rating for long-lasting outdoor use.
