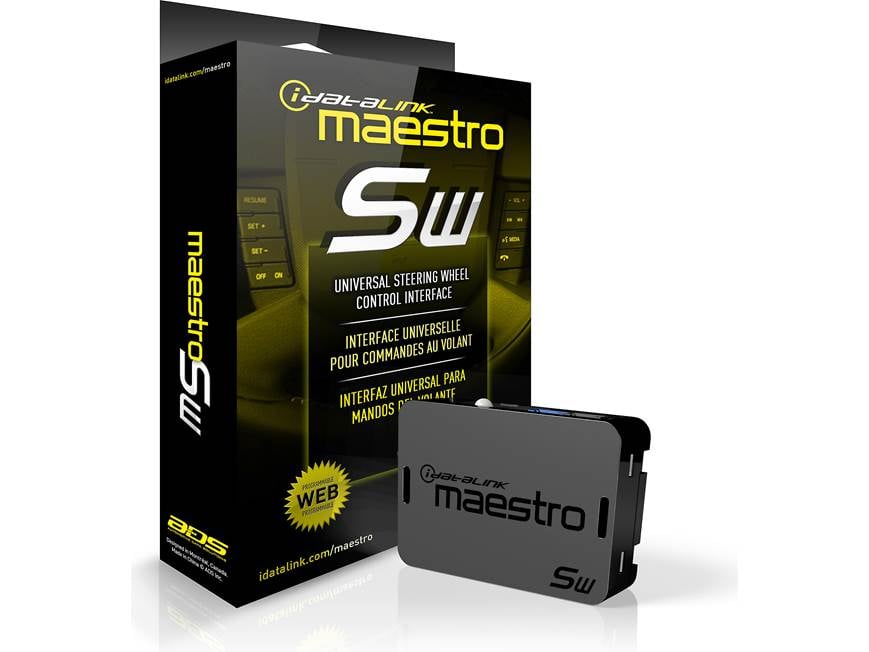

About the iDatalink Maestro SW Steering Wheel Control Adapter

Don't lose control
Don't lose control
You're tired of your car's stock radio, but you don't want to lose the convenience of your steering wheel audio controls. iDatalink's Maestro ADS-MSW adapter allows you to retain those controls when you install a new car stereo in a wide range of vehicles. It's compatible with over 1700 vehicles made after 1998, and it'll work with just about any brand of aftermarket stereo, including Alpine, Clarion, Dual, Eclipse, Jensen, JVC, Kenwood, Pioneer, Sony, Visteon, and Valour.
Program it yourself
You can install the ADS-MSW yourself if you have experience installing car audio gear — keep in mind that you'll have to splice into your vehicle's wiring and solder connections. Before installing, you'll program the adapter at the iDatalink site to work with your particular vehicle and car stereo. Using the intuitive web programming interface, each factory button can be assigned a specific radio function. If your vehicle isn't covered, the Maestro is the only steering wheel adapter that allows you to program your car using a simple step-by-step web procedure.
Assign each control a secondary function
And here's a great feature that's unique to this adapter — you can also choose and assign a secondary "press and hold" radio function to each factory button, effectively doubling what can be controlled. For example, touch the "Volume Up" button, and it'll turn up the music. Hold down the "Volume Up" button, and you can switch on the loudness on your car stereo. Warranty: 1 year.
Wiring Advisory: You'll usually have to tap or splice into one to three wires in your vehicle to connect this adapter.
What's in the box:
iDatalink Maestro SW Steering Wheel Control Adapter owner's manual
- Steering wheel control interface module
- 24" Seven-pin harness with bare wire on other end
- 23" Four-pin harness with a male 3.5mm connector/bare wire on other end
- 7" mini-USB (type-B) to USB (type-A) cable
Customer reviews for iDatalink Maestro SW Steering Wheel Control Adapter
Loading...
Loading reviews...
Average review:
4.0 out of 5 starsCustomer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the iDatalink Maestro SW Steering Wheel Control Adapter

Product Research
Features
Steering Wheel Control Interface: The iDatalink Maestro SW Universal Steering Wheel Control Interface lets you retain your vehicle's OEM steering wheel controls when replacing the factory radio with an SWC-compatible aftermarket radio. The Maestro SW lets you retain original steering wheel functions and assign a secondary press & hold feature to the buttons of your choice. The Maestro SW also lets you instantly create firmware for vehicles that are not included in the coverage list using a simple step-by-step web procedure.
Compatibility: The iDatalink Maestro SW is compatible with over 1400 vehicle models with analog steering wheel inputs from 2000 to date, and with most aftermarket radios (Alpine, Blaupunkt, Clarion, Dual, Eclipse, JVC, Kenwood, Pioneer, and Sony). The aftermarket head unit must have a SWC (Steering Wheel Control) 3.5mm input or wired remote connection.
Note: Please enter your vehicle information and aftermarket head unit model to confirm compatibility.
Flashing the Module: The supplied USB cable plugs into your Windows PC or MAC computer and allows you to flash (program) the Maestro SW with the appropriate vehicle's firmware to prepare it for installation. Simply download Weblink Desktop (for Windows and Mac) onto your computer to access the appropriate firmware. System requirements include -
- Windows PC (10/8.1/8/7/Vista/XP/2000) or Mac OS X (Mojave [10.14], HighSierra [10.13], Sierra [10.12], El-Capitan [10.11])
- Available USB port (version 2.0 or 3.0)
- 4GB RAM or more
- 200MB available space on HDD
- Internet connection
Note: Not compatible with Chromebook and other operating systems not listed above.
