About the iDatalink HRN-RR-HO1 Factory Integration Adapter
iDatalink working with Honda
iDatalink working with Honda
iDatalink's HRN-RR-HO1 wiring adapter works in conjunction with iDatalink's Maestro ADS-MRR or ADS-MRR2 module, allowing you to connect a new car stereo in select 2006-11 Honda-made vehicles. If you're buying a compatible iDatalink-ready car stereo, you'll enjoy the outstanding performance of your receiver, plus seamless touchscreen control over most of the factory features in select Honda-built vehicles, including the use of your steering wheel audio controls, Bluetooth®, auxiliary input, and factory amp. You'll also appreciate the additional features added by the adapter, including the ability to view performance gauges and other vehicle information on your radio's screen.
Works with just about any radio
Even if you're installing a radio that's not iDatalink-ready, you'll still retain the use of your steering wheel audio controls and your factory amp in these vehicles. The package includes connectors that plug in between the Maestro module and your factory radio's wiring plugs. You'll have to solder or splice together this harness's power/ground, illumination, speaker, and navigation output wires to the corresponding wires on your aftermarket receiver's wiring harness.
Installation Note: The HRN-RR-HO1 adapter must be used with the iDatalink Maestro ADS-MRR or ADS-MRR2 module to connect any new car stereo to your Honda-made vehicle.
- allows installation of a new car stereo in select Honda vehicles (also requires the Maestro ADS-MRR or ADS-MRR2 module)
- retains the use of your steering wheel audio controls and factory amp
- also retains aux input and Bluetooth with select Alpine, JVC, Kenwood, Sony, and Pioneer receivers
- displays engine data and vehicle info onscreen with select Alpine, JVC, Kenwood and Pioneer receivers
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # HRN-RR-HO1

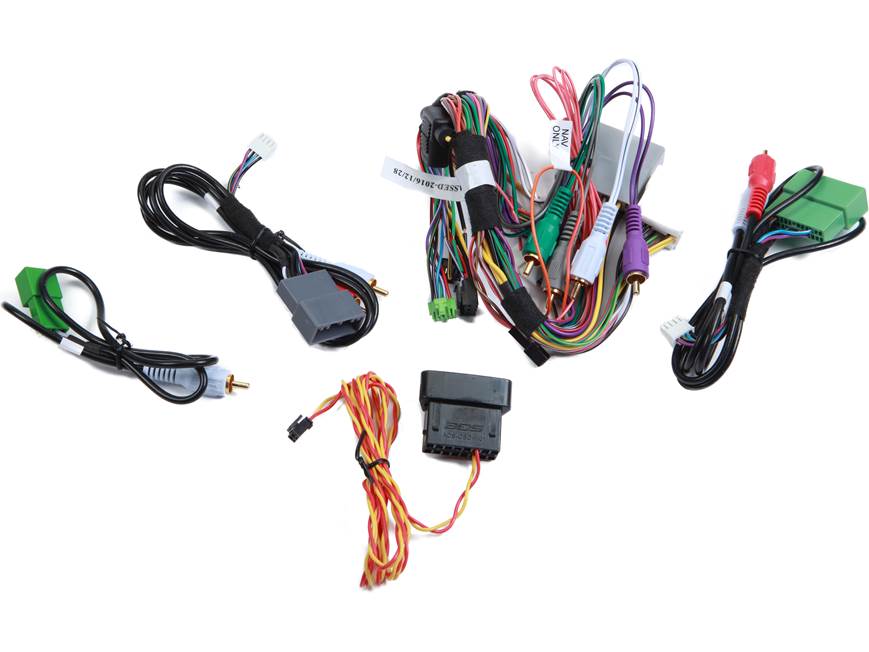

What's in the box:
iDatalink HRN-RR-HO1 Factory Integration Adapter owner's manual
- Vehicle harness
- Sub-out harness
- 2 Aux harnesses
- OBD II harness
iDatalink HRN-RR-HO1 Factory Integration Adapter reviews
This review was collected as part of a promotion
More details on the iDatalink HRN-RR-HO1 Factory Integration Adapter
Honda/Acura Harness: The iDatalink Maestro HRN-RR-HO1 installation harness greatly simplifies the installation of the Maestro RR or RR2 Car Radio Replacement Interface module (sold separately) in select Honda & Acura vehicles when replacing your factory radio with an iDatalink Serial Port compatible head unit from Kenwood, JVC, Alpine, Sony, and Pioneer; or other aftermarket head unit.
- Vehicle Compatibility: Click here for a list of compatible Honda & Acura vehicles.
- Radio Compatibility: Click here for list of fully compatible aftermarket head units with an iDatalink Serial Port.
Notes: The iDatalink Maestro HRN-RR-HO1 iinstallation harness requires the purchase of the iDatalink Maestro RR or RR2 (sold separately).
Flashing Module via Weblink Desktop: The iDatalink Maestro RR or RR2 will need to be loaded with correct firmware before installation. The included USB cable plugs into your computer and allows you to "flash" the Maestro RR or RR 2 with the appropriate firmware to prepare it for installation. Simply download Weblink Desktop (for Windows and Mac) onto your computer to access the appropriate firmware. System requirements include -
- Windows PC (10/8.1/8/7/Vista/XP/2000) or Mac OS X (Mojave [10.14], HighSierra [10.13], Sierra [10.12], El-Capitan [10.11])
- Available USB port (version 2.0 or 3.0)
- 4GB RAM or more
- 200MB available space on HDD
- Internet connection
Retained Features: The following factory features (if applicable) are retained when replacing your factory radio with a compatible iDatalink Serial Port head unit from Kenwood, JVC, Alpine, JVC, Sony, or Pioneer using the Maestro RR or RR2 Car Radio Replacement Interface module and HRN-RR-HO1 installation harness.
- Factory Amplifier
- Aux Input
- Steering Wheel Controls
Note: When installing an aftermarket head unit without the iDatalink Serial Port, only steering wheel control, Aux input, and amplifier turn-on are retained.
Extra Features: The following Extra features are added when replacing your aftermarket head unit with a compatible iDatalink Serial Port head unit from Kenwood, JVC, Pioneer, Sony, or Alpine using the Maestro RR Car Radio Replacement Interface module and HRN-RR-HO1 installation harness.
- Performances Gauges (user selectable)
- Vehicle Information (Tire Pressure, Battery Voltage, Door Open, & Check Engine Codes)
Connections: The iDatalink Maestro HRN-RR-HO1 installation harness contains five Molex connectors which plug into your factory radio harness. On the other end of the harness are four multi-pin connectors which plug into the Maestro RR or RR2 Car Radio Replacement Interface module. In addition, you will need to hardwire the power/ground, illumination, speaker, and navigation output leads of the HRN-RR-HO1 harness to your aftermarket head unit's wiring harness. There are also stereo RCA connectors to plug into your aftermarket head unit's rear-panel Aux input. In addition, stereo RCA connectors connect to your aftermarket head unit's front, rear, and sub pre-outs.
Note: When using the HRN-RR-HO1 installation harness, you will not use the additional harnesses that are included with the Maestro RR or RR2 Car Radio Replacement Interface module.
3 questions already asked
Flash the maestro device and get the plans at the end so you can see what you need from this. It's very complex and confusing otherwise, but once figured out it's fairly easy to use
Travis from Lehi, UT
