iDatalink KIT-WJL1 Dash and Wiring Kit Install and connect an iDatalink-compatible car stereo in select Jeep vehicles — MRR or MRR2 module also required (Black)

Item # 794KWJL1

Upgrade your Jeep's factory receiver with this handy kit.

Find what Fits your vehicle

Remove

Checking fit...

Upgrade your Jeep's factory receiver with this handy kit.

Item # 794KWJL1

Ships free

In stock
C$239.99

About the iDatalink KIT-WJL1 Dash and Wiring Kit

Upgrade your Jeep's radio

You want to upgrade the radio in your 2018-up Jeep Wrangler/2020-up Jeep Gladiator, but the design of the factory dash makes it difficult. The iDatalink KIT-WJL1 factory system adapter (along with the Maestro ADS-MRR or ADS-MRR2 module, sold separately) lets you install an iDatalink-ready shallow-depth double-DIN (4" tall) car stereo and wire it up to your Jeep. You'll retain your steering wheel audio controls, along with the on-screen climate controls and cluster display. The radio bezel's rubberized coating and texture match your factory dash.

Upgrade your Jeep's radio

You want to upgrade the radio in your 2018-up Jeep Wrangler/2020-up Jeep Gladiator, but the design of the factory dash makes it difficult. The iDatalink KIT-WJL1 factory system adapter (along with the Maestro ADS-MRR or ADS-MRR2 module, sold separately) lets you install an iDatalink-ready shallow-depth double-DIN (4" tall) car stereo and wire it up to your Jeep. You'll retain your steering wheel audio controls, along with the on-screen climate controls and cluster display. The radio bezel's rubberized coating and texture match your factory dash.

The package includes a replacement media hub which provides 2 USB ports, a HDMI jack, and a 3.5mm AUX input. You can set up gauges on your new car stereo's touchscreen to check engine performance and other vehicle data. The module also allows you to access the vehicle's factory settings from the radio.

Note: requires a shallow-depth aftermarket receiver. Does not retain factory backup camera.

READ LESS

Product highlights:

  • allows you to install an iDatalink-compatible shallow-depth double-DIN radio in your Jeep
  • also requires the Maestro ADS-MRR or ADS-MRR2 module
  • includes dash kit, wiring harness, and antenna adapter
  • includes replacement media hub with 2 USB ports, HDMI jack, and 3.5mm AUX jack
  • retains steering wheel audio controls, on-screen climate controls, and cluster display
  • retains control of factory vehicle settings
  • does not retain factory backup camera
  • warranty: 1 year
  • MFR # KIT-WJL1

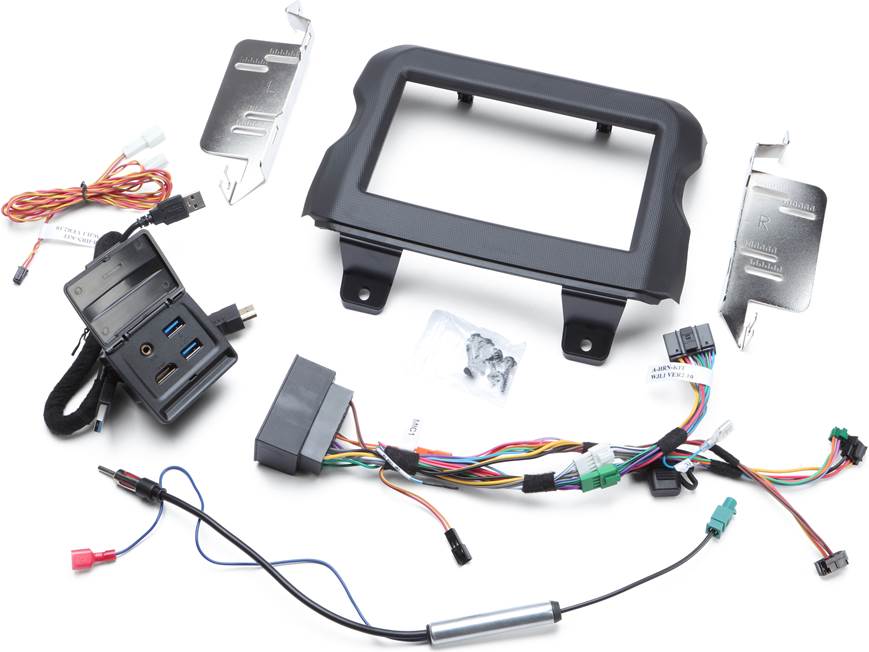

What's in the box:

  • Radio trim housing
  • Wiring harness
  • Media hub
  • Antenna adapter
  • OBDII junction harness
  • 2 Brackets
  • 6 Screws
  • Quick Start Guide

Customer reviews for iDatalink KIT-WJL1 Dash and Wiring Kit

Loading reviews...

Average review:

4.5 out of 5 stars
9 reviews

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the iDatalink KIT-WJL1 Dash and Wiring Kit

Stacey B.

Product Research

Features

Vehicle Compatibility: The iDatalink Maestro KIT-WJL1 integration kit greatly simplifies the installation of the Maestro RR or RR2 Car Radio Replacement Interface module (sold separately) in select Jeep Wrangler JL and Gladiator vehicles when replacing your factory radio with an iDatalink Serial Port compatible head unit from Kenwood, JVC, Alpine, Sony, and Pioneer.

  • Vehicle Compatibility: Click here for a list of compatible Jeep vehicles.
  • Radio Compatibility: Click here for a list of fully compatible aftermarket head units with an iDatalink Serial Port.

Note: The iDatalink Maestro KIT-WJL1 installation kit requires the purchase of the iDatalink Maestro RR or RR2 (sold separately).

Head Unit Connection: The KIT-WJL1 supports iDatalink's Direct T-Harnesses (sold separately) for direct connection to select iDatalink Serial Port compatible head units (including Kenwood, JVC, Alpine, Sony, and Pioneer radios) - replacing the wiring harness that comes with your aftermarket stereo (some hardwiring may still be required). If connecting to an aftermarket head unit that does not support an iDatalink Direct T-Harness, you'll need to cut off and remove the 20-pin black connector from the KIT-WJL1's harness and splice each wire directly to the aftermarket radio's corresponding wire.

Flashing Module via Weblink Desktop: The iDatalink Maestro RR or RR2 will need to be loaded with correct firmware before installation. The included USB cable plugs into your computer and allows you to "flash" the Maestro RR with the appropriate firmware to prepare it for installation. Simply download Weblink Desktop (for Windows and Mac) onto your computer to access the appropriate firmware. System requirements include -

  • Windows PC (10/8.1/8/7/Vista/XP/2000) or Mac OS X (Mojave [10.14], HighSierra [10.13], Sierra [10.12], El-Capitan [10.11])
  • Available USB port (version 2.0 or 3.0)
  • 4GB RAM or more
  • 200MB available space on HDD
  • Internet connection

Factory Fit & Finish Dash Kit: The included dash kit features a features rubberized coating and texture to match your Jeep's dash. The dash kit must be used with an iDatalink compatible aftermarket Double-DIN (4") radio with a shallow mounting depth.

Retained Features: The following factory features (if applicable) are retained when replacing your Jeep's factory radio with a compatible iDatalink Serial Port head unit from Kenwood, JVC, Alpine, Sony, or Pioneer using the Maestro RR Car Radio Replacement Interface module and KIT-WJL1 installation kit.

  • Factory Amplifier: Retains factory premium audio amplifier with turn-on, fader, gain adjustment, DSP control, a speed compensated volume.
  • Steering Wheel Controls: Factory steering wheel controls are retained with two function buttons and expandable radio functions.
  • Media Hub: The included media hub retains your Jeep's factory USB-A ports and Aux input, as well as adds a HDMI jack. Your compatible aftermarket head unit must offer corresponding rear-panel USB-A ports, Aux input, and HDMI jack for connection.
  • Climate Control & Vehicle Settings: Climate display and control is accessible through a compatible aftermarket head unit's touchscreen. You can also access and modify vehicle settings through a compatible aftermarket head unit's touchscreen. In addition, you can control your vehicle's RSE (Rear Seat Entertainment) through your compatible aftermarket receiver's touchscreen.
  • Secondary Vehicle Display: Secondary vehicle display is retained (if factory equipped) with audio information and hands-free information.
  • Park Assist with Front Camera Control: Park Assist chimes are retained through the use of the KIT-WJL1 (factory backup camera is not retained). If you add an aftermarket front camera (sold separately) to your idatalink compatible head unit that is equipped with dual camera inputs, the vehicle's factory auto camera switching feature is also retained.

Note: The KIT-WJL1 does not retain your Jeep's factory backup camera.

Extra Features: The following Extra features are added when replacing your aftermarket head unit with a compatible iDatalink Serial Port head unit from Kenwood, JVC, Pioneer, Sony, or Alpine using the Maestro RR or RR2 Car Radio Replacement Interface module and KIT-WJL1 installation kit.

  • Vehicle Info: Tire Pressure Display, Battery Voltage Display, Read/Reset Engine Codes, and Door Open Status with Warning.
  • Gauges: Selectable Performance Gauges, "Track Pack" Gauges, and Read/Reset Check Engine Codes.

Outputs: The KIT-WJL1 provides Navigation, Accessory Power, and Illumination Outputs to make installation simpler.

  • Navigation: Parking Brake, Reverse Light, and VSS (Vehicle Speed Sense).
  • Accessory Power Output: 12V/15A Accessory Power Output
  • Illumination Output: Illumination Output

Loading accessories...

Customer Q&A

1 question already asked

Q
With the WJL1, would I also need a separate rCH3 harness or does the WJL1 include everything I need?
william  Feb 17, 2024
1 answer
A
Greetings William. Thank you for your question. This kit has wiring, however it also needs the Maestro RR, or RR2 programmable module. The new stereo must also be Idatalink Maestro ready, and your vehicle may also need a radio antenna adapter. Please contact one of our advisors at 800-324-9695 to get you set up.
hogan  Feb 18, 2024 (Staff)
