About the iDatastart RF1111A RF Kit
Extend the range of your iDatastart remote start system
This RF1111A wireless remote kit extends the range of your iDatastart remote start system up to 3,000 feet — that's over a half mile. The kit includes an antenna/receiver that plugs into your iDatastart module via the included harness, along with two 1-button remote transmitters, so you've got a spare if you lose the first. Now you don't have to be within sight of your vehicle to start it with the factory key — you can use your RF1111A remote to start your engine and unlock your vehicle from the comfort of your home or office.
- RF remote control for iDatastart digital remote start systems
- two 1-button 1-way remotes, antenna module, and wiring harness
- range: up to 3,000 feet
- functions include start/stop engine and lock/unlock doors
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # RF1111A
What's in the box:

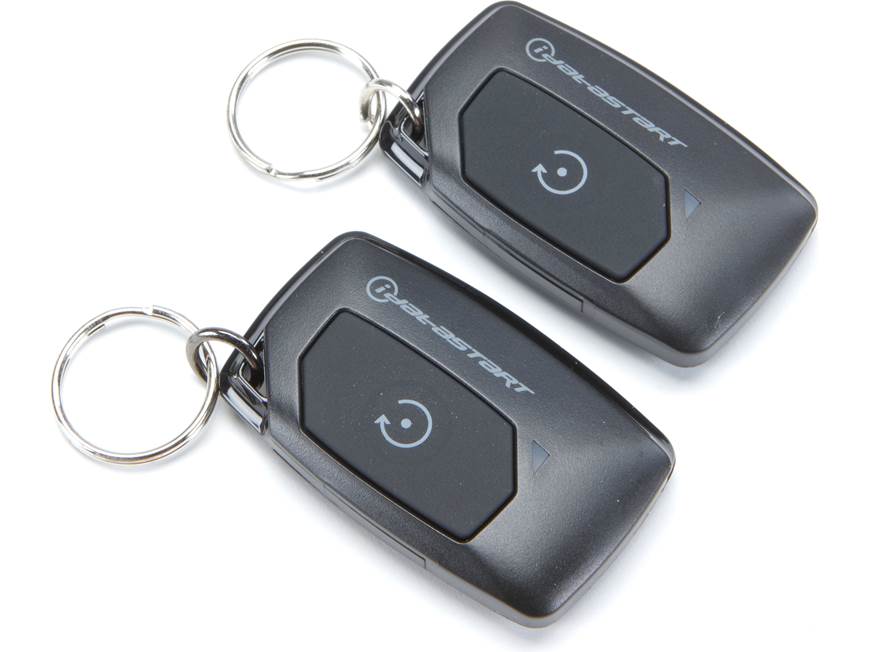

- 2 RF Remotes
- Transmitter antenna w/ 3M adhesive backing
- 98" Antenna cable (4-pin connectors on both ends)
- Owner's card (QR code for instructions)
- ID Sticker
More details on the iDatastart RF1111A RF Kit
Overview: The ADS transmitter kit provides 1-way communication for activating you iDatastart HCX remote start module (sold separately). This 1-button remote system uses FM technology for up to 3000 feet of transmitting/receiving range.
Functions: The RF1111A 1-way remote features a single button on the front side which is pre-programmed for Lock/Arm, Unlock/Disarm, and Engine Start/Stop. A single LED at the top of the remote will light to confirm when the button is pressed and a command was sent to the remote start module. A single press of the button will Lock/Arm or Unlock/Disarm while pressing and holding the button will activate Engine Start or Engine Stop if the engine is already running.
Antenna: Included with the RF1111A remote controls is a 3-1/4" long-range antenna for achieving a maximum transmit/receive range of up to 3000 feet. The antenna features an adhesive backing, for mounting it high up on a dash or console, and a 98" cord that plugs directly into the iDatastart module. Two LEDs and a small push-button on the antenna are used to program additional or replacement remote controls. Up to 4 remotes can be programmed to the iDatastart module.
Owner's Card: Operating instructions for the RF1111A remotes can be accessed via the included Owner's Card. This features a QR code that can be scanned with a smartphone or tablet and will pull up the online instruction manual.
