About the Memphis Audio M71212
Big bass, Memphis style
Big bass, Memphis style
From Booker T to Big Star, the "Memphis Sound" has always relied on a foundation of deep, rich bass to tie the music together. Now, Memphis Audio brings that bass tradition to your ride with their M7 Series subwoofers.
Made to get down

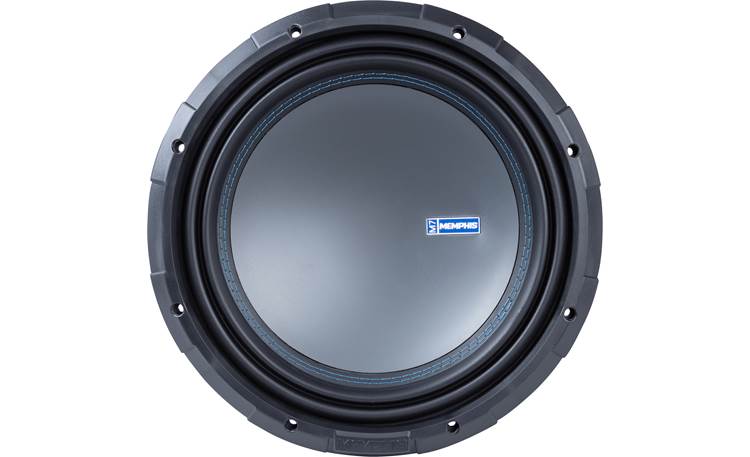

Memphis Audio created the M7 Series M71212 12" subwoofer for high-performance bass reproduction. The polypropylene cone has the stiffness to maintain high levels of accuracy, while its double-stitched rubber surround helps to maximize and control excursion. The vented cast-aluminum basket keeps things cool, and virtually eliminates resonances that can colour your bass.
Handles plenty of power
The triple 2.5" aluminum voice coils combine with a 120-ounce magnet to handle up to 750 watts RMS, so make sure you have plenty of power on tap for these big boys. Easy-to-use colour-coded jumpers allow you to wire the sub for 1 or 2 ohms for system flexibility, great news if you have a high-performance mono sub amp.
Subwoofer Wiring Diagrams
To see sample wiring diagrams for all common subwoofer/amplifier combinations, check out this informative article.
Product highlights:
- Featured in our article: Best 12" car subwoofers for 2024
- 12" component subwoofer
- selectable 1- or 2-ohm impedance
- polypropylene cone
- double-stitched rubber surround
- cast aluminum basket and 120-ounce magnet
- power handling: 750 watts RMS (1500 watts peak)
- sensitivity:
- 1 ohm: 84.5 dB
- 2 ohm: 85.3 dB
- top-mount depth: 7-1/2"
- cutout diameter: 10-13-16"
- sealed box volume: 1.5 cu. ft.
- ported box volume: 2.5 cu. ft.
- grille not included
- warranty: 1 year
- MFR # M71212
What's in the box:
Memphis Audio M71212 owner's manual
- One 12" Subwoofer
- Rubber trim ring/gasket (installed)
- One 2-ohm jumper wire (installed)
- Two 1-ohm jumper wires
- Specification sheet
Customer reviews for Memphis Audio M71212
Loading...
Loading reviews...
Average review:
4.5 out of 5 starsCustomer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Memphis Audio M71212
Features & specs
| Features and Specs | ||
|---|---|---|
| Size | 12 -inch | |
| Impedance (Ohms) | 1, 2 | |
| Cone Material | Reinforced Pressed Paper w/Pol | |
| Surround Material | Rubber | |
| Port diameter (inches) | N/A | |
| Port length (inches) | N/A | |
| Free-Air | No | |
| Dual Voice Coil | No | |
| Sensitivity |
85.3 dB at 1 watt | |
| Frequency Response | 33 - 150 Hz | |
| Max RMS Power Handling | 750 | |
| Peak Power Handling (Watts) | 1500 | |
| Top Mount Depth (inches) | 7 1/2 | |
| Bottom Mount Depth (inches) | N/A | |
| Cutout Diameter or Length (inches) | 10 13/16 | |
| Vas (liters) | 34.52 | |
| Fs (Hz) | 33 | |
| Qts | 0.502 | |
| Xmax (millimeters) | 15.24 | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Box Requirements | ||
| Ideal Sealed Box Volume (cubic feet) | 1.5 | |
| Minimum Sealed Box Volume (cubic feet) | N/A | |
| Maximum Sealed Box Volume (cubic feet) | N/A | |
| Ideal Ported Box Volume (cubic feet) | 2.5 | |
| Minimum Ported Box Volume (cubic feet) | N/A | |
| Maximum Ported Box Volume (cubic feet) | N/A | |
Product Research
Features
Terminals: One pair of spring-post input terminals offers easy connection of pin connectors or bare wire up to 8-gauge. They will also accommodate many single banana plugs, but the post is slightly recessed, so some banana plugs will not fit well. The binding posts are spaced too far apart to accept standard dual banana plugs (¾").

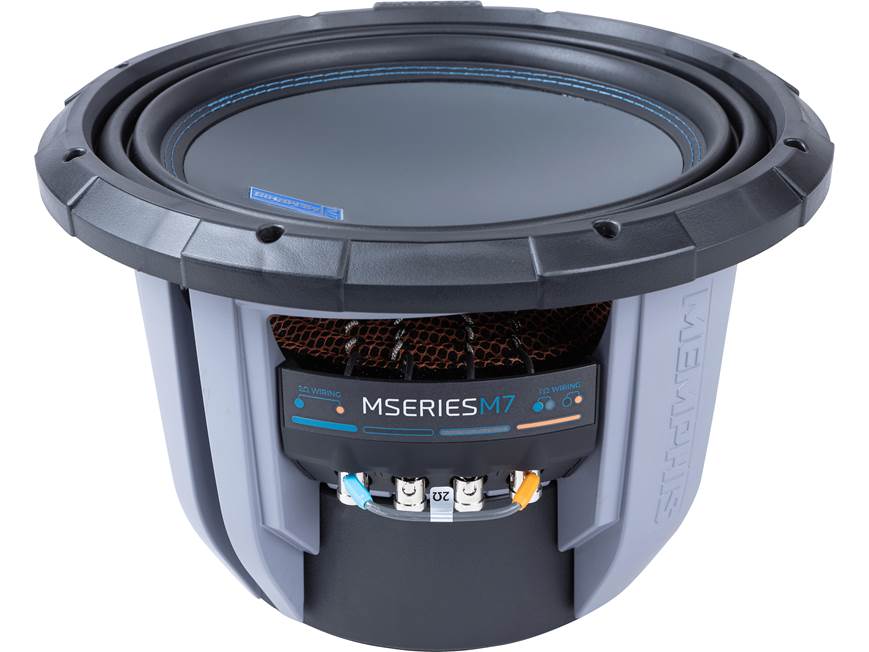

Selectable Impedance: On the opposite side of the basket from the input terminals, there are four "shorting" spring terminals. Depending on how the included jumper wires are connected to these shorting terminals, the input terminals present either a 1Ω or 2Ω load. The power handling is the same for either setting; 750 watts RMS/1,500 watts peak.
Sealed Enclosures: Sealed enclosures provide the most control over a woofer and provide accurate sonic reproduction, making them suitable to all types of music. Memphis Audio recommends a sealed enclosure of 1.5 ft³.
Vented Enclosures: Vented (or ported) enclosures typically provide better overall efficiency than sealed so they are suitable for use with smaller amplifiers, giving you more bass output from a given amount of power. Memphis Audio recommends a ported enclosure of 2.5 ft³ with a 5" x 5" x 27" slot port, yielding a tuning frequency of 36 Hz.
Thiele Small Parameters: Some specs change depending on the impedance:
| Load Presented | 1Ω | 2Ω |
|---|---|---|
| DC Resistance (Revc) | 1Ω | 1.9Ω |
| Resonant Frequency (fs) | 33 Hz | 33 Hz |
| Mechanical Q (Qms) | 7.22 | 7.16 |
| Electrical Q (Qes) | 0.64 | 0.54 |
| Total Q (Qts) | 0.588 | 0.502 |
| Sensitivity | 84.5 dB | 85.3 dB |
| Xmax | 0.6" (15.24mm) | 0.6" (15.24mm) |
| Vas | 34.52 liters | 34.52 liters |
| Moving Mass (Mms) | 227.2 g | 227.2 g |
| Suspension Compliance (Cms) | 0.102 mmN | 0.102 mmN |
| Effective Piston Area (Sd) | 490.84 cm² | 490.84 cm² |
| Motor Strength (Bl) | 8.56 Tm | 12.83 Tm |
