Memphis Audio MXABMB2BT All-terrain Bluetooth® sound system: includes two speaker pods, Bluetooth controller, and a 2-channel amplifier (Matte Black)

Name: Memphis Audio MXABMB2BT
Brand: Memphis Audio
SKU: 953MXAB2BT
Price: 359.95 CAD
Availability: InStock
Rating: 4.0 (8 reviews)

Item # 953MXAB2BT

This Bluetooth-equipped speaker/amp combo from Memphis Audio will bring serious sound to your boat, motorcycle,...

all-terrain sound system

1/17

2/17

Only at Crutchfield

3/17

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

Memphis Audio MXABMB2BT all-terrain sound system

Memphis Audio MXABMB2BT Only at Crutchfield

This Bluetooth-equipped speaker/amp combo from Memphis Audio will bring serious sound to your boat, motorcycle,...

Item # 953MXAB2BT

Ships free from distributor

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

In stock

C$359.95

Add to cart

Add to wishlist

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-800-297-9469

by Crutchfield's Jon Paul

A sweet speaker kit for your off-road vehicle

This Bluetooth-equipped speaker/amp combo from Memphis Audio will bring serious sound to your boat, motorcycle, UTV, or ATV. With a powerful 2-channel amp, a pair of rugged 3" speakers, and a Bluetooth controller, you can crank and control your tunes on land or sea, in wet or dry conditions. This all-weather system is easy to mount and will look terrific on your vehicle.

Powerful performance

These speakers are small in size, but they're tough enough for the outdoors and tuned to perform. Each speaker has a stout 15 oz. magnet, so in addition to thrilling highs, you'll hear a lot more bottom end than you'd expect. The compact marine amp will produce 15 watts RMS (50 peak) per channel, so your speakers won't lack the juice they need to perform at their best.

This kit also includes an MXABTR Bluetooth controller, so you can enjoy wireless control from your cell phone or through the controller's interface.

Mount it your way

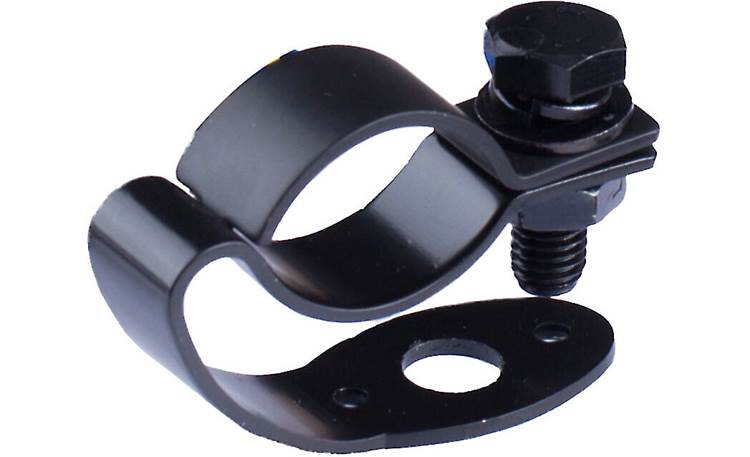

When it comes to mounting these speakers, you've got options. The kit includes handlebar mounting brackets that will fit most standard bar sizes, plus post-mount options that'll work if you prefer a direct bolt-on application. Both options are designed to be DIY-friendly.

Available in Matte Black or Chrome.

Product highlights:

system includes 2-channel amplifier, controller, and two 3" speakers
includes clamp-style bar mounts, post mounts, and water-resistant wiring harness
marine-grade construction for weather resistance
Bluetooth enabled with controller included
2-channel amplifier (15 watts RMS per channel at 4 ohms, 25 watts RMS at 2 ohms, 50 watts peak)
available in Matte Black or Chrome
warranty: 1 year
MFR # MXABMB2BT
Item # 953MXAB2BT

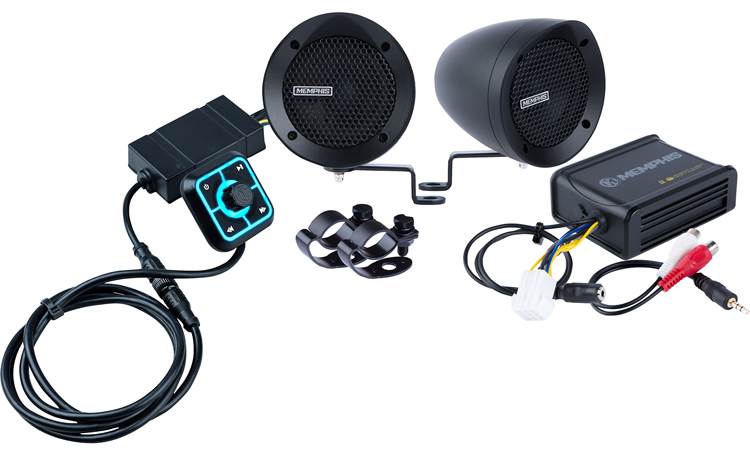

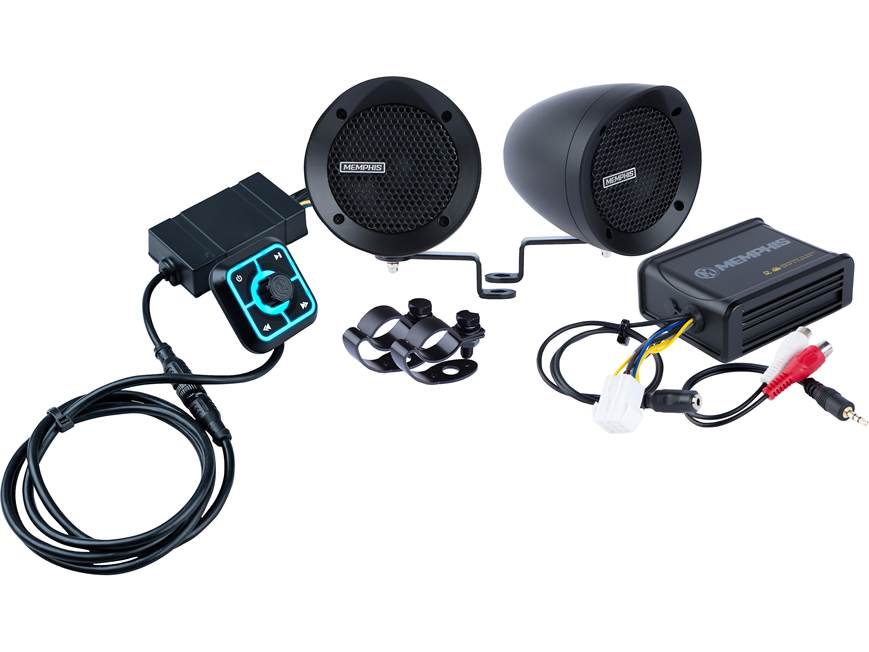

What's in the box:

Memphis Audio MXABMB2BT owner's manual

2 (Black) Bullet-style speakers (attached bracket and 90" speaker wire)
Amplifier (attached 3" wire harnesses and 18" audio input cable)
MXABTR Bluetooth controller (attached 22" cable)
Bluetooth module (attached 4.5" controller cable / 7" wire harness and RCA outputs)
2 Large bar-mount brackets (black)
2 Small bar-mount brackets (black)
22" Power/ground/remote/speaker output harness (inline 7.5A mini-fuse)
7" Stereo 3.5mm to dual RCA cable
Bluetooth controller mounting cup
Bluetooth controller mounting clamp
Bluetooth controller mounting bracket
Two M8 x 30mm bolts
2 Large flat-washers
2 Large lock-washers
Two M8 nuts
Two 3.5" rubber strips
4 Amp mounting tabs
Four 15mm screws
Four 6mm screws
4 Small flat-washers
4 Small lock-washers
Two 1.5" adhesive pads
Two 30mm threaded posts
Two 5mm counter-sunk screws
2 Flange-nuts
2 Hex-nuts
Speaker installation guide
Bluetooth controller installation guide
Warranty card

Researched by Crutchfield's Russ B.

Product Research

Features

Overview: The Memphis Audio MXABMB2BT powersports speaker system includes two 3" full-range speaker pods, a 2-channel amplifier, and a Bluetooth controller for streaming music, all constructed with marine-grade materials for outdoor weather resistance.

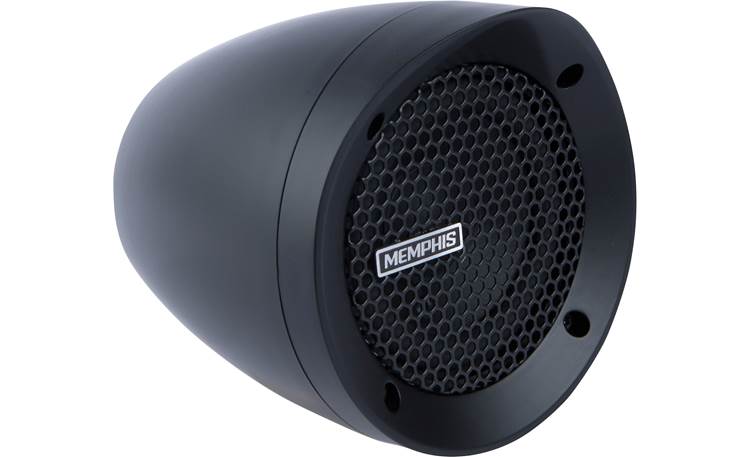

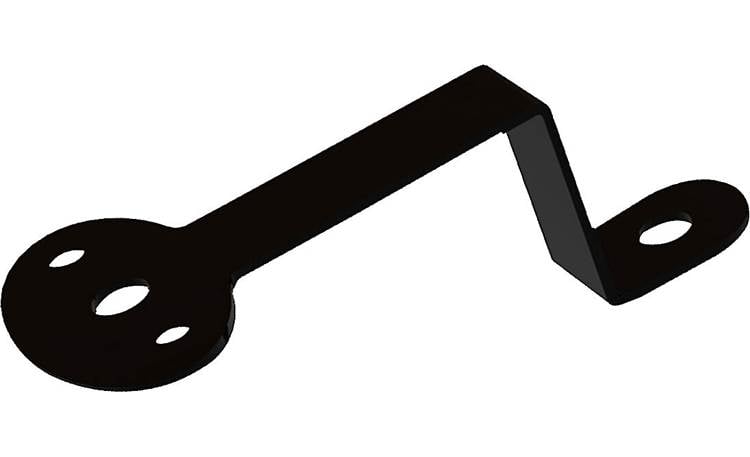

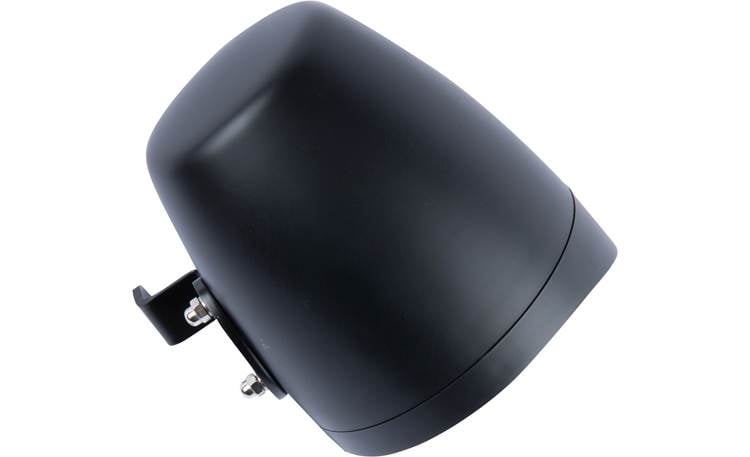

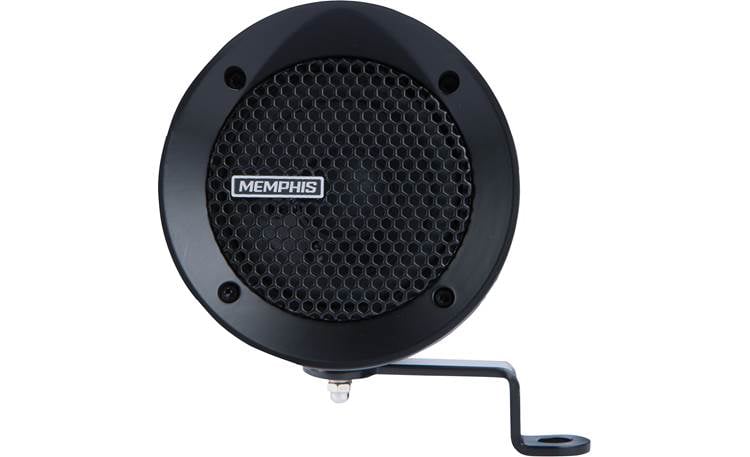

Speaker Pods: Each of the 2 speaker pods features a 3" full-range driver mounted in a weather-proof sealed pod with a metal-mesh grille. Mounting brackets come pre-installed on the bottom of each enclosure, allowing them to be surface-mounted. Additional clamp-brackets also allow the speaker pods to be mounted to a bar or rail up to 1-1/2" in diameter. Each speaker pod includes a built-in 90" wire harness that plugs directly into the amplifier's output harness.

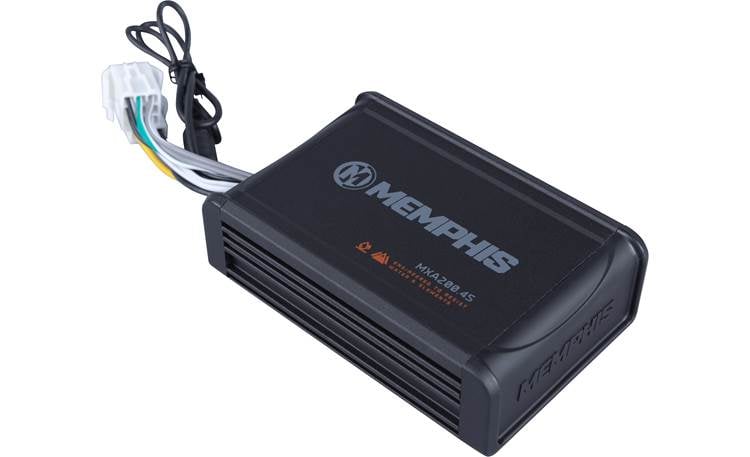

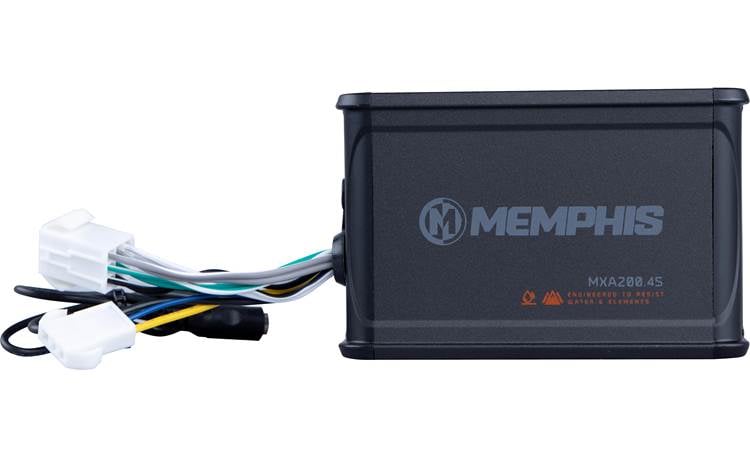

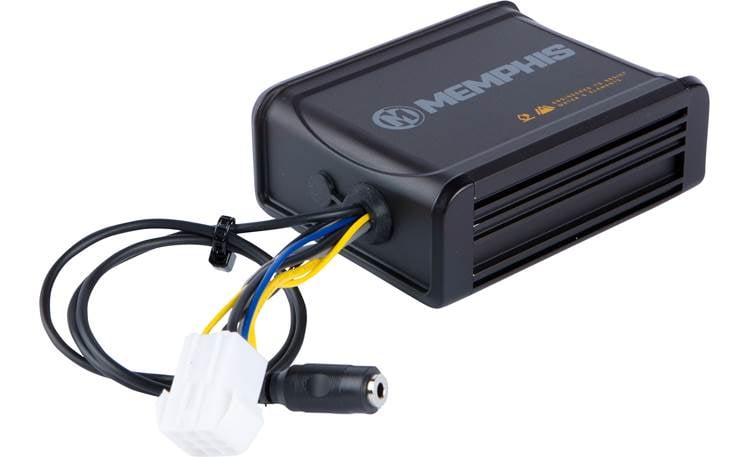

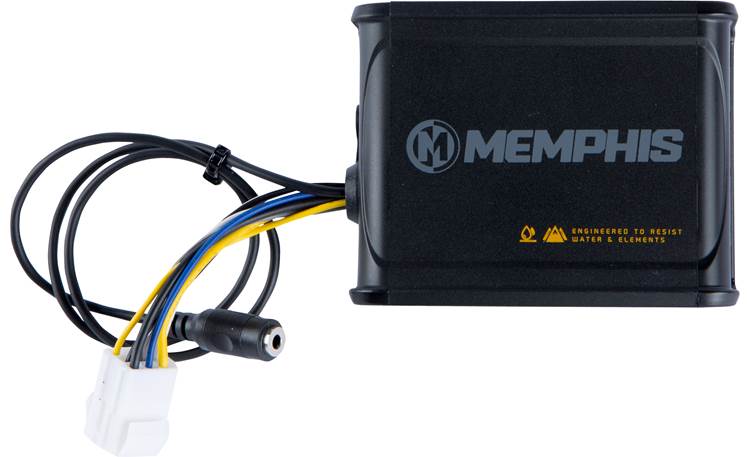

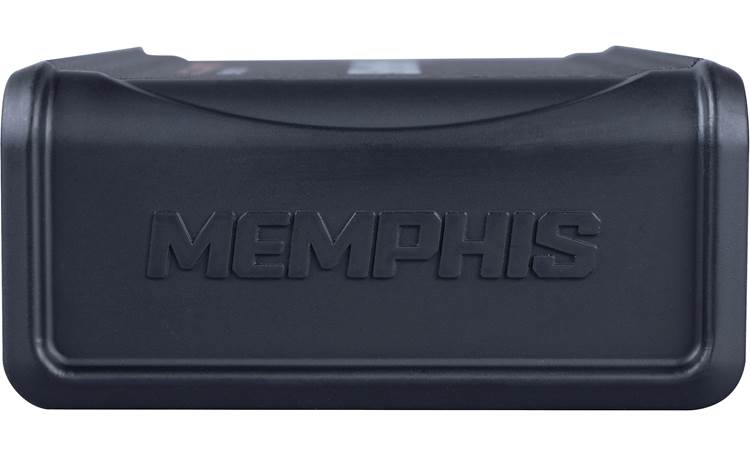

2-Channel Amplifier: The included Memphis Audio 2-channel amplifier is designed to deliver 25 watts of RMS power (50W peak) to the amp's 2 speaker output harnesses. Each speaker output harness plugs directly into the corresponding Molex plug on the end of each speaker pod's wire harness, allowing the system to be installed with minimal wire splicing. Hardware is also included for mounting the compact-size amp, if desired.

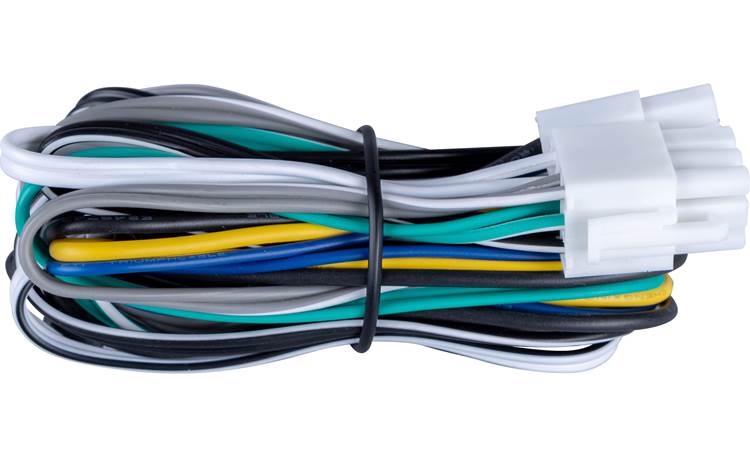

Power/Ground/Remote: A 22" 3-wire power/ground/remote harness is included that gets attached to the vehicle's electrical system for powering the amp and Bluetooth module. This harness splits off and includes a Molex connector that plugs directly into the Bluetooth module's wiring harness.
Speaker Outputs: A 2-channel speaker harness is attached to the amp's output plug. Each output consists of a 2-wire Molex connector that matches the ones attached to each speaker pod.
Audio Input: The amplifier includes a built-in 18" audio input cable (female 3.5mm jack) for passing audio from the Bluetooth module into the amp. A 7" 3.5mm-to-RCA splitter is included to convert the Bluetooth module's RCA audio output into a 3.5mm male plug.

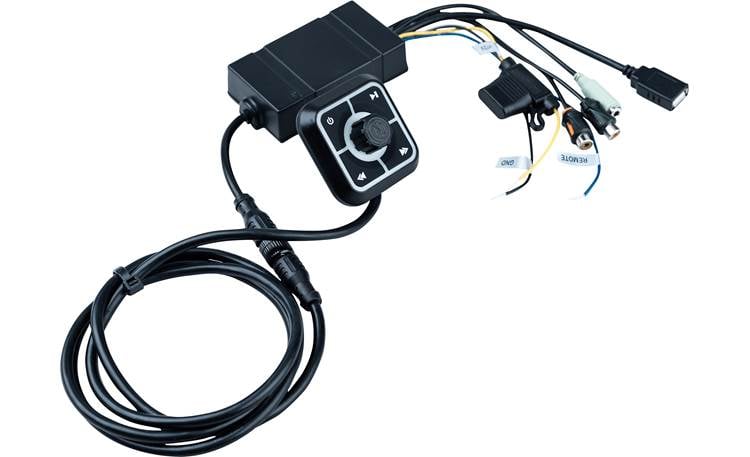

Bluetooth Module: The Memphis Audio speaker system includes a MXABTR Bluetooth module for streaming A2DP audio from a Bluetooth enabled playback device. The Bluetooth module gets its power and ground from the amplifier connection and includes a pair of RCA outputs for running to the amplifier's audio input.

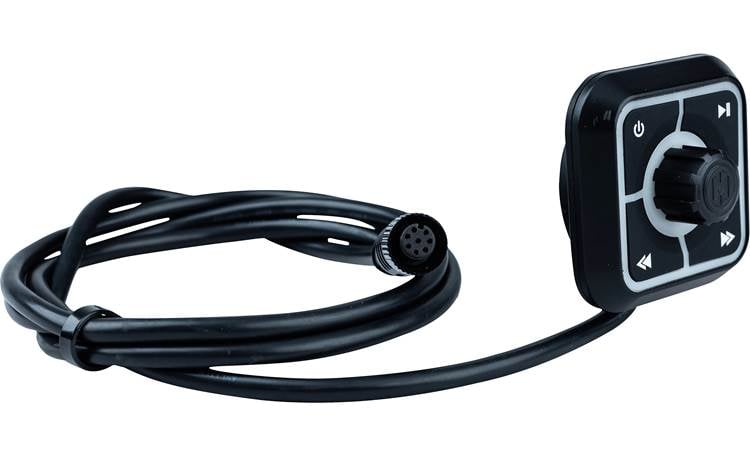

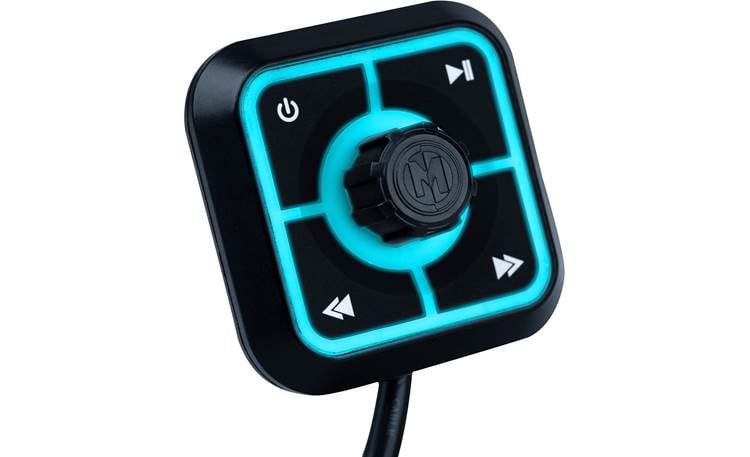

Bluetooth Controls: A 2" diameter Bluetooth control panel plugs into the Bluetooth module using the built-in 22" cable. Functions on the controller include: Play/Pause, Power, Volume +/-, Track Forward/Back. Bluetooth functions can also be performed on the phone or tablet that's streaming to the system.
Mounting: Hardware for mounting the controller is provided. A flush-mount cut allows the controller to be mounted either in a dash or console cutout. An included mounting-clamp can be used to attach it to a rail or support pole up to 1-1/4" in diameter.

Dimensions:

Speaker Pods: Width - 4.16", Height - 5.18", Depth - 4.625"
Bluetooth Module: Width - 2.0", Height - 0.75", Length - 5.0" (incl. wiring)
Amplifier: Width - 3.125", Height - 1.375", Length - 6.0" (incl. wiring)

Loading accessories...

4 questions already asked

Do these speakers have any bass to them?

brett Nov 24, 2024

1 answer

Greetings Brett. Thank you for your question. There is no provided frequency range by the manufacture. Being a 3 inch driver, and with a radio like power (15 watts) going to them, I would lean more towards no as far as good bass.

thomas Nov 24, 2024 (Staff)

Is the blue wire the power wire?

mrkennedy Mar 04, 2023

1 answer

Greetings MrKennedy, and thank you for your question. The yellow wire is the power wire. What you don't see in any picture is the extension harness that comes with. The power wire (yellow) has an inline fuse, then there is black (ground), and the blue wire is only used if adding a secondary amplifier to turn that other amp on when the main Memphis amp turns on. If your not adding a second amp, tape off the blue wire.

thomas Mar 04, 2023 (Staff)

Controller lighting up and Bluetooth connecting I can change song and all that but no sound is there something I may be doing wrong?

daniel Apr 28, 2024

1 answer

If you purchased the product from Crutchfield, feel free to contact our Tech Support team. They can walk you through the settings on the product and see if there may be a fix. Our toll-free Tech Support number is printed on your invoice, and is also available under the "My Orders" tab in the "My Account" section of our website. If you did not purchase the unit from Crutchfield, then you may want to contact the manufacturer.

red Apr 28, 2024 (Staff)

Controller lighting up and Bluetooth connecting I can change song and all that but no sound is there anything I may be doing wrong?

daniel Apr 28, 2024

1 answer

I would be happy to help, Daniel. If you are having any issues with your Crutchfield purchased products, please call our Technical Support hotline with your order number handy and we can help troubleshoot. If you are successfully connected to the Bluetooth module but get no sound, check to make sure your RCAs from the Bluetooth module are connected to the amplifier's inputs.

bo May 01, 2024 (Staff)
