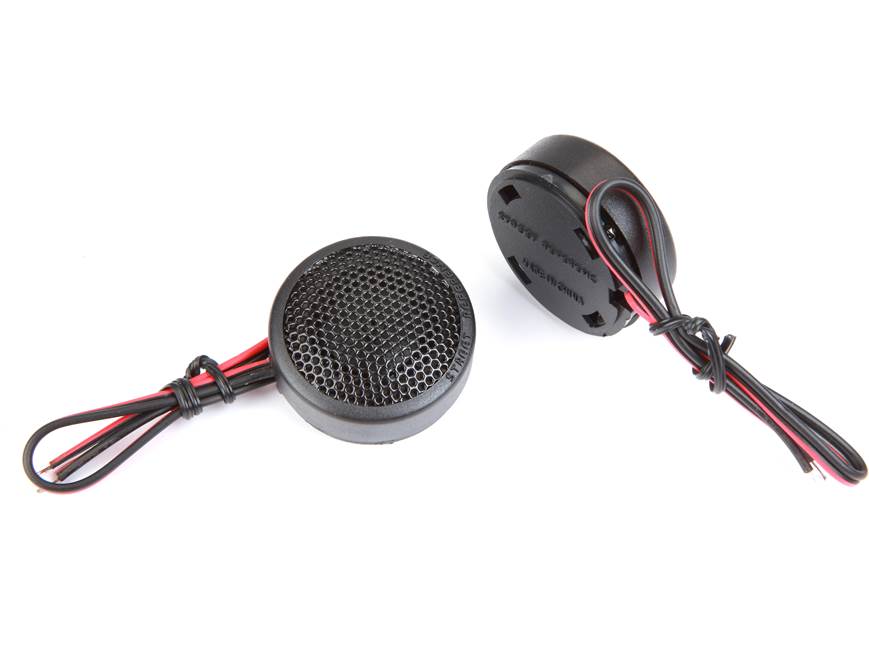

About the Memphis Audio SRX1
Improved detail
Hit the streets with new sound! Memphis Audio's affordable audio solution serves up rich detail that'll refresh your daily drive. Stepping up to these Memphis Audio SRX1 1" tweeters means adding a level of clarity you've been missing with factory sound. Memphis includes surface-mounting hardware so you can get them in the right spot to maximize the soundstage in your car.
Product highlights:
- 1" Mylar dome tweeters (pair)
- surface-mount hardware included
- inline crossovers
- handles up to 20 watts RMS (120 watts peak power)
- frequency response: 5,000-20,000 Hz
- sensitivity: 97 dB
- top-mount depth: .508"
- warranty: 1 year
- MFR # SRX1
What's in the box:
Memphis Audio SRX1 owner's manual
- Two tweeters (with attached 8" speaker wire attached)
- 2 Adhesive backed foam mounting pads
- 2 Surface mount brackets
- Two 5/8" Flat-head screws
Customer reviews for Memphis Audio SRX1
Loading...
Loading reviews...
Average review:
4.5 out of 5 starsCustomer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Memphis Audio SRX1
Features & specs
General | ||
---|---|---|
Speaker Size | 1 | |
Design | 1-way | |
Tweeter Design | Dome | |
Impedance (Ohms) | 4 | |
Tweeter Composition | Mylar | |
Woofer Composition | --- | |
Woofer Surround | --- | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Specifications | ||
Sensitivity (1W at 1 meter) | 97 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 5000 - 20k Hz | |
Minimum RMS Wattage | --- | |
Maximum RMS Wattage | 20 | |
Peak Power Handling (Watts) | 40 | |
Top-mount Depth (Inches) | 0 9/16 | |
Bottom-mount Depth (Inches) | N/A | |
Cutout Diameter or Length (inches) | 0 | |
Mounting Height (Inches) | 0.791 | |
Frame Width | 1.465 | |
Frame Length | 1.465 |
Product Research
Features
Mounting: The tweeters are designed to be surface mounted. Surface mount brackets are included, along with both screws and adhesive pads for mounting the brackets.
Crossover: The crossovers are integrated into the tweeter housings. The end of the attached 8" wire is tinned bare wire; there are no terminals.
Tweeter Dimensions:
Surface Mount | |
---|---|
Mounting Height | 0.791" |
Mounting Depth | 0.508" (screw depth) |
Frame Diameter | 1.465" |
Cutout Diameter | N/A |
Loading...
Loading accessories...
Customer Q&A
4 questions already asked
Loading...
Loading articles...
Excellent value for the price! Sound quality is clear and crisp. Perfect for a stock replacement on a 15 year old car. The installations were a bit challenging but a little patience and hot glue helped get the job done.
TJR from Dearborn, MI
