Audio Section

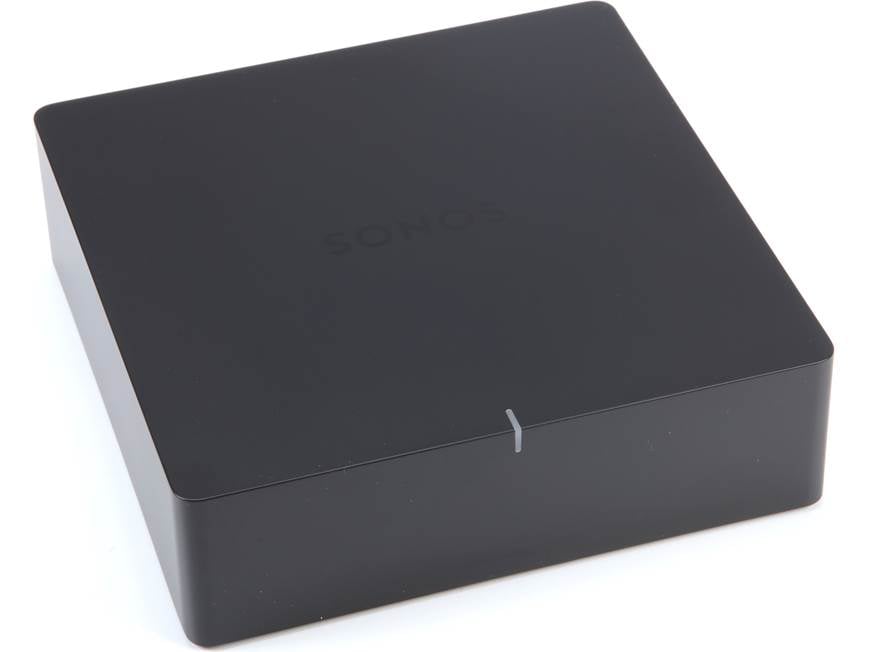

Sonos Port: The Sonos Port is a network audio player that can be used to add Sonos capability, with support for wireless multiroom audio streaming from a variety of online music services and AirPlay 2, to your existing home entertainment system that features a free analog or digital audio input. The Sonos Port is outfitted with a stereo analog RCA output and a digital coaxial (RCA) output to connect the network audio player to your existing stereo integrated amplifier, AV receiver, or powered speakers. You can set the stereo analog RCA output to fixed or variable, so you can adjust the volume level from your connected amplifier or the Sonos Port.

Sonos Wireless Multiroom Audio Eco-System: The Port is part of the Sonos wireless multiroom audio eco-system consisting of a family of wireless network speakers, players, and amplifiers. Start with a single Sonos product and add more Sonos products over time. With multiple zones, you can play the same or different songs in different rooms of your home. Compatible distributed audio sources include internet radio, online music services, local network music libraries, as well as hardwired inputs. Up to 32 Sonos devices and 16 groups can be connected in one system. The Sonos Port is compatible with the new Sonos S2 operating system (OS) and the older Sonos S1 operating system (OS).

• Sonos S2 OS Compatible Products: The Sonos Five, One SL, Roam, ARC, Beam (Gen 2), Sub (Gen 3), and any Sonos products released after May 2020 will only be compatible with Sonos S2.
• Sonos S2 and S1 OS Compatible Products: The Sonos Play:1, Play:3, Play:5 (Gen 2), Playbase, Playbar, Connect (Gen 2), Connect:Amp (Gen 2), One (Gen 1/2), Beam, Amp, Port, Boost, Move, and Sub (Gen 1/2) support both Sonos S2 and S1 operating systems.
• Sonos S1 OS Compatible Products: The Sonos CR200 Controller, Zone Player, Bridge, Connect (Gen 1), Connect: Amp (Gen 1), and Play: 5 (Gen 1) will only support the older S1 operating system.

Dual Mono mode: The Sonos Port may optionally output dual-channel monaural sound instead of traditional stereo. Monaural sound is sometimes preferred over stereo for more even sound coverage in some situations (such as large or irregularly shaped areas with multiple listening positions and/or more than one pair of speakers). When in this mode, the same monaural audio signal is sent to both the left & right RCA outputs.

Mounting Options: The Sonos Port can simply be placed on top of stable flat mounting surface; such as a shelf, table-top, or piece of AV furniture. It is designed to be mounted horizontally (not vertically). You can fit three Port devices across a standard rack and take up only 1 rack unit of vertical space. There should be at least 2" of space around the Port for adequate ventilation. The Sonos Port does not wall-mount.

AC Power Adapter: The Sonos Port comes with an external AC power adapter that will plug into the back of the network audio player and into an AC power wall outlet or surge protector (sold separately). The external AC power adapter features an attached 6.5' cord.

Variety Of Sources

Two Ways to Connect Wirelessly: In order to enjoy internet radio, online music services, your local network music libraries and Apple AirPlay 2, you'll need to connect the Sonos Port to your home's wireless network router and ISP (internet service provider). Sonos brings your great sounding music wirelessly to any room in your house, without a big wiring project through WiFi or its SonosNet mesh network.

• WiFi Wireless Network: Sonos can also operate over your home's existing WiFi network (802.11n; 2.4/5GHz). Because you are connecting wirelessly to your home's existing WiFi network, you do not need to hardwire a Sonos Boost to your router/modem. The Sonos system's wireless range will be dependent on your home's existing WiFi network. Sonos products manufactured after March 2014 are loaded with the proper firmware and ready to go out of the box for WiFi connectivity. All Sonos products manufactured prior to that date will require a wired connection to facilitate a firmware upgrade and hereafter they will be able to work over WiFi.
• SonosNet Wireless Mesh Network: Sonos can utilize its own SonosNet proprietary wireless mesh network technology to provide superior wireless range for whole-house coverage, ensure synchronous music playback, and avoid sources of wireless interference. The transmitting range of the Sonos wireless system is approximately 100', depending upon your home's layout. In addition to the Sonos Port, you will need a Sonos Boost (sold separately) connected to your network router/modem via a Ethernet cable.

Ethernet Port (10/100 Mbps): In addition to its built-in SonosNet Wireless Mesh Network and WiFi, the Sonos Port is also equipped with one Ethernet port (10/100 Mbps). Use it to wire directly to your router to operate Sonos if WiFi is unstable, or use the Ethernet port to provide Internet accessibility to non-wireless devices if you're using a SonosNET Boost setup.

Internet Radio Stations: Sonos offers a wide variety of Internet Radio stations and services. Some Internet Radio Services require a paid subscription and fees. Click here for all available Internet Radio Services.

• Sonos Radio: Sonos Radio is a free service that brings the best of Sonos and partner services into one place, making it even easier to listen to radio and discover new music on your system. Sonos Radio features thousands of live radio stations to choose from; lisen to music news, sports, and more from over 60,000 local and global stations. You even get a special selection of genre stations with music expertly curated by Sonos.
• iHeartRadio: iHeartRadio delivers all your favorite music and radio in one free service. Thousands of the best live Radio stations from across the country. Custom Stations created from 20 million songs and over 800,000 artists. You tell us an artist you like and iHeart Radio will build a playlist you love. iHeartRadio is free to listen with no capped hours or monthly subscription fees.
• Pandora: Pandora gives you personalized radio that plays what you love and continually evolves with your tastes. Start with the name of an artist, song, genre, or comedian, and create a station. If you are not sure what to listen to, you can browse through our hundreds of curated genre station to find the perfect match for your mood. You can choose between Pandora's free ad-supported account or a Pandora Plus ad-free account with higher 192kbps bit-rate.
• TuneIn: TuneIn gives you access to the world's radio stations, shows and podcasts, all for free. Over 100,000 channels from every corner of the earth, plus live and on-demand radio shows from around the world.
• SiriusXM: With SiriusXM, you can stream up to 155 channels of commercial-free music, play-by-play and sports talk, world class news, comedy, exclusive entertainment, and more. Search to easily find channels, shows, episodes and more. You'll need a SiriusXM subscription that also offers internet streaming.

Online Music Services: Sonos offers a wide variety of online music services. Some online music services require a paid subscription and fees. Click here for all available online music services.

• Apple Music: Apple Music is a subscription-paid streaming service with over 60 million songs ad-free. Easily find your favorite artists, discover new music, listen to curated playlists, and get exclusive artist content and interviews. Follow lyrics while you listen, tap ahead, or sing along with lyrics view. Enjoy at home, in the car, and across all your devices.
• Amazon Music: here are three tiers of access to Amazon Music on Sonos. Amazon Music Unlimited customers can stream tens of millions of songs and listen to curated playlists, stations, and weekly new releases, available to Prime Members for only $7.99/month (non-Prime price: $9.99/month). Amazon Music HD is a new tier of premium quality music with more than 50 million songs in High Definition (HD). At just $12.99/month for Prime members or $14.99/month for Amazon customers, Amazon Music HD makes high quality, lossless audio accessible to all music fans. Existing Amazon Music Unlimited subscribers (Individual or Family Plan) can upgrade to Amazon Music HD for an additional $5/month. Prime Music is a curated, on-demand, ad-free music streaming benefit featuring a growing selection of two million songs, and personalized recommendations at no additional cost with your Amazon Prime Membership.
• Deezer: Deezer is a subscription-paid online music service that offers you over 43 million songs at your fingertips. Stream almost any song you can think of or kick back with an endless selection of playlists, mixes, albums. You'll need a Deezer Premium+ or Deezer HiFi account to use Deezer with Sonos.
• Napster: Napster is a paid online music service that provides you with a music collection complete with millions of songs, entire albums and artist hits spanning the decades. Enjoy more than 30 million tracks at 320kbps AAC.
• Qobuz: Qobuz is a paid streaming service that gives you access to more than 40 million tracks. Discover new artists and albums with selections and playlists from musical experts. On Sonos you can stream 320kbps MP3 streams through the Qobuz Premium Subscription or experience high-quality FLAC (16-bit /44.1kHz) streaming using the Qobuz Hi-Fi Subscription.
• Spotify: Spotify is an online music service giving users the ability to stream music on demand to Sonos using Spotify's unique technology. Spotify and Sonos will allow access to all of your existing Spotify playlists and their entire catalog. Sonos supports Spotify Free and Spotify Premium accounts. A Spotify Free account allows you to search for Spotify artists, albums, and playlists in the Sonos app. When listening to music with a Spotify Free account, you’re limited to six song skips per hour.
• Tidal: Tidal streams music in lossless, high fidelity audio quality, ensuring the best sound experience possible. Discover new and old favorites with news, recommendations, curated playlists, moods and genres. All with High Fidelity Streaming. Create and edit your own playlists with more than 25 million tracks available. Tidal offers two paid streaming platforms - Tidal HiFi (Lossless Flac 16-bit/44.1kHz) or Tidal Premium (AAC 320kbps).
• YouTube Music: YouTube Music is a free or subscription-paid online music service that allows you to easily find what you're looking for and discover new music. Get playlists and recommendations served to you based on your context, tastes, and what's trending around you.

AirPlay 2 with Siri: AirPlay 2 is an advanced and easy-to-use wireless multiroom audio platform for iTunes, Apple Music, and other compatible Apple iOS apps. With AirPlay 2 you can play any audio from your Apple iOS device (running iOS 11.4 or later) or Mac computer (running OS X 10.13.2) on select Sonos components and other compatible AirPlay 2 speakers throughout your home. You can choose to play audio in one room, play the same audio in grouped rooms, or play the same audio in every room. If you are an Apple Music subscriber, you can even play different music in different rooms (you can control and group directly from Apple's Music App and Home app on your Apple iOS device). You'll be able to ask Siri-enabled devices (like your Apple iPhone, iPad, or Watch) to control playback of your Apple Music content on the Sonos unit. You can even watch videos and movies from YouTube and Netflix on your compatible Apple iOS device or Mac computer with perfectly synced audio on the Sonos product.

• Compatible AirPlay 2 Devices From Sonos: Sonos Arc, One (Gen 1/Gen 2), One SL, Five, Play:5 (Gen 2), Amp, Port, Playbase, and Beam (Gen 1/Gen 2) all support AirPlay 2.
• Non-Compatible AirPlay 2 Devices from Sonos: Even though the Sonos Play:1, Play: 5 (Gen 1)Play:3, Playbar, Connect, Connect:Amp, and ZonePlayer are not AirPlay 2 compatible, you can still group these Sonos devices with an AirPlay 2 compatible Sonos product (listed above) to unlock AirPlay for your entire system.

Music Libraries: Sonos supports playback of music from any computer or network-attached storage (NAS) device on your home network where you have shared music folders. Sonos can play music stored on up to 16 PCs, Macs or NAS (Network Attached Storage) devices on your home network, supporting the most popular audio formats. Sonos indexes your music folders so you can view your music collection by categories (such as artists, albums, composers, genres, or tracks).

• File Formats: Sonos supports the following audio file formats - MP3 (compressed), WMA (compressed), AAC (MPEG4), Ogg Vorbis, Audible (format 4), Apple Lossless, FLAC (lossless), WAV (uncompressed), and AIFF (uncompressed).
• Sampling Frequencies: Supported sampling rates include 16kHz, 22.5kHz, 24.0kHz, 32.0kHz, 44.1kHz, and 48kHz.

Analog Input: The Sonos Port is equipped with a stereo analog RCA input for connecting an external line-level device, such as a CD player. If you want to connect a turntable, you'll need a turntable with a built-in phono preamplifier or an external phono preamp (sold separately - see Accessories Tab). This analog input can be distributed throughout a Sonos multiroom audio eco-system.

Intuitive Control

Sonos S2 App: Sonos S2 is a new app (for Apple iOS 14.0+ / Android OS 8.0+ / Fire OS 7.0+ / Mac OSX 10.11+ / Windows 8+) that powers the next generation of Sonos products. The Sonos S2 app offers new features, usability updates, and more personalization moving forward. The updated app makes it even simpler for you to search for content, control the sound, and personalize your listening experience. Use the Sonos S2 app to setup your Sonos speaker system, control your Sonos speaker system, stream your favorite internet radio stations and online music services, access local network music libraries, and personalize your speaker system.

• Setup: A compatible Apple iOS or Android device running the Sonos Controller app is required to set up a new Sonos system or add new products. Sonos also supports macOS and Windows versions of the Sonos Controller App, but certain system management features such as setting up a new Sonos system or adding new products, are not available.
• Control: With the Sonos S2 app, you can control all your Sonos speakers, soundbars, and components. Adjust volume levels, group products to play in sync, or play something different in every room.
• Music & Radio: The Sonos S2 app brings together hundreds of internet radio stations and online music services.You also get access to local network music libraries on your smartphone, tablet, laptop, or desktop computer. Use the app to browse all your music, podcasts, radio, and audiobooks all in one place.
• Personalized Settings: Save favorites and room groups to My Sonos to get to the music faster, create alarms so you can wake up to a favorite radio station or playlist, filter out explicit content, and more.
• Security: Enhanced protocols, including support for elliptic curve cipher suites in SSL/TLS, keep your system safer and your data more secure.

Sonos Voice Control: Using a voice-capable Sonos speaker (like the Sonos One - sold separately), you can operate the Sonos Port with Sonos Voice Control. Sonos Voice Control was created purely for listening on Sonos and delivers fast, accurate hands-free control of your music and your Sonos system with privacy. With Sonos Voice Control, you can use voice requests to control Sonos products in your system. You can even ask Sonos Voice for multiple things on multiple Sonos products at once. Sonos Voice Control finds the music you want to listen to by processing requests entirely on the device for faster response times and effortless follow-ups. All you need is one "Hey Sonos" and you can follow up without the need for additional wake-words. Just like the Sonos app, you can control music and speakers in any room, easily play music around the home, save and like your favorite songs to your personal music library, and more.

• Music Control: Use Sonos Voice Control to play songs, artists, albums, playlists, genres, and more from select music services (including Sonos Radio, Apple Music, Amazon Music, Deezer, and Pandora). More services may be available in the future (no ETA). Click here for a complete list of the latest compatible music services. You can also use Sonos Voice to adjust the volume level, pause your music, skip tracks, and more. You can even ask Sonos Voice to "Like" or "Unlike" a song, as well as get information on what song is playing. In addition, you'll be able to group/ungroup rooms, plus move your music from one room to another.
• Home Theater Control: Sonos Voice can also be used to turn your compatible Sonos soundbar and HDMI-ARC connected TV on or off, as well as switch between Night and Speech enhancement modes.
• Total Privacy: Designed with privacy at its core, Sonos Voice Control processes requests entirely on the device. No audio or transcript is sent to the cloud, stored, listened to, or read by other parties.

Works With Alexa & Google Assistant: You can control your Sonos system through any Alexa or Google Assistant enabled device (including the Sonos One, Amazon Echo, and Google Home - all sold separately). Specific control functions will vary by digital voice assistant.

• Amazon Alexa: You can ask Alexa to play music on a specific Sonos device in a specific room of your home from these featured music services (Apple Music, Amazon Music, TuneIn, Pandora, iHeartRadio, SiriusXM, & Spotify). Using the Alexa app, you can group your Sonos products and your Alexa-enabled devices together. This makes it easier for Alexa to control your Sonos products based on which room or area they are in. You can pause, resume, and skip songs, as well as change the volume with all Sonos compatible online music services. Click here for more information regarding Amazon Alexa on Sonos.
• Google Assistant: You can ask Google to play music on a specific Sonos device in an specific room of your home from these featured music services (Spotify, YouTube Music, Pandora, Deezer, Tidal, TuneIn, and iHeartRadio). You can pause, resume, and skip songs, as well as change the volume with all Sonos compatible online music services. Click here for more information regarding Google Assistant on Sonos.

12V Trigger Out: The Sonos Port is outfitted with a 12V trigger output that consists of a 3.5mm jack. This 12V trigger output automatically turns on your connected amplifier to more reliably initiate playback.

Automatic Updates: The Sonos Port supports free automatic software updates so you will always have the newest features and music services to enjoy. Simply register the One and Sonos will automatically notify you when software updates are available through the Sonos Controller app. By simply pressing one button your system updates itself. The Sonos Port must be connected to your home network and the internet for automatic software updates.

System Requirements

Internet Service Provider: You'll need a high-speed, wired internet service provider connection such as cable, fiber, or DSL. Wireless internet connections such as satellite, mobile hotspots, or 4G LTE routers can experience delays between the internet connection and Sonos and are not supported. Using these types of connections can cause music to not play, skip, or cut out completely.

Network Requirements: Sonos can be configured in either a wireless or wired network setup. This article will cover the differences between the two setups and provide recommendations for which setup best suits your system and home network.

• Wired Setup: A Sonos system operating in a wired setup will require one of your Sonos products to remain connected to the router via Ethernet cable at all times. If your Sonos system is in a wired setup and you use a WiFi mesh router with multiple wireless nodes, we recommend wiring your Sonos product directly to the primary wired mesh node. Avoid wiring any Sonos products to the wireless mesh nodes. If you are on a corporate or advanced network, it must not block Spanning Tree Protocol (STP).
• WiFi Setup: All Sonos products can connect to wireless routers or access points that support 802.11b/g WiFi over 2.4GHz. Additionally, all Sonos products can connect to WiFi networks that use WPA1 and WPA2 Personal security standards, as well as unsecured WiFi networks. When running S2 software, many newer Sonos products support faster WiFi modes (including 802.11ac) and will connect to them when possible. You can learn more about which Sonos products support which WiFi modes, standards, and protocols in this article.

Sonos S2 Controller App: Sonos offers a Sonos Controller app for for Apple iOS 14.0+, Android OS 8.0+, Fire 7.0+Mac OSX 10.11+, and Windows 8+. The Sonos S2 is a new app and operating system (OS) that powers the next generation of products and experiences. In addition to new features, usability updates, and more personalization moving forward, Sonos S2 enables higher resolution audio technologies for music and home theater.

• Sonos Controller App Requirements: A compatible Apple iOS or Android device running the Sonos Controller app is required to set up a new Sonos system or add new products. Sonos also supports macOS and Windows versions of the Sonos Controller App, but certain system management features such as setting up a new Sonos system or adding new products, are not available. See this article for more details.
• Sonos Product Compatibility: Most Sonos products are compatible with S2. Some older Sonos "legacy" products will not support the advances of S2 due to their memory and processing power. The older Sonos "legacy" app is referred to as the Sonos S1 app. This article will break down which Sonos products are compatible with Sonos S2 vs S1.
• Split Sonos System: If you have both, older "legacy" Sonos products and newer Sonos products, you have the option to create two separate eco-systems - one that will be controlled with the older Sonos S1 controller app and the other that will be controlled by the newer Sonos S2 controller app. Read this article for more details.

Supported Audio Formats: Sonos supports a variety of audio formats for its 2ch stereo products and multichannel home theater speakers.

• Music Libraries: Sonos supports the playback of your own music library stored on a NAS drive or personal computer. Sonos supports compressed & uncompressed audio formats when streaming from your local music library. Sonos systems support mono (1-channel) or stereo (2-channel) audio files with sample rates up to 48kHz. Sonos music libraries are limited to 65,000 tracks. The memory limit can be reached prior to 65,000 tracks if there is a large amount of metadata. For example, classical music tracks tend to have a large amount of metadata and can use up the available memory before the 65,000 track limit is reached. If you have more than 65,000 tracks, you can use Plex with Sonos as an alternative.
• Home Theater: Sonos home theater speakers are compatible with a wide range of television and movie soundtrack audio formats. Compatible audio formats will vary by Sonos home theater speakers and by connection method to your TV. While most TVs are compatible with Sonos home theater speakers, some may need additional configuration or may not work with Sonos. This article will describe some basic requirements when using Sonos speakers with your TV.
