Q&A: Kicker-47KEY200-4 compact 4-channel amplifier
Answers to common questions about this Kicker amplifier
This content was created with the help of AI to summarize our data, then edited and revised by a Crutchfield writer.
The Kicker KEY200.4 4-channel car amplifier combines a compact 4-channel amplifier with an automatic DSP sound processor into a single comprehensive package. Using Kicker's KEY Auto Setup technology, it automatically tunes your system with a 40-band EQ, crossover adjustments, and time alignment tailored to your vehicle. It's especially popular with customers who want dramatically better sound while keeping their factory radio.
Read our Car Amplifier Buying Guide for shopping tips.

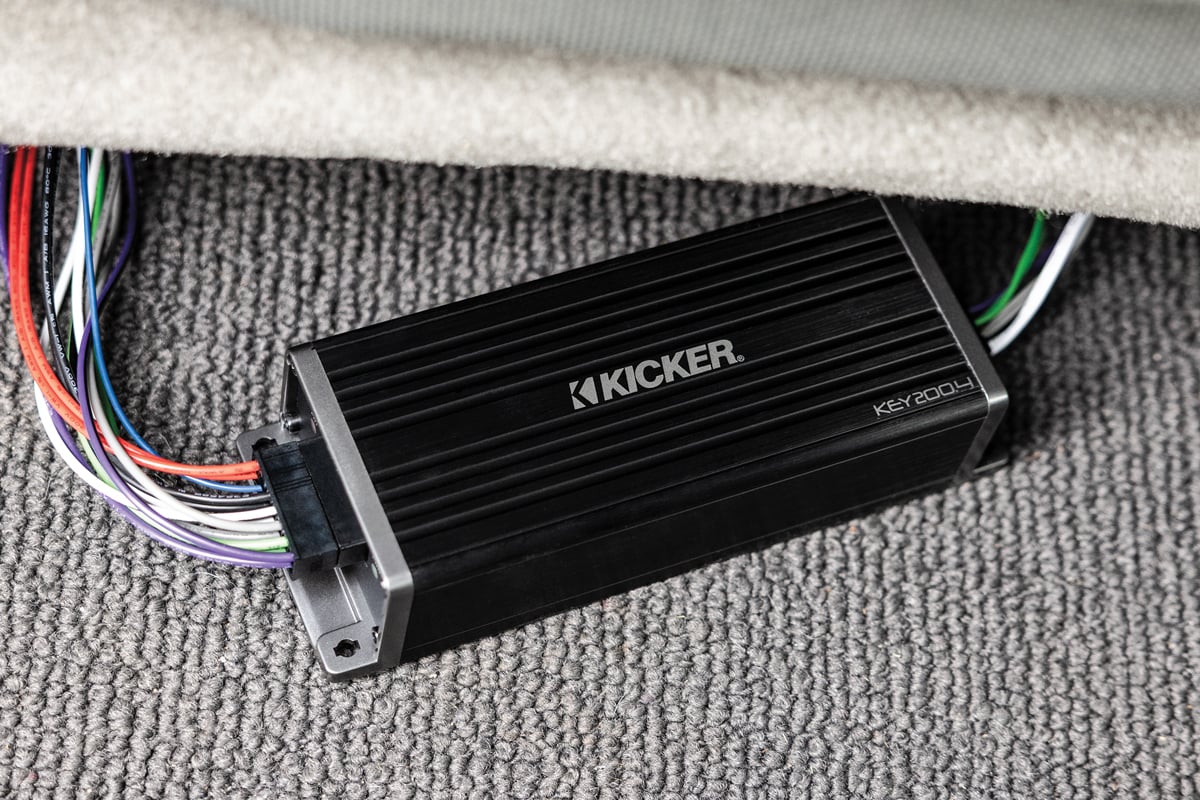

Will the Kicker KEY200.4 fit behind my dash or under a seat?
Probably. One of the attractive features of the KEY200.4 is its compact size. Measuring just 7.375" wide, 1.6875” high, and 2.75" deep, this amplifier is small enough to fit in many locations where traditional amplifiers often won't fit. Of course, it’s a smart idea to measure where you’re considering installing the amp before you purchase it.
Customers frequently mention the amp's small footprint as one of the reasons installation was easier than expected, especially in vehicles with limited mounting space. The amplifier’s cool-running Class D design ensures heat buildup won’t be a problem in tight quarters.
Quick take
- compact chassis design
- dimensions: 7.375"W x 1.6875”H x 2.75"D
- great for behind-dash and under-seat installations
- runs cool thanks to efficient Class D technology
Can the Kicker KEY200.4 be used with a factory stereo?
Absolutely. In fact, one of the most common themes in customer reviews is how effectively the KEY200.4 integrated into their existing system. Kicker has incorporated some advanced design features to ensure this amp can work with almost any factory system:
- speaker-level inputs and FIT2™ (Fail-Safe Integration Technology) let you connect the amp to the speaker wires of almost any system, whether it’s low- or high-powered.
- DC offset sensing turn-on automatically turns the amp on when it detects a signal.
- Radio Detect circuitry prevents factory stereo systems from shutting off because it detects an incomplete circuit.
Quick take
- integrates well with factory systems
- speaker-level inputs included
- FIT2™ integration technology
- DC offset turn-on capability
- Radio Detect maintains factory radio functionality
Does the Kicker KEY200.4 make a factory stereo sound better?
Many customers buy an amplifier to make their factory system sound better, and they agree that the KEY200.4 does just that.
Reviewers frequently describe the amplifier as transforming their factory audio systems, specifically how they hear details in their music they hadn’t noticed before. The combination of additional power and automatic DSP tuning helps improve clarity, vocal placement, soundstage, and overall balance without replacing the factory head unit.
Quick take
- popular factory-radio upgrade to a factory radio
- improves clarity and detail
- enhances soundstage and imaging
- adds amplifier power and DSP correction
Do I need a KeyLOC line output converter with the Kicker KEY200.4?
In most installations, no. The KEY200.4 includes both RCA preamp inputs and speaker-level inputs. Because it can accept speaker-level signals with varying voltages directly from a factory radio, many users can install the amplifier without adding a separate line-output converter.
Quick take
- speaker-level inputs built in
- RCA inputs included
- often eliminates the need for a separate LOC
- designed for factory-system integration
What gauge wiring kit do I need for the Kicker 47KEY200.4?
Kicker recommends using a 10-gauge or 12-gauge amp wiring kit. This is not included with the amplifier. If you’re connecting the amp to an aftermarket radio, be sure to get RCA cables as well.
We frequently recommend the Crutchfield CK12 12-guage wiring kit for amplifiers like this one. You can also check out
Quick take
- 10- or 12-gauge amp wiring kit recommended
- wiring kit sold separately
- purchase RCA patch cables if connecting to an aftermarket stereo
How do I use the Kicker 47KEY200.4 auto-tuning feature?
The KEY200.4’s AI-driven DSP processing will automatically tune your system for the best sound in your vehicle.
During installation, connect the included microphone, place it on the driver's headrest, play a pink-noise test signal, press the activation button, and leave the vehicle. For best results, Kicker recommends using an uncompressed pink-noise source and disabling factory noise-canceling or active-noise-enhancement systems before calibration. You can download pink noise test tones from Kicker's website. The amplifier then automatically adjusts the sound using:
- 40-band equalization
- time alignment
- speaker sensitivity matching
- crossover settings
This process creates a realistic soundstage centered around the driver's listening position.
Quick take
- automatic DSP calibration
- microphone included
- adjusts: 40-band EQ, crossover points, and time alignment
What manual controls are included on the Kicker 47KEY200.4?
Besides the auto-tuning feature, the amplifier includes an impressive amount of tuning flexibility.
An 8-position DIP-switch matrix lets you enable or disable Kicker EQ, time alignment, Auto Compression, Bi-Amp mode, fader options, and auto turn-on settings, as well as letting you select high-pass filters. A gain control and limiter indicators help optimize performance and prevent clipping.
Quick take
- DIP-switch settings for:
- auto turn on
- compression
- time delay
- fader
- Auto EQ
- bi-amp mode
- selectable high-pass filters
- gain controls and limiter LED indicators
How much power does the Kicker 47KEY200.4 deliver per channel?
The KEY200.4 delivers 50 watts RMS to each of its four channels at 4 ohms. According to Crutchfield's product research, that's more than twice the power of many aftermarket receivers and several times the power available from many factory radios.
Quick take
- 50 watts RMS x 4 at 4 ohms
- CTA-2006 compliant
- class D amplifier design
- delivers substantially more power than most factory radios
Can the Kicker 47KEY200.4 be bridged?
No. The KEY200.4 is a non-bridgeable amplifier designed for four-channel operation. It requires a minimum impedance of 4 ohms per channel. As noted in the next section, the KEY200.4’s Bi-Amp mode lets you use the amp to power a single pair of component speakers instead of a typical four-speaker setup.
Quick take
- non-bridgeable design
- four-channel amplifier
- minimum impedance: 4 ohms per channel
What is Bi-Amp mode, and when should I use it?
Bi-Amp mode allows the KEY200.4 to actively power a pair of component speakers using all four amplifier channels.
During KEY Auto Setup, the amplifier automatically applies crossover settings for woofers and tweeters, helping optimize performance without relying on passive crossovers.
Several of our customers specifically praised Bi-Amp mode when used with component speaker systems.
Quick take
- uses all four channels to power a pair of component speakers
- automatic crossover configuration
- optimizes woofer and tweeter performance
How do customers rate the sound quality of the Kicker 47KEY200.4?
Customer feedback is overwhelmingly positive.
Across 236 customer reviews, the KEY200.4 maintains an average rating of approximately 4.7 out of 5 stars. Reviewers frequently mention improved clarity, stronger imaging, better vocal placement, and a noticeably wider soundstage after running the KEY Auto Setup process.
Many customers describe the amplifier as one of the most impactful upgrades they've made to their factory audio system.
Quick take
- 236 customer reviews with an average rating of 4.7 out of 5
- improved clarity and detail
- better imaging and soundstage
- frequently praised for factory-system upgrades
What makes the KEY200.4 different from a traditional compact amplifier?
Most compact amplifiers simply add power. The KEY200.4 adds power and automatic DSP processing. In addition to 50 watts RMS per channel, it also measures and corrects your system's performance using automatic equalization, crossover tuning, and time alignment.
Quick take
- amplifier and DSP in one chassis
- automatic system tuning
- time alignment
- 40-band EQ
- vehicle-specific calibration
What's the warranty on the Kicker 47KEY200.4?
The KEY200.4 includes a 2-year warranty from Kicker. When purchased with a qualifying Kicker wiring kit, the warranty extends to 3 years.
Quick take
- 2-year warranty
- extends to 3 years with qualifying Kicker wiring kit
- manufacturer-backed coverage
Is the Kicker 47KEY200.4 right for me?
The Kicker 47KEY200.4 combines 4 channels of power with sophisticated automatic sound controls. If you’re looking for an amp that will improve the sound of your factory or aftermarket system that fits almost anywhere, it may be just what you want. Contact a Crutchfield Advisor for personalized recommendations, installation guidance, and factory-system integration advice.
