2003-2004 Mercury Marauder

How to upgrade the stereo system in your Marauder

mercury marauder

In brief: This Crutchfield Research Garage article gives you an overview of your Marauder's stock stereo system and your aftermarket upgrade options. We'll tell you all about:

Then, use our vehicle selector to find the gear that will fit your Mercury.

Overview of the Mercury Marauder

Oh, to have been a Big Three engineer during the height of the muscle car era. Go to work, grab some coffee, and get busy figuring out new ways to transform sleepy suburban cruisers into tire-melting monsters. Not a bad way to spend the day.

Those days are long gone, of course, but the idea of shoving a big motor into a cheap car for the engineering (and marketing) fun of it never really went away.

Such is the case with the Mercury Marauder. No one really needed a gargantuan sedan that handled like a sports coupe, but Mercury built it anyway. The Marauder is an early-aughts take on the muscle car concept — big, fast, responsive, mean-looking, and kind of rare. With all that going for it, it doesn't have to make sense to everybody. You get it or you don't.

If you're still driving and enjoying your Marauder, good for you. If you're planning to upgrade the stereo, that's even better. There are plenty of ways to boost your sound without making permanent modifications to what's rapidly becoming a collectable car.

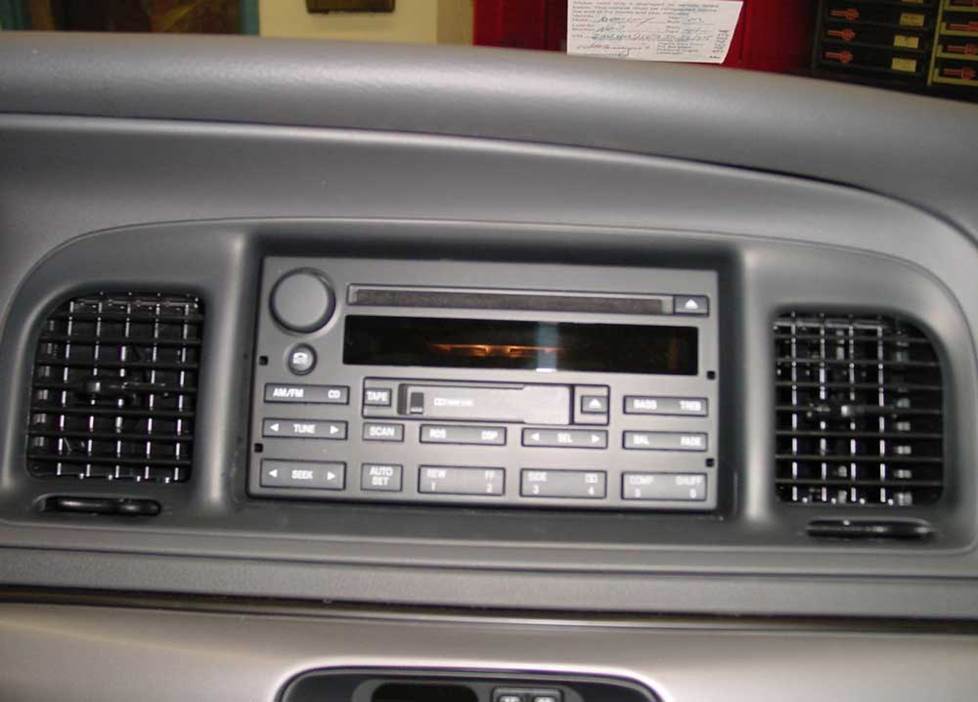

mercury marauder radio

The Marauder's factory radio is nothing fancy (Crutchfield Research Photo)

The factory stereo system

The Marauder was equipped with the same basic AM/FM/CD/Cassette receiver found in almost every Crown Vic or Grand Marquis ever made, but this big Mercury has a 6-3/4" subwoofer in the trunk for a little more thump. Everything on the Marauder is easy to reach and replace, plus you won't have to subject the car to drilling and damage.

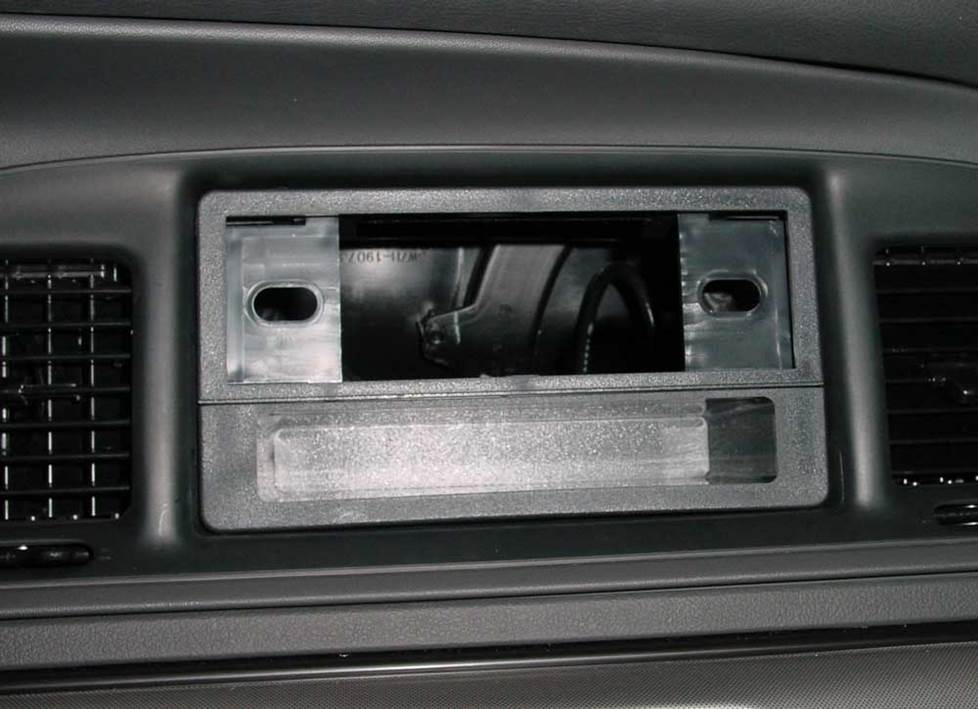

mercury marauder radio kit

This mounting bracket is included at a nice discount with your Crutchfield order (Crutchfield Research Photo)

Removing the factory radio

Nearly any single DIN (2" tall) stereo will fit in the Marauder's dash, but because of the dash configuration, stereos with flip-out retractable monitors are not a good option. Alas, the dash overhang above the radio will get in the way.

To remove the factory receiver, you'll need to use the metal DIN tools that are included with your stereo purchase. Insert the tools approximately one inch into the holes in each side of the radio until you hear a click from each side. Be gentle during this process, because excessive force will damage the retaining clips. Once you've heard the magic click, spread the tools apart slightly, pull out the radio, disconnect the wiring harnesses, unplug the antenna and remove the radio.

That's the old radio out. Now it's time to prep the new stereo. The first step in this process involves attaching the new receiver to the mounting kit that's included at a deep discount with your Crutchfield stereo purchase. Next, connect your Crutchfield wiring adapter (also discounted) to the receiver, following the instructions included with the adapter.

Detailed stereo and speaker removal instructions

MasterSheet image
With step-by-step disassembly instructions and plenty of up-close, detailed photos, our exclusive Crutchfield MasterSheet™ takes the guesswork out of removing the factory stereo and speakers. It's free with your Crutchfield order, or you can purchase one separately for just $9.99.

In order to make the new stereo work with the factory system, you'll also need to install a 12-volt to 5-volt converter. Otherwise, you'll hear an annoying (and potentially damaging) "pop" from the factory subwoofer every time the new stereo turns on.

Hold the receiver assembly near the dash and connect the receiver wiring adapter to the factory harness. Plug the antenna lead into the back of the receiver, then slide the whole assembly into the dash until it snaps into place. Test receiver operation, then snap the DIN trim ring into place.

Tools needed: DIN tools

Read our Car Stereo Buying Guide for shopping tips and advice.

Shop for car stereos that fit your Mercury Marauder

Steering wheel audio controls

If you want to keep the steering wheel audio controls in your Marauder, we offer adapters from either PAC or Axxess. When you enter your vehicle information and choose your new stereo, you'll be directed to the right model.

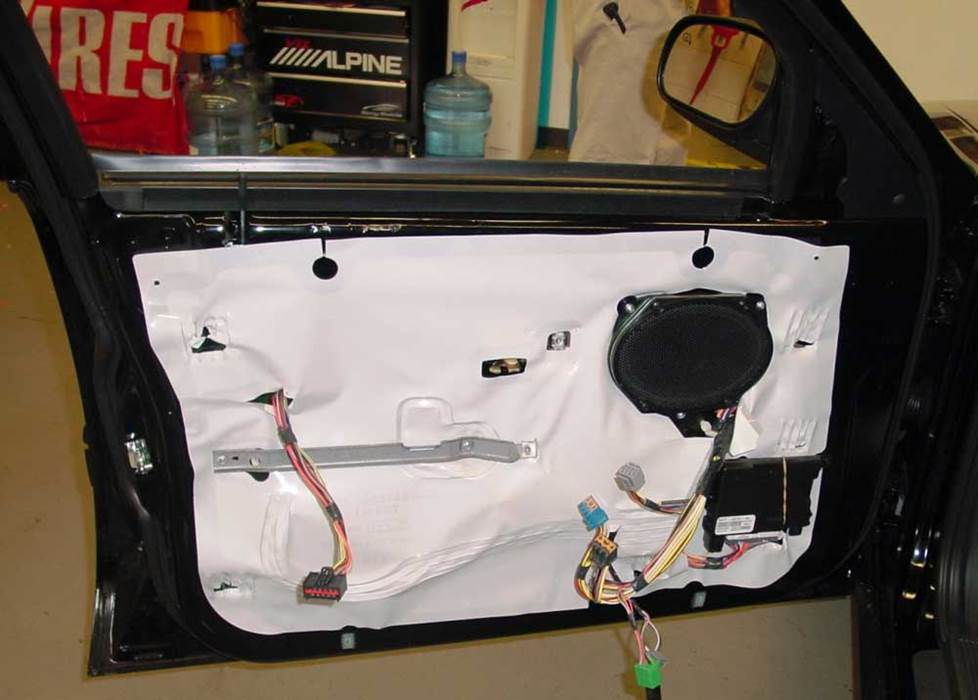

mercury marauder front door speakers

You'll need to remove the door panels to access the front speakers (Crutchfield Research Photo)

Removing the factory speakers

With the exception of the subwoofer, the Marauder's stock speaker system is basically the same stuff you'd find in a Crown Vic or Grand Marquis. In other words, it's really not all that impressive.

Replacing the front door speakers

The stock front speakers on all Marauders were Ford's 6"x8" models. You can replace them with same-size or 5-1/4" speakers. You'll need a mounting bracket for the smaller ones, and it's included at a deep discount with your Crutchfield speaker purchase.

Again, the process is relatively uncomplicated. You'll start by prying out the top edge of the sail panel to release the retaining clip. Lift the panel and remove it, but take good care of it, because this is an excellent spot for a tweeter if you're installing component speakers.

Moving down the door, pry off the screw cover in the door release assembly and remove the exposed Torx T30 screw. Next, pry around the front and side edges of the power options switch panel to release it, then lift it and pull it toward the front of vehicle. This will give you the space to disconnect the wiring harnesses and remove the panel. Underneath the panel is a 7mm screw, which you'll also need to remove.

Next, remove two 7mm screws from the bottom edge of the door panel, then lift the panel out a bit, disconnect the wiring harnesses, and store the panel in a safe, dust-free place.

The factory speaker is secured by four 5mm screws. Remove them, disconnect the speaker, then connect the new speaker's wiring adapter to the car's speaker harness and secure it using the screws you just removed. Be sure the speaker is working before you put the door back together.

Tools needed: Panel tool, Torx T30 driver, 5mm and 7mm sockets, ratchet and extension

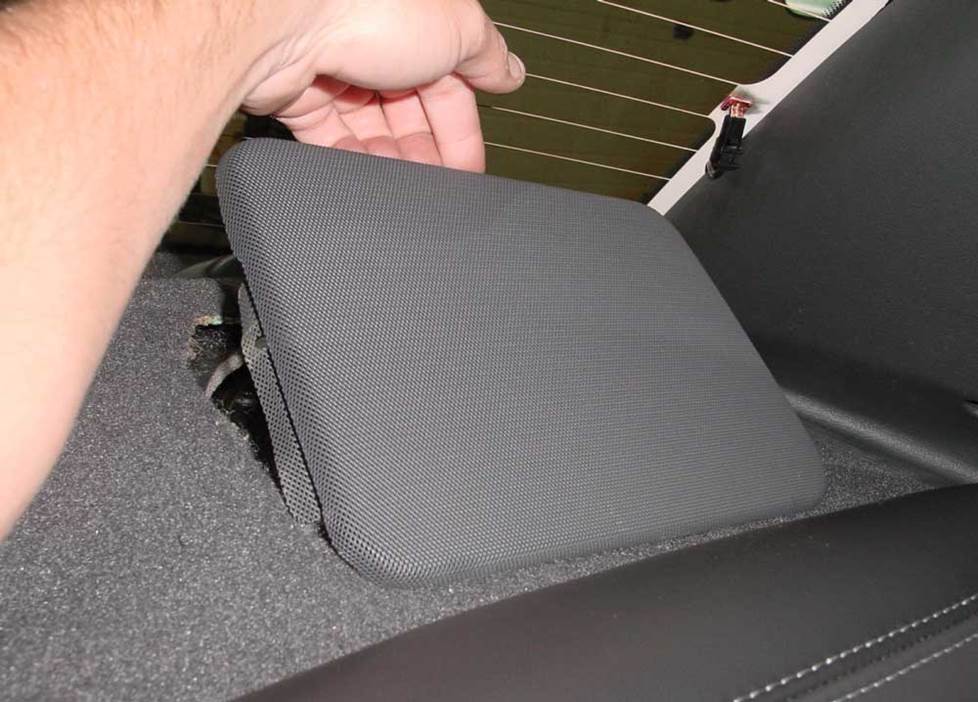

mercury marauder rear deck speakers

The top-mount rear deck speakers are easy to work with (Crutchfield Research Photo)

Replacing the rear deck speakers

The factory 6"x8" speakers can be replaced with same-size units or 5-1/4" speakers. You'll need a mounting bracket for the smaller ones here, too, and it's included with your purchase.

Pry up the speaker grille then remove the four Phillips screws securing the speaker. Pull it out, disconnect the harnesses, and put it aside. Connect the replacement speaker's adapter to the vehicle speaker harness, then secure the new speaker with the screws you just removed. Make sure it's working, then replace the grille.

Read our Car Speakers Buying Guide for more information.

Shop for speakers that fit your Mercury Marauder

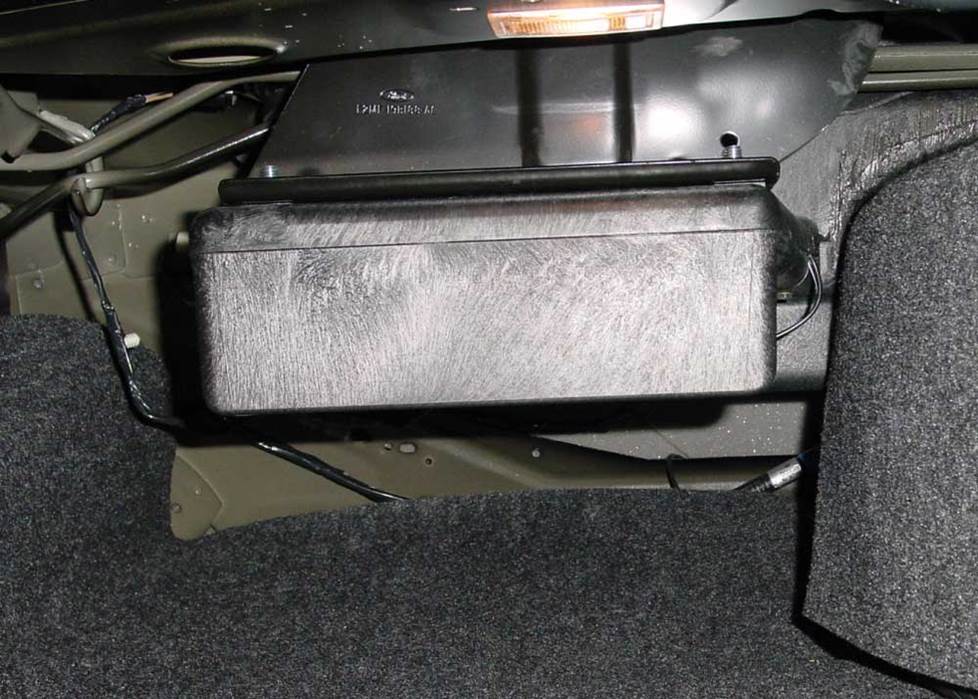

mercury marauder subwoofer

The sub is attached to the underside of the rear deck (Crutchfield Research Photo)

Bass in your Marauder

The stock subwoofer is a 5-ohm, 6-3/4"unit mounted on the underside of the rear deck. A variety of aftermarket 6-3/4" woofers will fit neatly into the space. For maximum performance, your best bet is to replace both the sub and the sub amp at the same time.

If you're doing your system in stages and getting to the sub last, you should know that the factory stereo only sends 5 volts to the stock sub amp and as a result, when an aftermarket stereo is installed, there may be a turn on/off "pop" from the subwoofer. We mentioned this up top under the radio section, but we're repeating it here because it's important. If you're keeping the factory sub, you'll need to install a 12-volt to 5-volt converter when you install the new stereo.

Replacing the factory sub is relatively simple. You'll need to remove the spare tire, then wiggle into the trunk to remove the four 12mm nuts securing the subwoofer enclosure. Disconnect the wiring harness and remove the enclosure.

Remove the four Torx T20 screws around the foam area, then lift the foam and remove it. Pry the speaker out of the enclosure, disconnect the speaker wires, and remove the speaker. Connect the factory speaker wires to the new sub, then secure it with the screws previously removed. Test it out, then reinstall the enclosure.

Tools needed: Panel tool, Torx T20 driver, 12mm socket, ratchet and extension

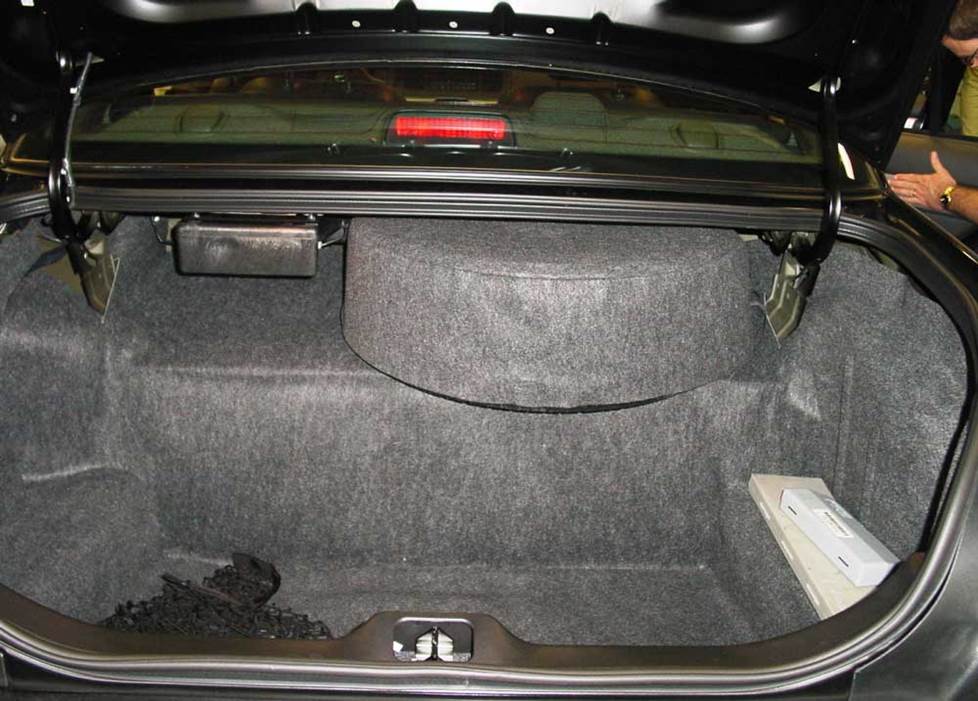

mercury marauder trunk

This is pretty much the opposite of a "spacesaver" spare. (Crutchfield Research Photo)

Other subwoofer options

With a big ol' car like this one, you have plenty of room for even more bass, if you want it. And you should, because a new sub adds depth and clarity to any type of music, from classical to country.

Despite the presence of a full-size spare tire, the Marauder's trunk offers tons of space. If you're all about power and volume, you have plenty of room (40" W x 15" H x 26"/29" D) to add a subwoofer box and enough amplifiers to feed a big-time system. Even if you want to keep your luggage space and a stock appearance, there's still plenty of room for a smaller subwoofer box.

The more subtle option, of course, is a powered sub. You'll get surprisingly healthy performance in a compact package that will leave you plenty of room for suitcases, groceries, golf clubs, and whatnot.

Learn more about building a bass system in our Car Subwoofer Buying Guide.

Pioneer GM-A4704 amplifier

A 4-channel amp will bring out all the details in your music

Other options for your Marauder

Here are a few more ideas for upgrading your Marauder:

Add an amplifier for better sound

No matter what else you do to your audio system, to further improve the sound quality, consider installing a 4-channel amplifier for your speakers. That will let you get the best sound from your music and be able to hear it over the roar of the Marauder's engine. And if you install a new subwoofer, you'll also need to install a mono amplifier to power it, as well. Learn more about adding amps to your system in our Car Amplifier Buying Guide.

Sound deadening

Even if you've been careful about racking up mileage, your Marauder isn't new anymore, so there might be some creaks and rattles. Installing Dynamat in the doors can help seal out noise and seal in sound. If you're installing a sub, lining the trunk with Dynamat will seal in the thump and keep the trunk lid from rattling, too. If you're all about sound, you might want to line the floors, too.

Portable GPS

Just because you can't install a touchscreen nav receiver in your Marauder's dash doesn't mean you have to drive around lost. A portable GPS will give you turn-by-turn directions, traffic updates, and everything you need to make your road trip go smoothly. Plus, when you get where you're going, you can put it in your pocket and use it to find points of interest around town.

Minimal mods

If you want to expand your in-car entertainment options, but don't want to remove your Marauder's stock receiver, you have plenty of options. From Bluetooth connectors, to iPod adapters to SiriusXM satellite radio, there are all kinds of ways to update your sound without changing your car.


Installing a security system in your Marauder isn't easy (security systems rarely are), but it's less complicated than it could be. If you're installing an alarm, you won't need a transponder bypass unless you're also adding remote start.

Let's get started!

Ready to shop? Use our vehicle selector to find the gear that will fit your car or truck. If you have questions, give us a shout via phone, chat, or email
